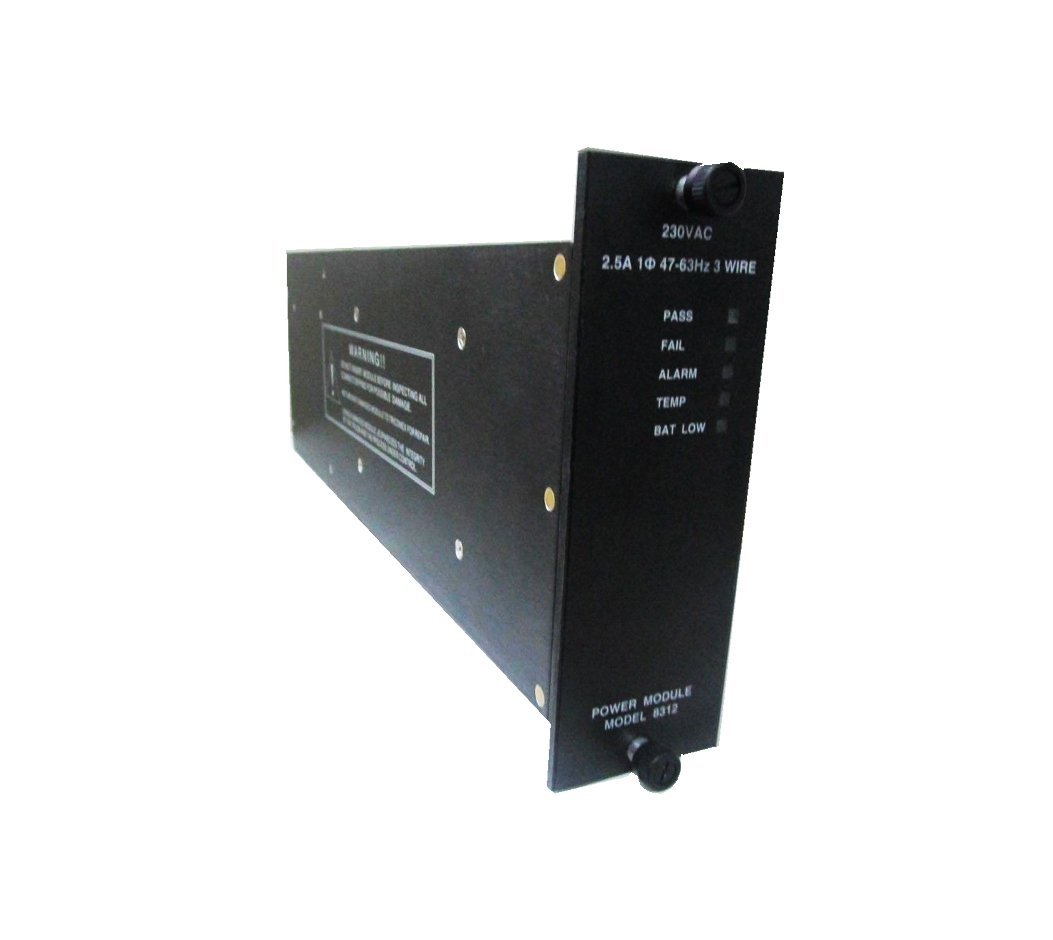

The Triconex 8312 Power Supply Module provides essential logic power to modules in the Main, Expansion, or RXM Chassis. Available in 24 VDC, 115 VAC, and 230 VAC versions, it delivers 175 W at 60°C, ensuring stable operation even in challenging industrial environments. Each chassis contains two power modules for redundancy. This design allows either module to handle the full load independently.
You can replace modules online without interrupting system operation. Terminal strips for grounding, incoming power, and alarm connections are located conveniently at the lower-left corner of the backplane, simplifying maintenance.
Key Features
- Redundant power supply ensures continuous operation even if one module fails.
- Provides 175 W output and up to 27 A at 60°C.
- Maintains stable 6.5 VDC output with ±1% tolerance.
- Supports online replacement without downtime.
- Includes alarm contacts for missing modules, system faults, low battery, over-temperature, and configuration conflicts.
- For ATEX hazardous locations with 230 VAC, use the 8311 24 VDC module for compliance.
Specifications
| Feature | Specification |
|---|---|
| Model | 8312 |
| Chassis Type | Main / Expansion / RXM |
| Nominal Voltage | 230 VAC |
| Input VAC | 185–285 V, 47–63 Hz |
| Input VDC | N/A |
| Fuse Rating | 2.5 A, time-delay |
| Output Power | 175 W at 60°C |
| Output Voltage | 6.5 VDC ±1% |
| Output Current | Up to 27 A at 60°C |
| Output Hold Time | ≥ 20 ms (nominal to 0 V) |
| Electrical Isolation | >1,000 VAC or 1,500 VDC (Input to Output) |
| Input Terminations | Three 12-gauge wires (neutral, hot, protective earth), safety cover |
| Over-Temperature Sensor | Activates at >83°C internal temperature |
| Alarm Contacts | Normally open, normally closed, common; 120 VAC, 1 A max |
| Diagnostic Indicators | PASS, FAULT, ALARM, TEMP, BAT LOW |
Notes
- Both power modules are required for full redundancy.
- Modules support online replacement, allowing maintenance without downtime.
- Use the 8311 24 VDC module for ATEX compliance in hazardous locations.
Details
| Weight | 2.85 kg |
|---|
