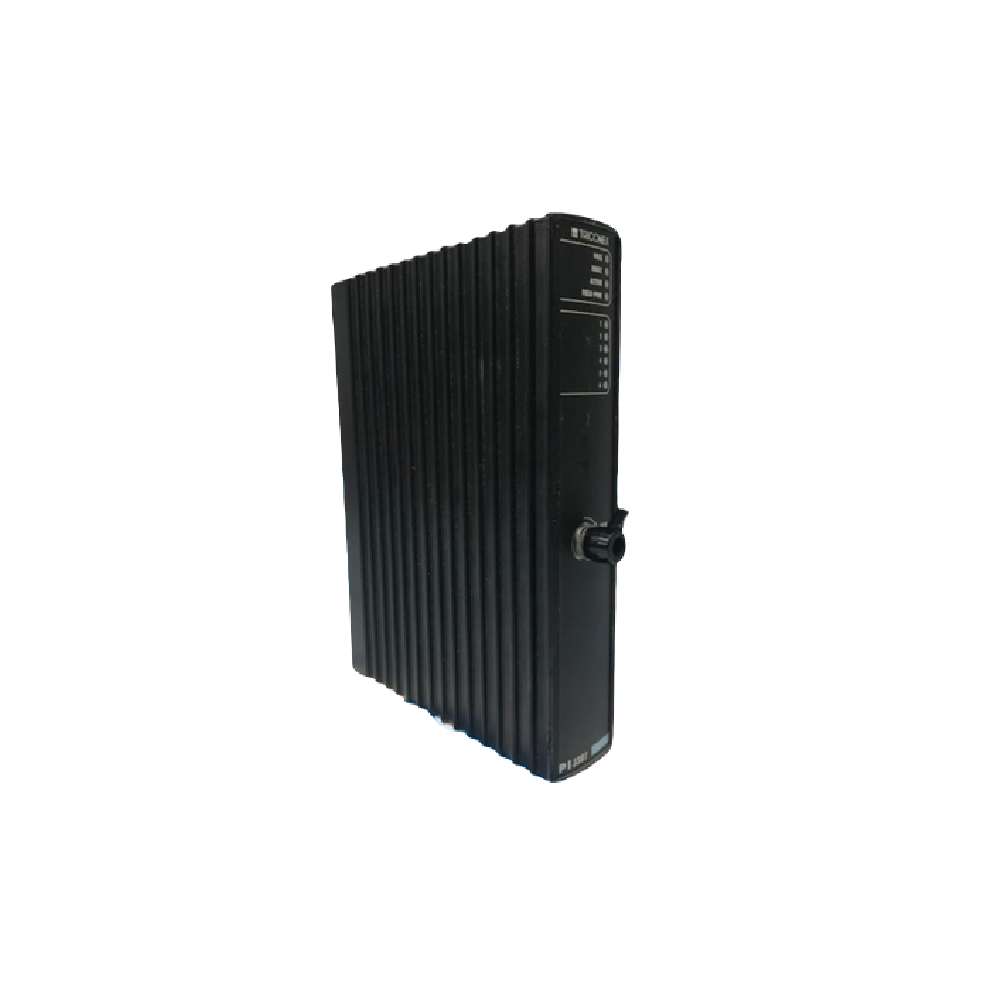

The Triconex PI3381 is a high-performance pulse input module designed for triple modular redundancy (TMR) systems. It provides precise signal measurement and reliable connectivity for magnetic, active, and open-collector sensors.
Flexible Sensor Integration
The PI3381 supports six isolated input channels with a commoned ground. Users can connect differential or single-ended signals, adapting the module to various industrial automation sensors.
Advanced Measurement Capabilities
The Triconex PI3381 offers high-resolution 24-bit measurements and a gear multiple tracking algorithm. It maintains ±0.01% accuracy for high-frequency signals and ±0.1% accuracy for lower-frequency inputs.
Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Triconex |
| Model | PI3381 |
| Type | Pulse Input Module (TMR) |
| Points | 6, channel-isolated, commoned ground |
| Input Type | Differential |
| Sensor Compatibility | Magnetic, active, open-collector |
| Maximum Operating Voltage | ±33 VDC |
| Minimum Operating Voltage | Differential: 500 mV P-P (2–32,000 Hz), 1 V P-P (0.5–2 Hz) |
| Single-ended: 1 V P-P (2–32,000 Hz), 2 V P-P (0.5–2 Hz) | |
| Speed Range | 0–32,000 RPM |
| Input Frequency Range | 0.5 Hz – 32 kHz |
| Duty Cycle | 20–80% or minimum 10 µs pulse width |
| Maximum Continuous Slew Rate | 4,000 Hz/sec with 60 gear teeth |
| Maximum Continuous RPM Slew Rate | 4,000 RPM/sec with 60 gear teeth |
| Number of Gear Teeth | 1–255 |
| Termination Resistor | Baseplate configurable |
| Pull-up Resistor | Baseplate configurable |
| Resolution | 24 bits |
| Absolute Error | ±0.01% (2,000–32,000 Hz), ±0.1% (0.5–2,000 Hz) |
| Measurement Algorithm | Gear multiple tracking |
| Diagnostic | Precision reference test |
| Minimum Scan Update Rate | 20 ms |
| Functional-to-Protective-Earth Isolation | 500 VDC minimum |
| Functional-to-Functional-Earth Isolation | 800 VDC minimum |
Key Features and Highlights
- Supports 6 isolated channels with commoned ground for flexible system integration.
- Compatible with magnetic, active, and open-collector sensors for versatile applications.
- High-resolution 24-bit measurement and ±0.01% accuracy ensure precise signal tracking.
- Configurable termination and pull-up resistors provide customization for specific sensors.
- Handles input frequencies up to 32 kHz and speeds up to 32,000 RPM efficiently.
- Triple Modular Redundancy (TMR) design enhances system reliability in industrial environments.
- Isolation ratings up to 800 VDC prevent interference between functional and protective earth.
Details
| Weight | 0.5 kg |
|---|
