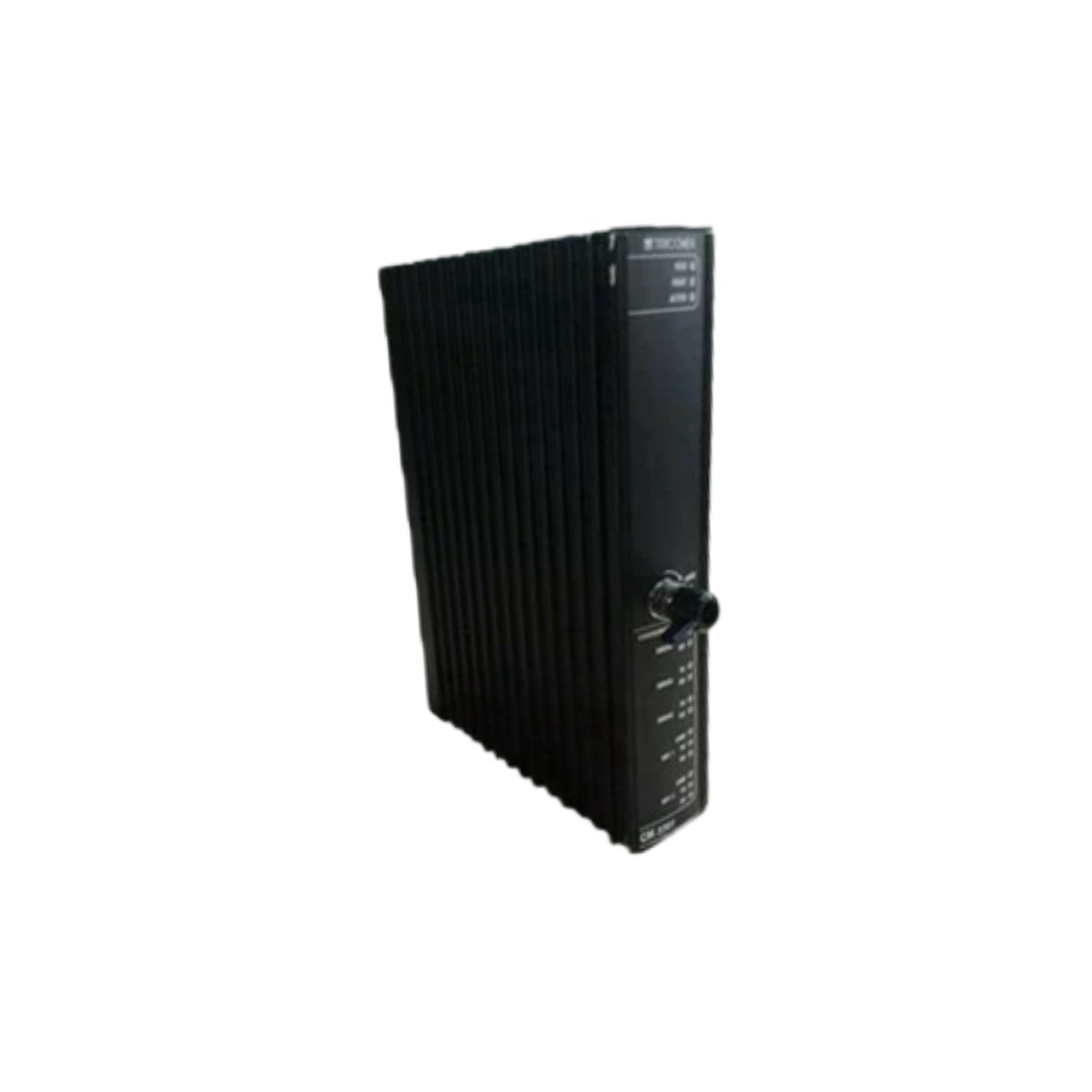

The Triconex FSDO 7400159-030 functions as a Field Signal Distribution Output module for Triconex process control and safety systems. This unit delivers reliable and secure 24V DC output signals to field devices in critical applications. Consequently, it ensures precise and safe control of actuators, solenoids, and indicators in safety-instrumented functions.
Core Technical Specifications
We engineered the Triconex FSDO 7400159-030 for high-performance output delivery in demanding safety applications requiring maximum integrity. The table below details its essential physical and electronic parameters:
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | FSDO 7400159-030 |
| Product Type | Field Signal Distribution Output Module |
| Compatibility | Triconex Process Control and Safety Systems |
| Output Channels | 8 channels |
| Output Voltage | 24 V DC |
| Maximum Output Current | 2 A per channel |
| Hot-Swappable | Yes, for easy maintenance without system shutdown |
| Power Supply | Redundant power inputs for high availability |
| Backwards Compatibility | Compatible with older Triconex systems |
| Module Type | Designed for TMR safety architecture |
| Diagnostic LEDs | Channel Status, Module Health, Fault Indication |
| Operating Temperature | 0°C to +60°C |
| Mounting | Plugs directly into Triconex I/O chassis |
High-Current 8-Channel Output Capability
This module features eight independent output channels, each capable of switching up to 2 Amps continuously. You can directly control solenoids, motor starters, alarm horns, and indicator lights without external relays. Therefore, the Triconex FSDO 7400159-030 simplifies safety system wiring and reduces component count.
Designed for Safety-Critical Applications
Engineers specifically designed the FSDO 7400159-030 for use in safety-instrumented systems demanding high integrity. Its robust output stages and continuous diagnostics ensure fail-safe operation in emergency shutdown functions. As a result, you can deploy this module in SIL-rated loops requiring reliable final element control.
Hot-Swappable Design for Maximum Availability
You can remove or insert the 7400159-030 while the Triconex system remains fully operational and running safety functions. This hot-swappable capability allows for module replacement without process interruption. Consequently, it maintains the high availability expected of critical safety systems.
Redundant Power for Uninterrupted Operation
The module accepts redundant power inputs, ensuring continuous operation even if one power source fails. This design aligns with the high-availability requirements of Triconex process control systems. Hence, the FSDO 7400159-030 contributes to the overall fault tolerance of the safety architecture.
Comprehensive Diagnostics for Enhanced Security
Built-in diagnostics continuously monitor each output channel for open circuits, short circuits, and overcurrent conditions. The module reports faults immediately to the main processor while maintaining safe output states. This security feature ensures that field wiring problems do not compromise safety functions.
Seamless Integration and Backwards Compatibility
You can install this module alongside other Triconex I/O modules in various system configurations. Its backwards compatibility ensures reliable operation in both new installations and legacy system upgrades. Therefore, you can standardize on this output module across multiple generations of Triconex systems.
Versatile Application Suitability
The Triconex FSDO 7400159-030 excels in a wide range of industrial applications. It provides critical outputs for emergency shutdown (ESD) systems in process plants. Additionally, it controls final elements in burner management and turbine control systems requiring high reliability.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
