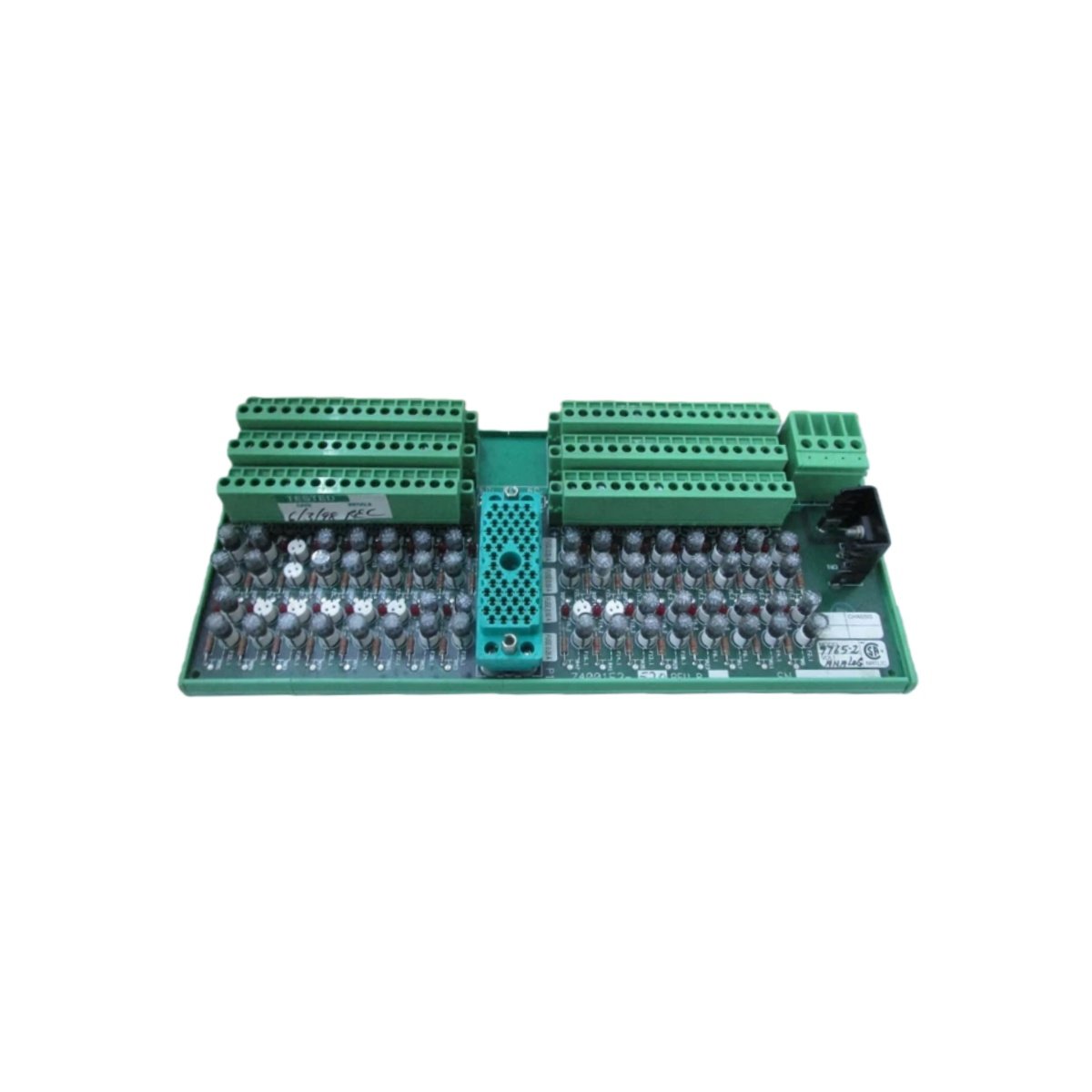

The Triconex 9760-210 functions as a dedicated input termination panel for Triconex safety instrumented systems. This panel provides secure field wiring connections for analog and digital input modules in critical applications. Engineers use it to interface field sensors with Triconex safety controllers reliably. The 9760-210 ensures proper signal termination for demanding safety applications up to SIL 3. Its robust design meets the rigorous requirements of industrial safety systems.

Technical Specifications

Terminal Configuration and Layout

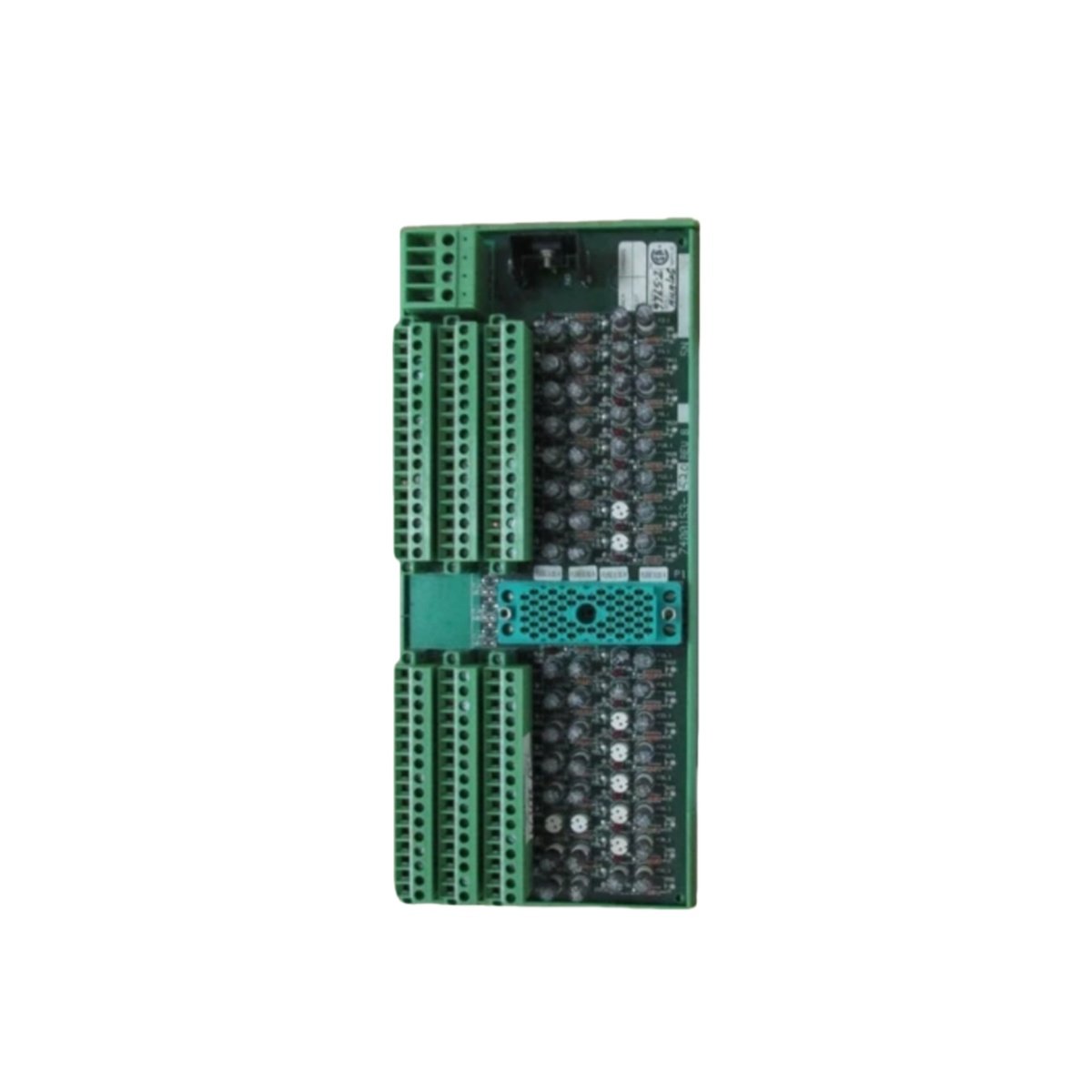

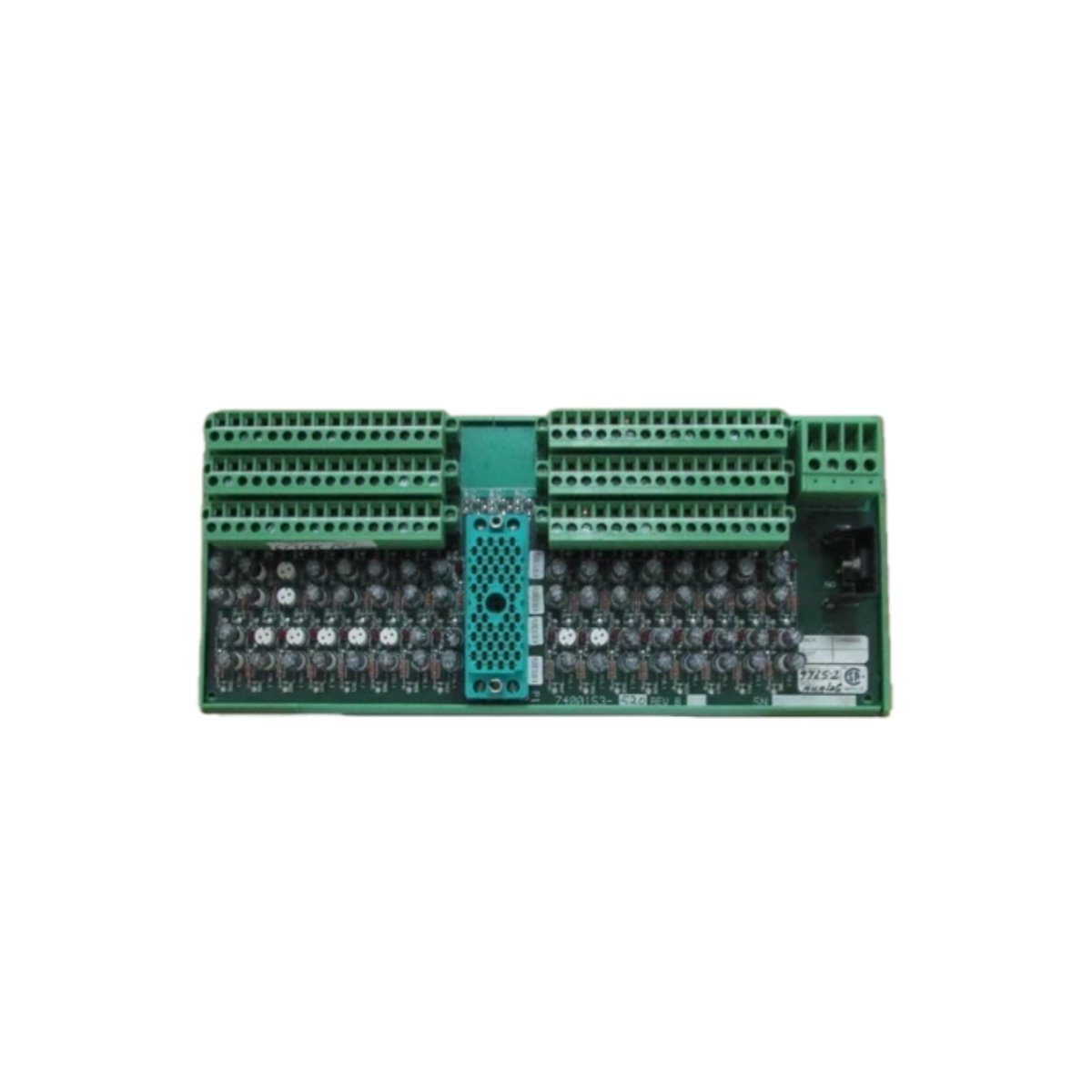

The 9760-210 provides thirty-two individual termination points in a rugged panel assembly. Each terminal accepts solid or stranded wires from 14 to 22 AWG sizes. Screw clamp mechanisms ensure secure connections that resist vibration and loosening. Terminal numbering appears clearly with permanent laser-etched markings. Engineers identify field wiring connections quickly during installation and maintenance. The layout follows Triconex standard pin assignments for consistent system design.

Cable Interface and Integration

Triconex 9760-210 includes a 50-pin connector for direct interface to I/O modules. Pre-assembled cables connect the termination panel to corresponding input modules. This architecture simplifies module replacement without disturbing field wiring connections. Field wiring connects once to the termination panel permanently. The cable interface ensures reliable signal transmission between field and controller.

Mechanical Design and Mounting

The 9760-210 mounts on panels or standard DIN rails for flexible installation options. Its compact footprint saves valuable space within safety system cabinets. The thermoplastic housing meets UL 94V-0 flammability requirements for industrial use. IP20 protection rating provides finger-safe operation while allowing heat dissipation. Label strips accept custom identification for field wiring documentation. This design facilitates organized wiring and simplified maintenance procedures.

Electrical Ratings and Performance

The input termination panel handles 5 Amps continuously at voltages up to 250 Vac. Contact material of tin-plated brass ensures reliable conductivity and corrosion resistance. Dielectric strength of 1500 Vac guarantees safe isolation between circuits. Insulation resistance exceeds 1000 MΩ for minimal leakage current in safety applications. These ratings support direct connection of field devices without additional interface hardware.

Protection Features

The 9760-210 incorporates surge suppression for protection against voltage transients. Internal components limit overvoltage from lightning or switching events. This protection safeguards both field devices and input modules from damage. Engineers connect field wiring directly without external protection devices. The panel maintains signal integrity essential for SIL-rated applications.

Application in Safety Systems

The 9760-210 suits various safety instrumented system applications effectively. Common uses include emergency shutdown, fire and gas monitoring, and critical process control. Field devices connect securely for reliable signal transmission to safety controllers. The termination panel maintains signal integrity essential for SIL-rated applications. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this assembly ensures reliable operation. Engineers appreciate the combination of mechanical robustness and electrical reliability.
