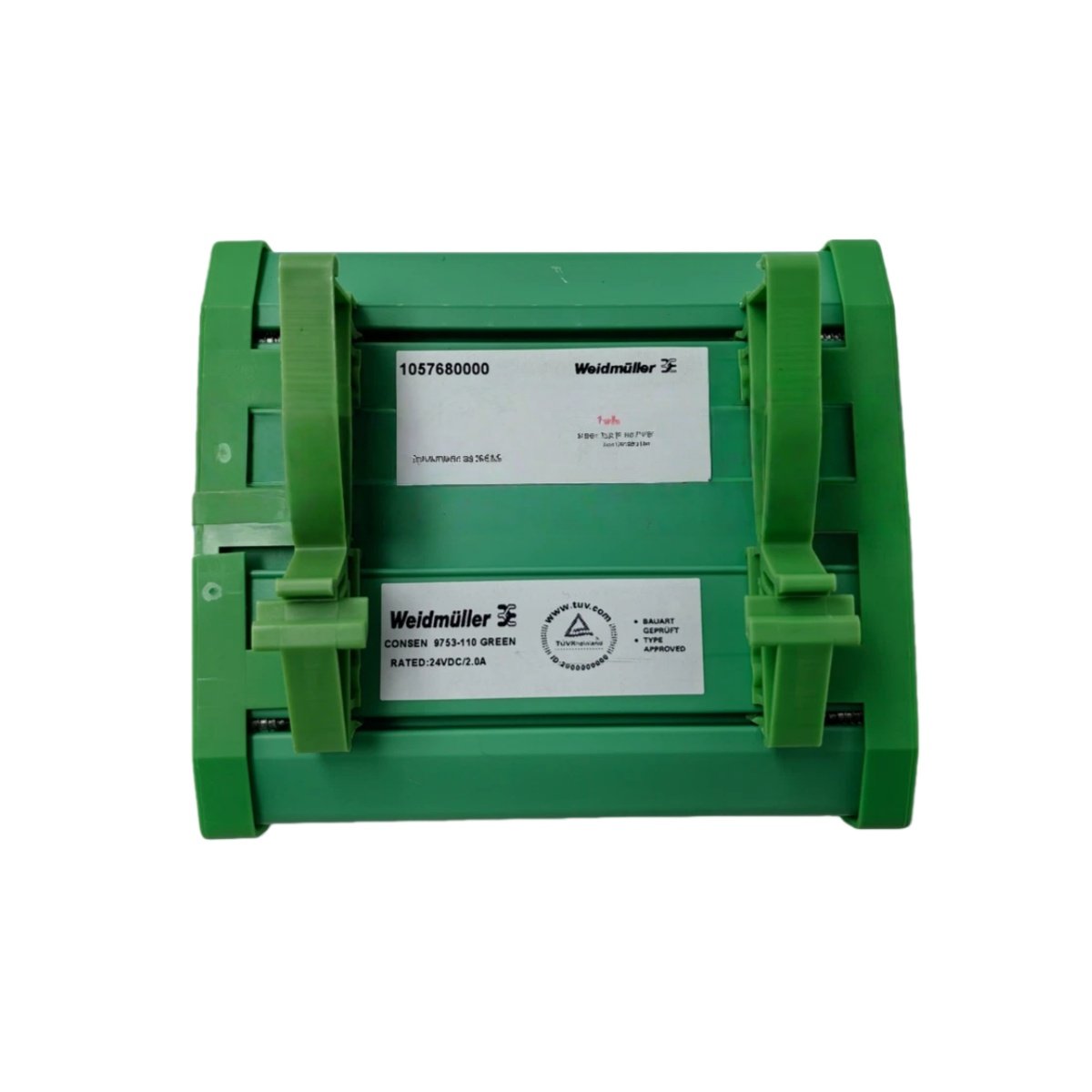

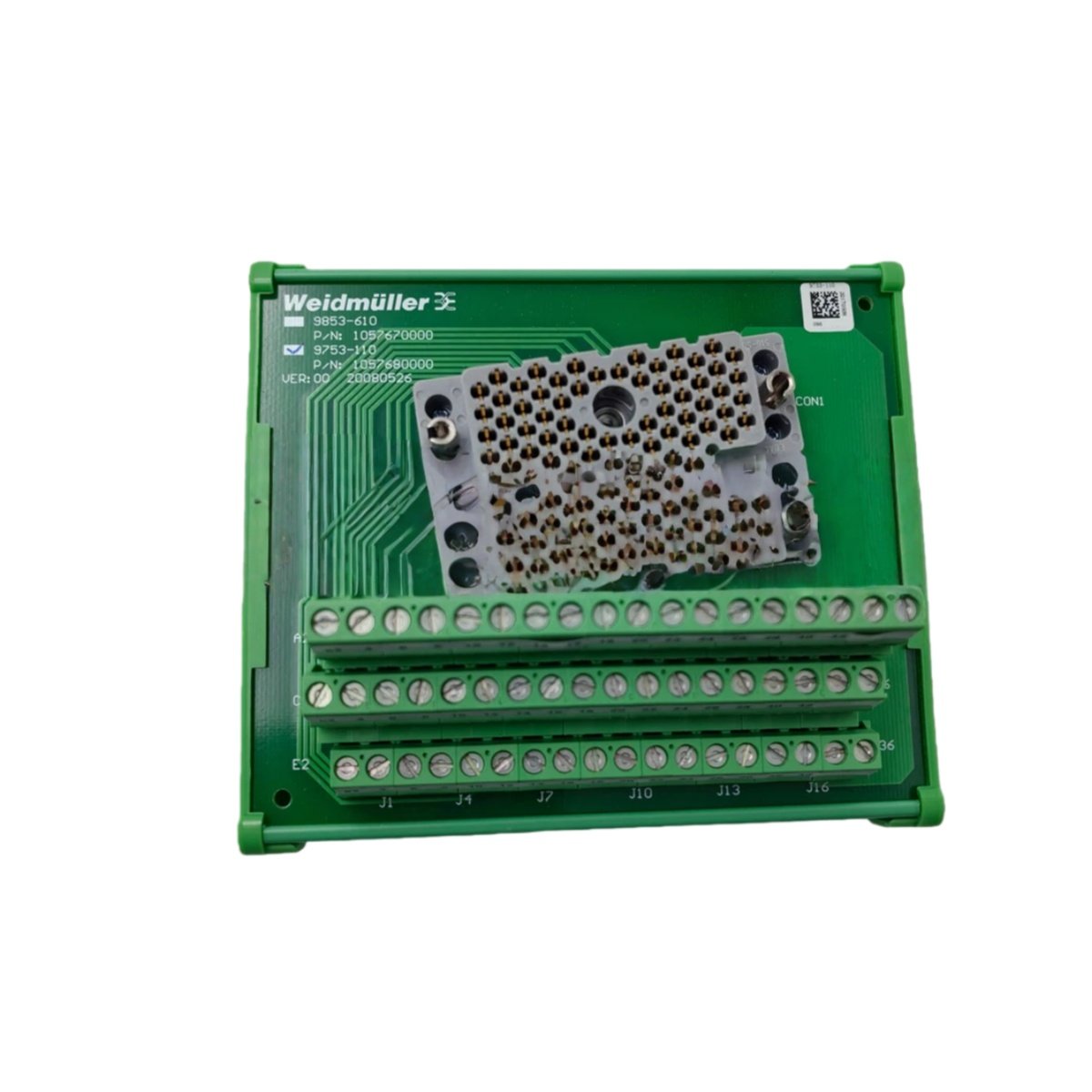

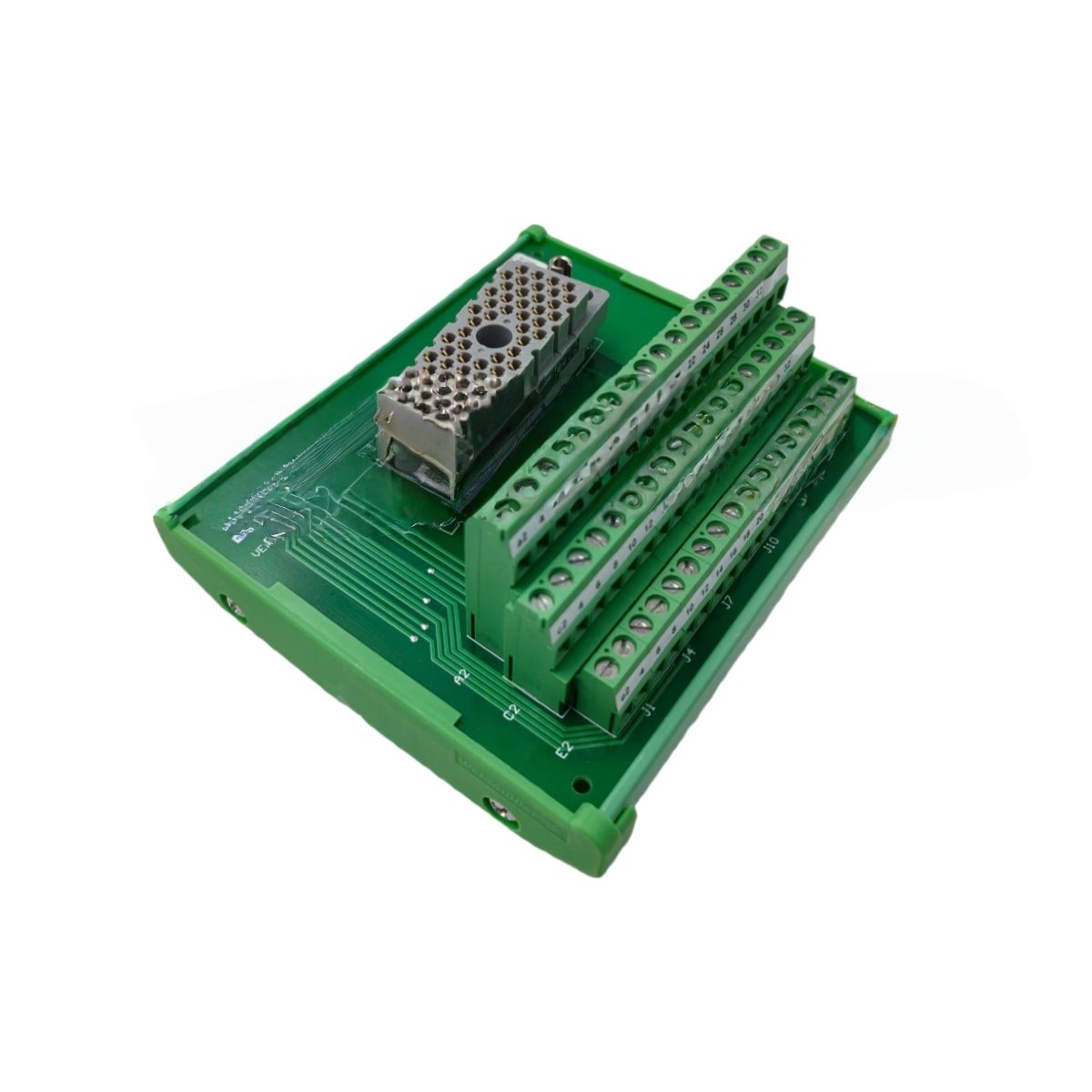

The Triconex 9753-110 functions as a dedicated voltage input terminal board within the Tricon safety instrumented system platform. This field termination assembly provides the physical interface between field sensors and the Tricon analog input modules. Specifically, it supports Triple Modular Redundant architecture for SIL 3 safety applications.

Technical Architecture and Input Specifications

Engineers require reliable field wiring termination for safety-critical measurements, and the Triconex 9753-110 delivers through robust construction and clear channel identification. This terminal board accepts 24 VDC field signals and routes them to the corresponding analog input module. Additionally, it includes built-in test points for troubleshooting without disturbing field wiring.

Field Wiring and System Integration

Connecting field sensors to the Triconex 9753-110 requires simple termination at the clearly labeled screw terminals. The board accepts wire sizes up to 14 AWG for reliable connections in industrial environments. Consequently, technicians can complete field wiring quickly during initial installation or retrofit projects.

The terminal board interfaces directly with Tricon analog input modules through pre-fabricated cable assemblies. Therefore, the system maintains signal integrity from the field sensor to the safety processor. Additionally, the 9753-110 features hot-swappable capability, allowing module replacement without disturbing field wiring terminations.

Environmental Durability and Operational Benefits

The Triconex 9753-110 incorporates rugged construction suitable for extreme industrial environments in refining and power generation. Its wide operating temperature range of -40°C to +85°C suits both indoor and outdoor installations without additional climate control. Moreover, the compact dimensions allow efficient use of panel space in crowded control cabinets.

For applications requiring maximum flexibility, this terminal board supports various analog and digital I/O modules within the Tricon ecosystem. Hence, facilities can standardize on a single termination platform for multiple signal types. Ultimately, selecting the 9753-110 ensures dependable field wiring termination for Tricon safety instrumented systems in critical process applications worldwide.
