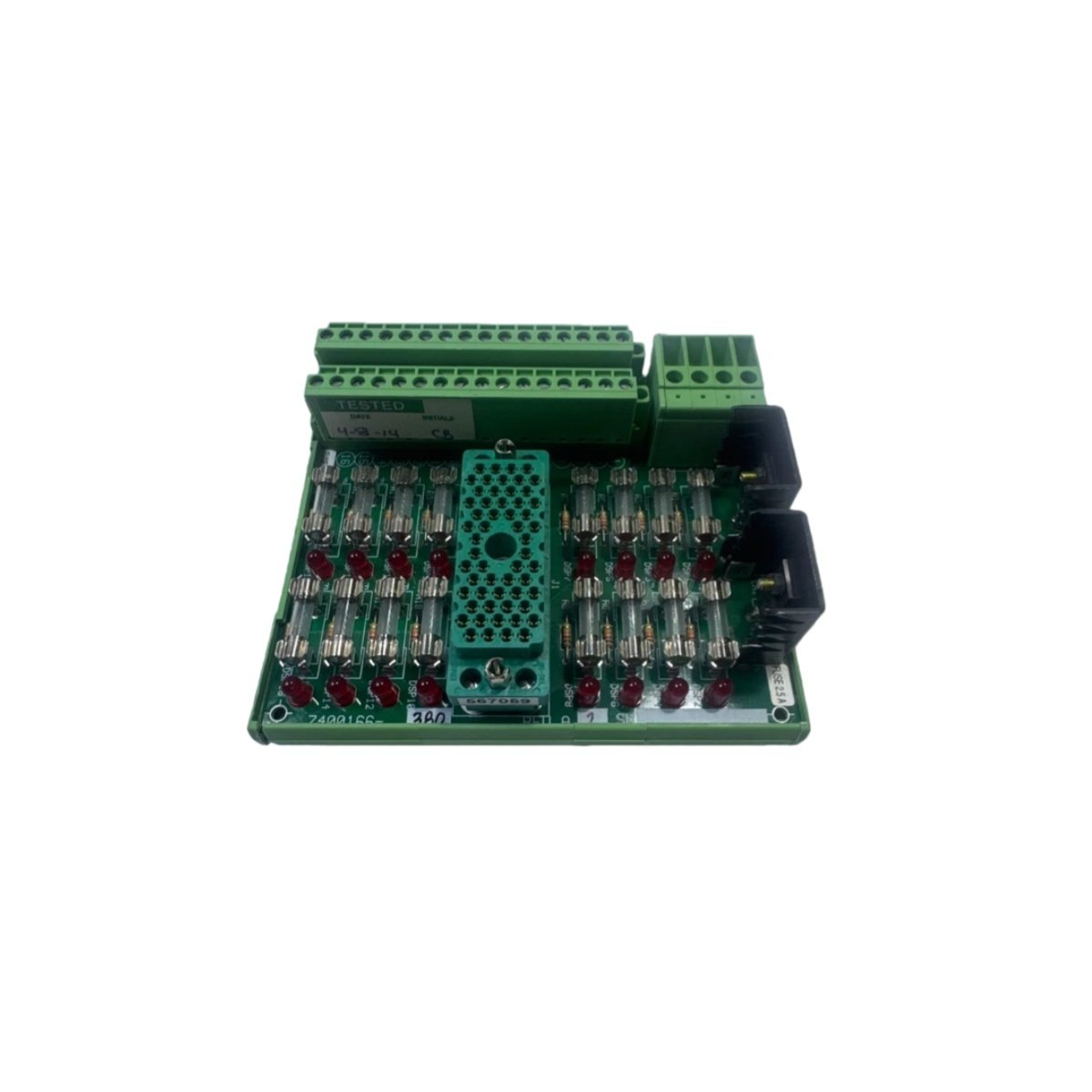

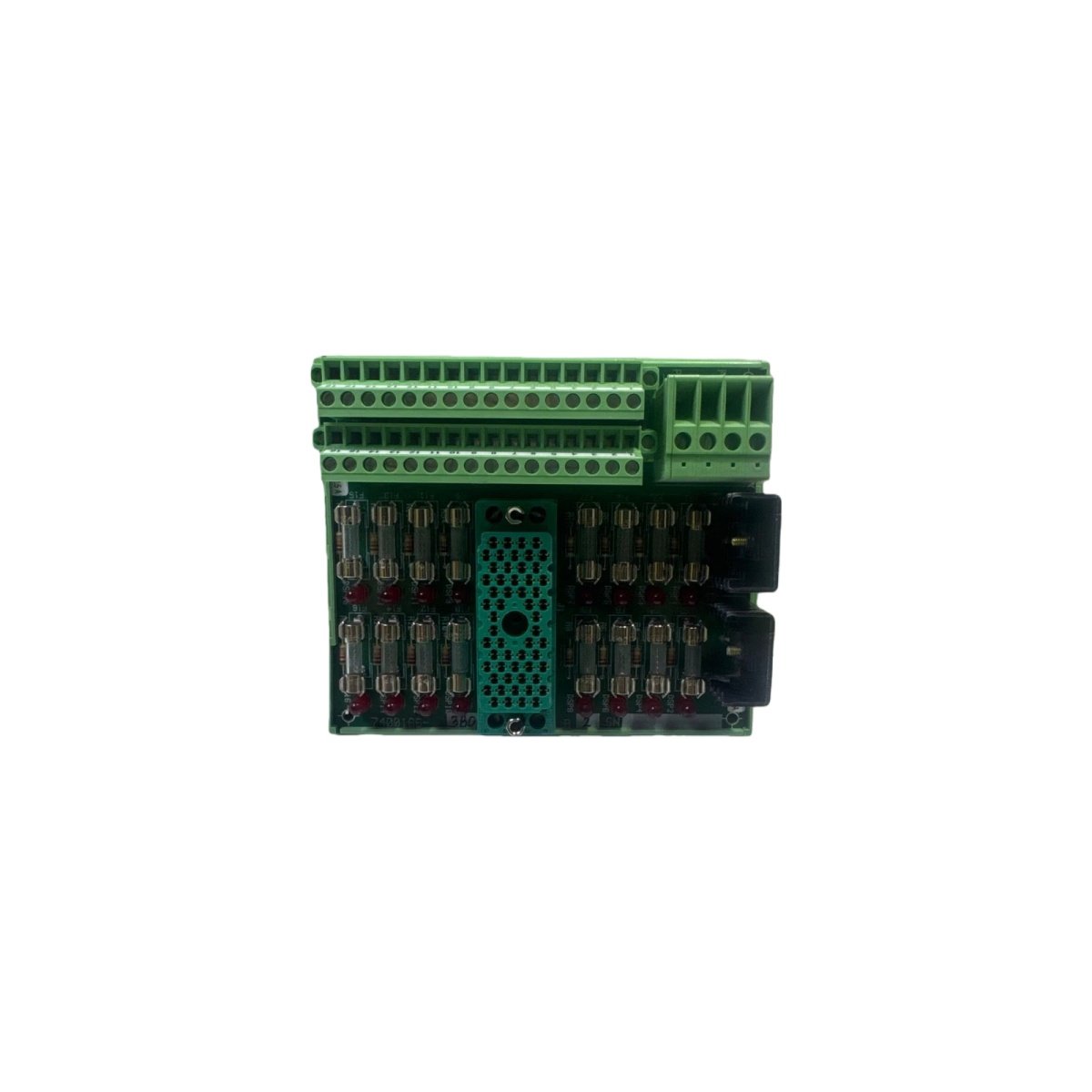

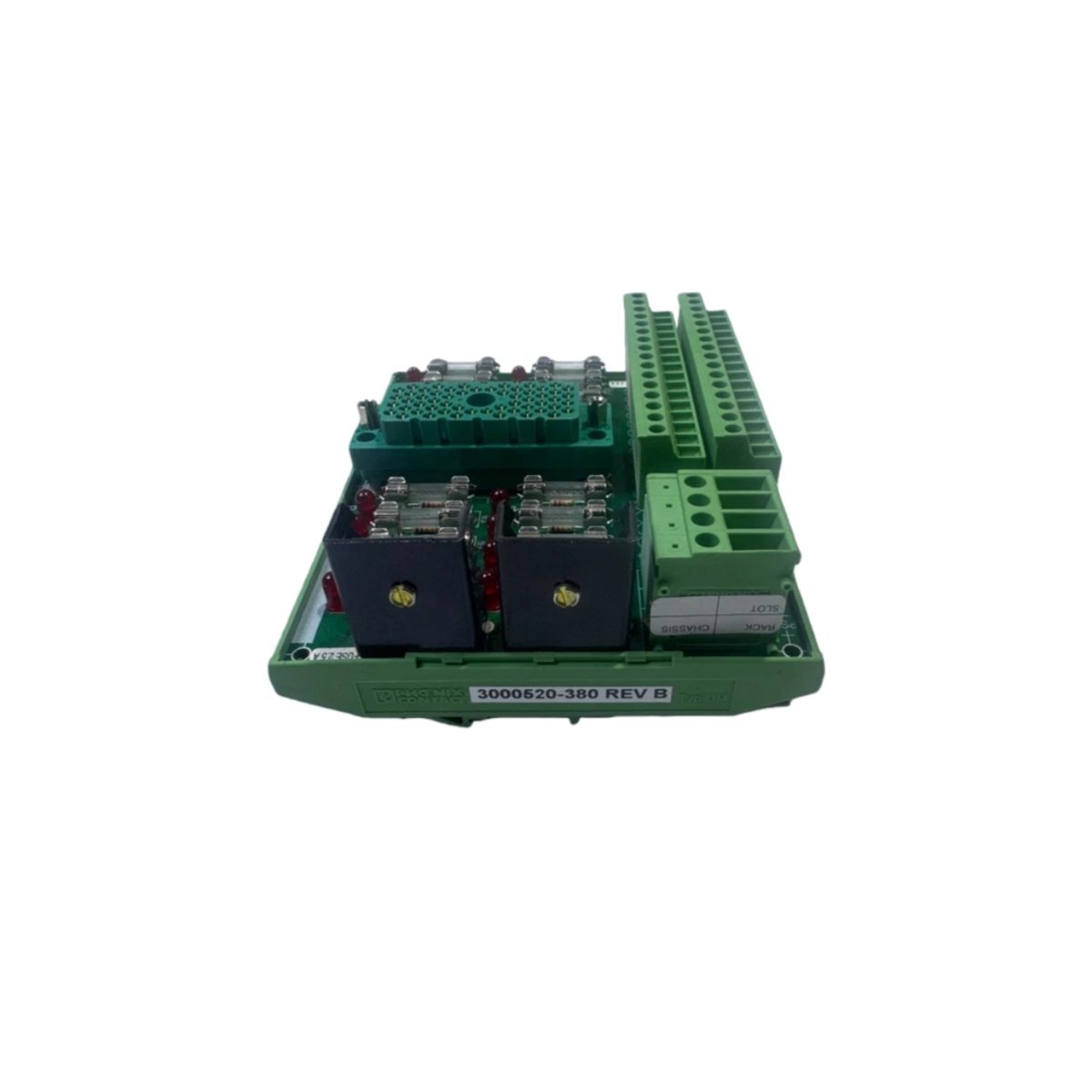

The Triconex 9662 functions as a dedicated digital output termination panel for Triconex safety systems. This panel provides secure field wiring connections for digital output modules in critical applications. Engineers use it to interface with solenoids, motor starters, and alarm devices reliably. The 9662 ensures proper signal termination for demanding safety applications up to SIL 3. Its robust design meets the rigorous requirements of industrial safety systems.

Technical Specifications

Terminal Configuration and Layout

The 9662 provides thirty-two individual termination points in a rugged panel assembly. Each terminal accepts solid or stranded wires from 14 to 22 AWG sizes. Screw clamp mechanisms ensure secure connections that resist vibration and loosening. Terminal numbering appears clearly with permanent laser-etched markings. Engineers identify field wiring connections quickly during installation and maintenance. The layout follows Triconex standard pin assignments for consistent system design.

Cable Interface and Integration

Triconex 9662 includes a 50-pin connector for direct interface to digital output modules. Pre-assembled cables connect the termination panel to corresponding output modules. This architecture simplifies module replacement without disturbing field wiring connections. Field wiring connects once to the termination panel permanently. The cable interface ensures reliable signal transmission between module and field devices.

Mechanical Design and Mounting

The 9662 mounts on panels or standard DIN rails for flexible installation options. Its compact footprint saves valuable space within safety system cabinets. The thermoplastic housing meets UL 94V-0 flammability requirements for industrial use. IP20 protection rating provides finger-safe operation while allowing heat dissipation. Label strips accept custom identification for field wiring documentation. This design facilitates organized wiring and simplified maintenance procedures.

System Features and Benefits

High Reliability and Availability: The 9662 integrates with Triconex 3000 Series redundant architecture for maximum system integrity. This design prevents failures and ensures continuous operation in critical applications. The panel supports systems certified to IEC 61508 SIL 3 for maximum safety integrity.

Scalability: Engineers use the 9662 in applications of any size from small single-controller setups to large multi-controller configurations. The panel scales seamlessly with system requirements. Multiple panels combine for extensive I/O counts in large installations.

Flexibility: The 9662 supports a wide range of output module types and field devices. Engineers customize connections for specific application requirements easily. The panel accommodates various wiring schemes and device configurations.

Security: The termination panel incorporates features that safeguard against unauthorized access. Its design maintains the integrity and confidentiality of safety system data. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this panel ensures system security.

Application in Safety Systems

The 9662 suits various safety instrumented system applications effectively. Common uses include emergency shutdown, fire and gas monitoring, and critical process control. Field devices connect securely for reliable signal transmission from safety controllers. The termination panel maintains signal integrity essential for SIL-rated applications. Engineers appreciate the combination of mechanical robustness and electrical reliability.
