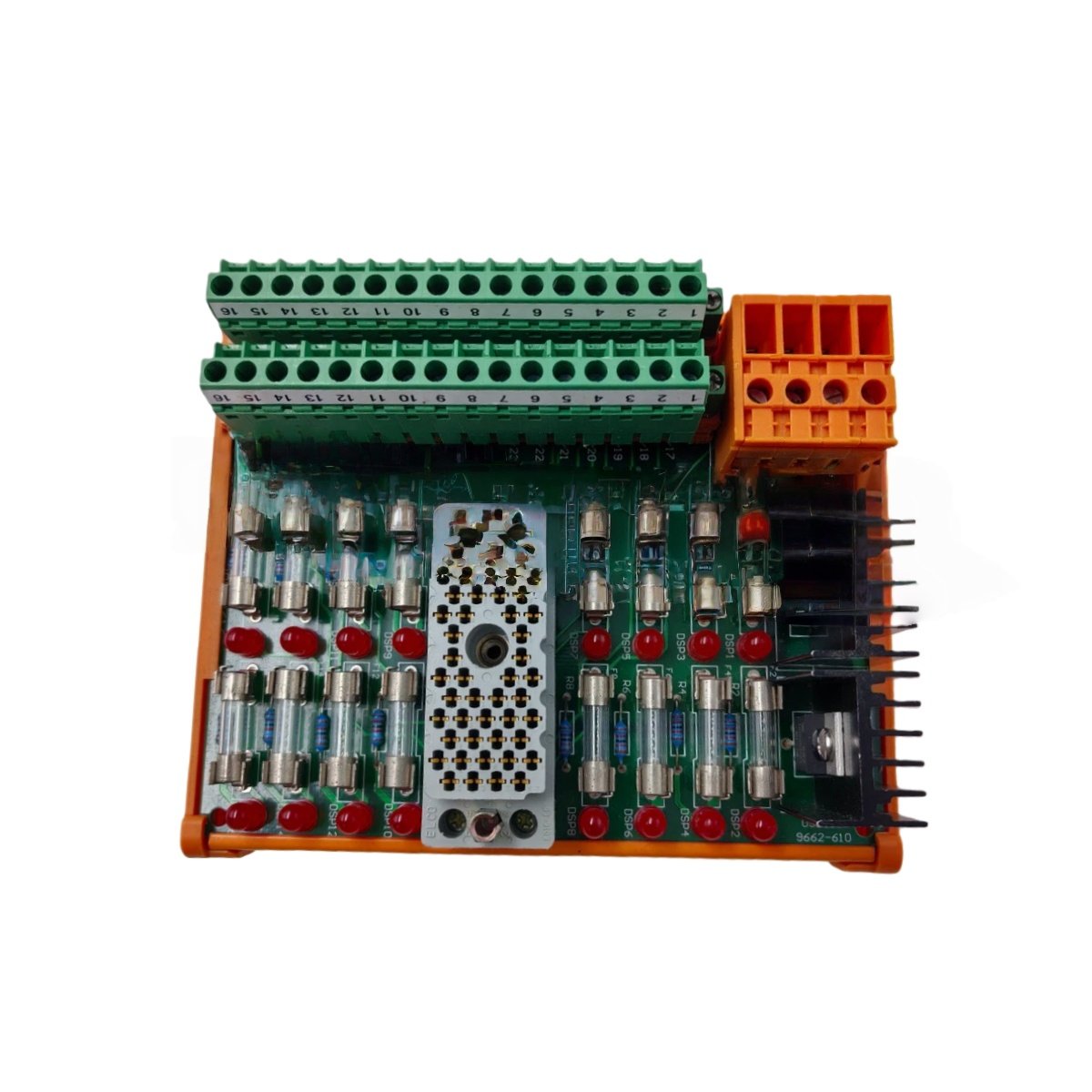

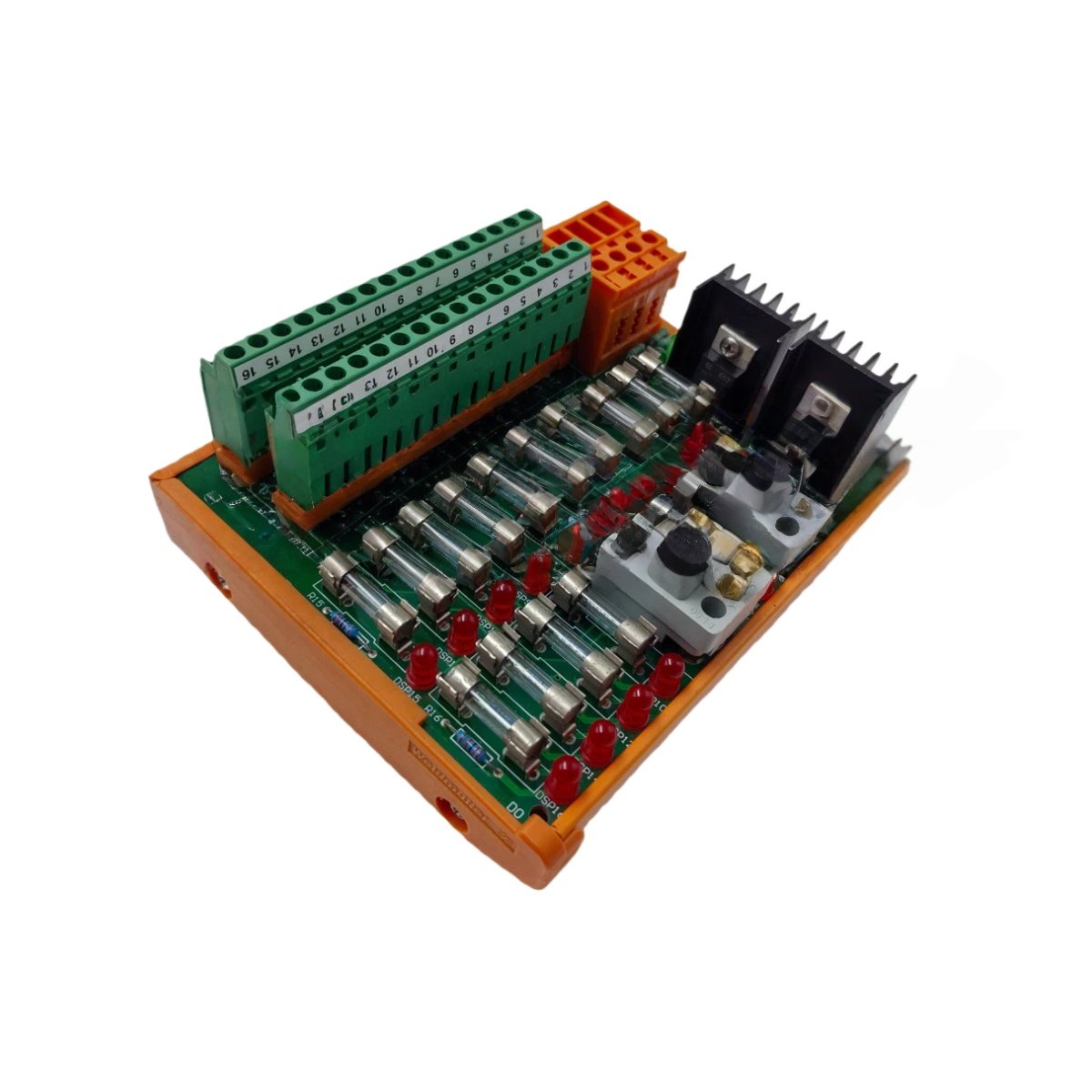

The Triconex 9662-810 functions as a dedicated digital output termination panel within the Tricon safety instrumented system platform. This field termination assembly connects digital output modules to external field devices while providing commoned power distribution. Specifically, it interfaces with the 3604E digital output module for complete safety system integration.

Technical Architecture and Field Termination

Engineers require organized and protected field wiring for safety-critical outputs, and the Triconex 9662-810 delivers through commoned power supply and individual fuse protection. This termination panel supports 16 output points, each with dedicated fuse protection for reliable operation. Additionally, the commoned power architecture simplifies field wiring for solenoids, relays, and indicators.

System Integration and Module Compatibility

Connecting the Triconex 9662-810 to the 3604E digital output module requires simple cabling between the panel and the Tricon chassis. The termination panel receives output signals from the 3604E and distributes them to field devices with commoned power. Consequently, facilities can achieve organized wiring while maintaining individual fuse protection for each output circuit.

The 3604E module features 24 VDC operation with opto-isolation and Triple Modular Redundant architecture. Therefore, the combination of 9662-810 and 3604E provides complete SIL 3 capable digital output control. Additionally, the termination panel’s compact dimensions allow efficient use of cabinet space in crowded installations.

Field Wiring and Operational Benefits

The Triconex 9662-810 accepts field wiring up to 14 AWG at its clearly labeled screw terminals. Individual fuses protect each output point from overcurrent conditions without affecting other circuits. Hence, a single field fault will not compromise multiple output channels or require extensive troubleshooting.

For maintenance activities, technicians can easily access fuses and terminal points without removing field wiring. This design simplifies fuse replacement and circuit verification during routine inspections. Ultimately, selecting the 9662-810 ensures dependable field termination for Tricon digital output modules in refining, power generation, and chemical processing applications.
