Product Overview

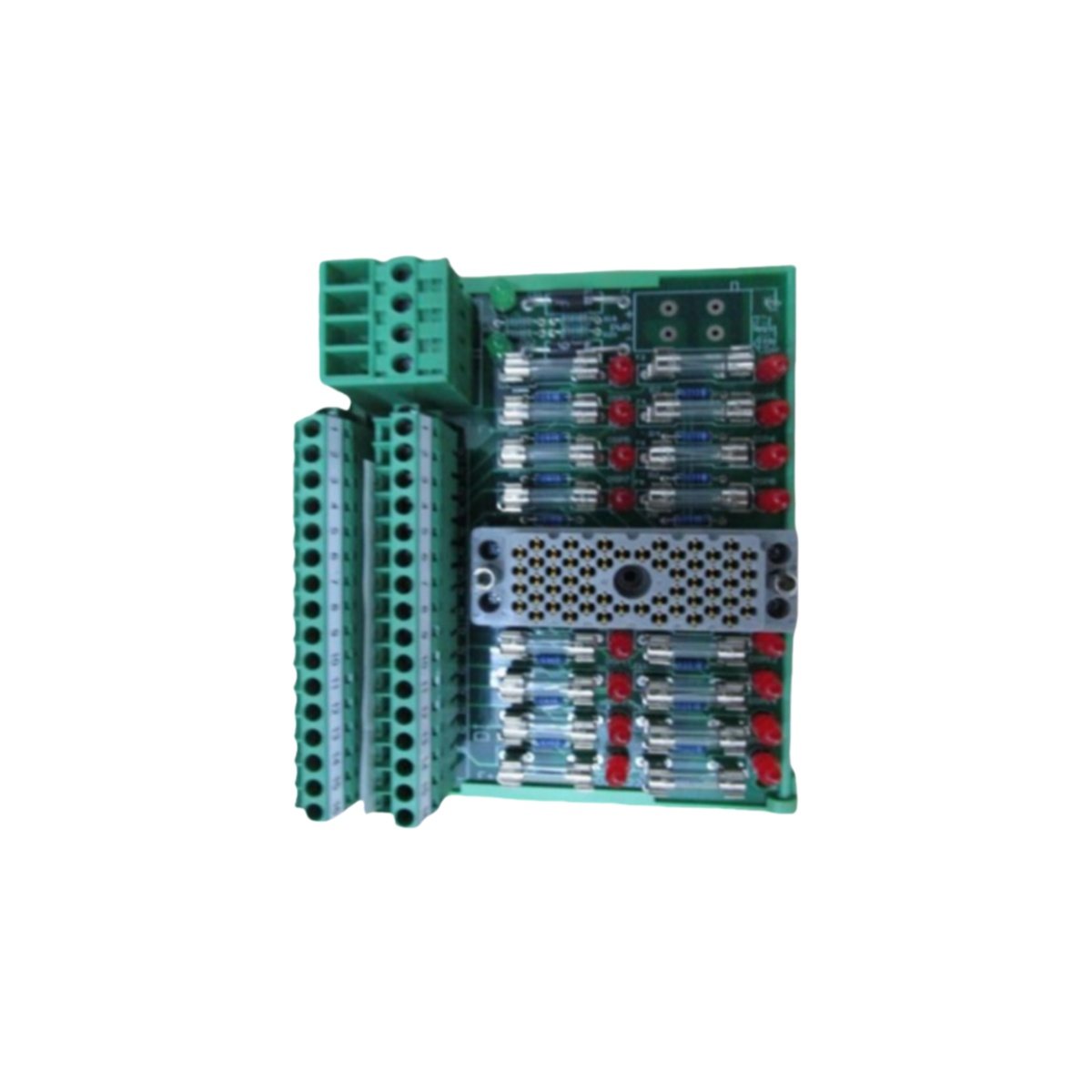

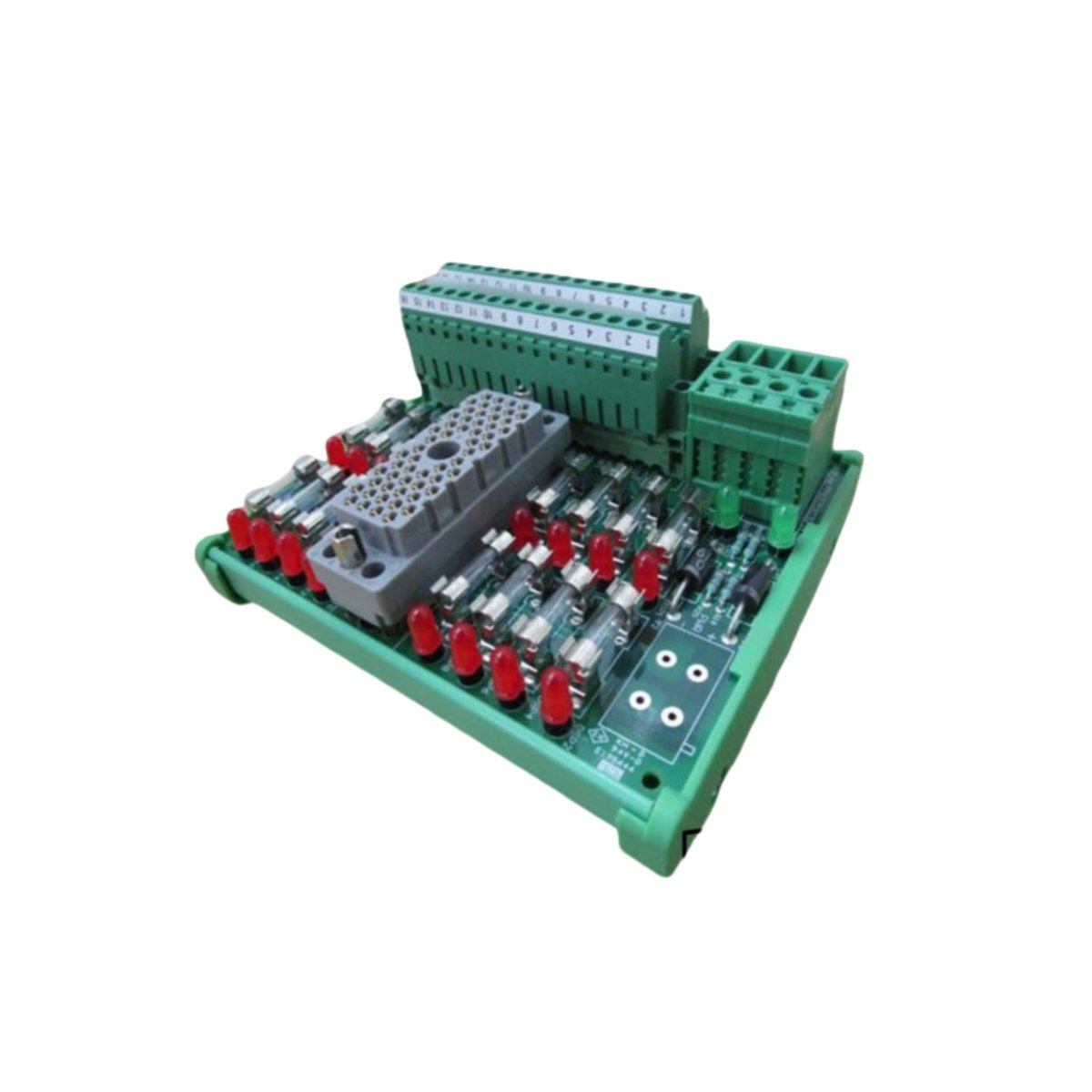

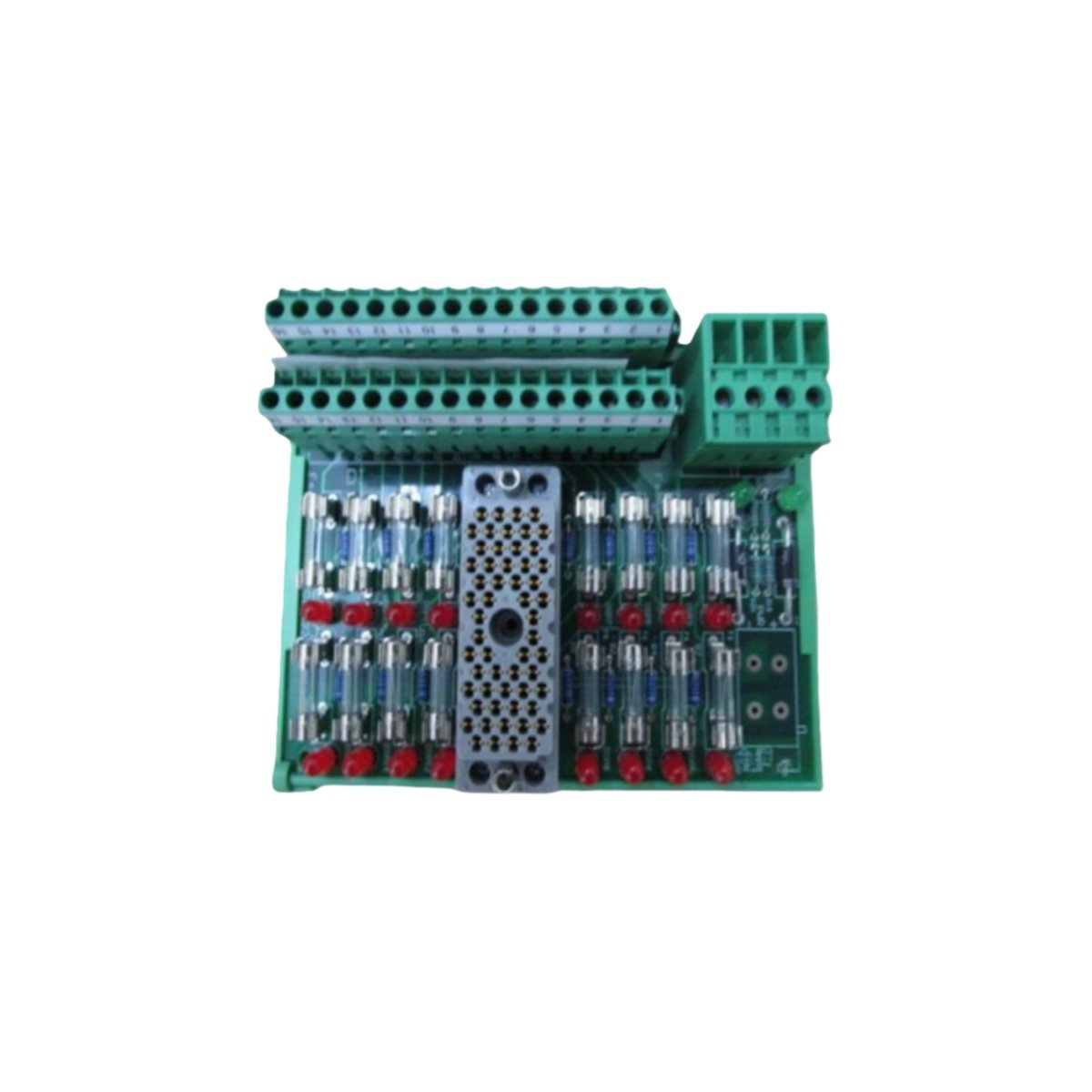

We present the Triconex 9563-810, a 16-point commoned termination panel for Triconex digital input modules. This panel provides organized field wiring terminations for safety system connections in industrial environments. Manufactured by Triconex Invensys, the Triconex 9563-810 features commoned power terminals for simplified wiring architecture. Its robust design supports reliable signal transmission from field devices to digital input modules.

Technical Specifications

The Triconex 9563-810 accommodates 16 input points with commoned power terminals labeled PWR+ and PWR-. We equip each input point with an individual fuse that includes a blown-fuse indicator for easy troubleshooting. Typical leakage current per point measures 2.5 mA, with a maximum leakage of 3.3 mA for reliable operation. The Triconex 9563-810 comes with two sets of labels covering points 1-16 and 17-32 for flexible configuration. Each digital input module with 32 points requires two termination panels per module. This termination panel measures standard dimensions for straightforward mounting in control cabinets. The unit weighs approximately 1.8 kg for manageable handling during installation procedures.

Compatible Digital Input Modules

The Triconex 9563-810 works seamlessly with the 3503E digital input module featuring 32 points per module. This module operates on 24 VAC/DC with commoned inputs in groups of eight. The Triconex 9563-810 also supports the 3505E digital input module with 32 points per module. This module provides 24 VDC low-threshold operation with commoned inputs in groups of eight. Both compatible modules utilize Triple Modular Redundant architecture with comprehensive self-test diagnostics. Each module requires two Triconex 9563-810 termination panels for complete 32-point field wiring termination.

Key Technical Features

Sixteen-Point Termination Capacity

We engineer the Triconex 9563-810 with 16 individually fused input points for organized field wiring. This configuration supports two panels per 32-point digital input module for complete system integration. Consequently, you achieve neat, maintainable wiring layouts in control cabinets.

Individual Point Fusing with Indicators

Each input point on the Triconex 9563-810 includes a dedicated fuse with a visual blown-fuse indicator. This feature allows technicians to quickly identify and replace failed fuses without extensive troubleshooting. Therefore, you minimize downtime when field wiring issues affect specific input channels.

Commoned Power Terminal Architecture

We design the panel with commoned PWR+ and PWR- terminals for simplified power distribution to all input points. This architecture reduces wiring complexity compared to individually powered termination schemes. As a result, you save installation time and reduce potential wiring errors.

Controlled Leakage Current Performance

The Triconex 9563-810 maintains typical leakage current of 2.5 mA with a maximum of 3.3 mA per point. This controlled leakage ensures compatibility with digital input modules without false triggering concerns. Subsequently, you achieve reliable input state detection in all operating conditions.

Flexible Module Compatibility

The termination panel supports both 3503E and 3505E digital input modules for application flexibility. This compatibility allows you to standardize on a single panel type across multiple module versions. Therefore, you simplify spare parts inventory while maintaining system configuration options.
