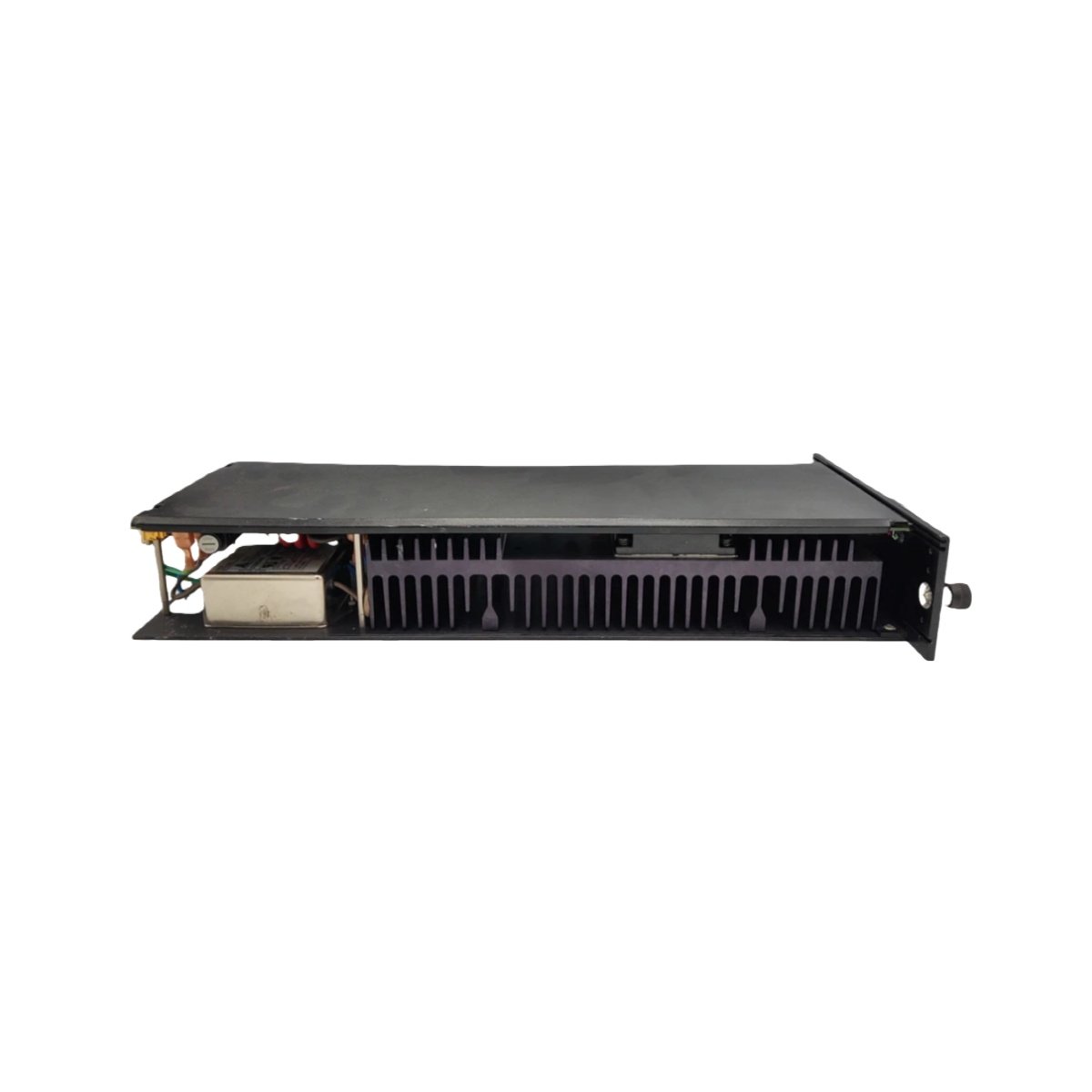

Core Technical Specifications of the Triconex 8310 Module

The Triconex 8310 supplies reliable DC power to Tricon safety systems. This module accepts an input range from 85 to 264V AC. You can also feed it 100 to 370V DC as an alternative source. The unit delivers 5V DC output at 60 amps continuously. Furthermore, it provides 24V DC at 12 amps for field devices. Triple Modular Redundancy (TMR) architecture eliminates single points of failure. Hot-swappable design lets you replace units without interrupting operations.

Physical Dimensions and Thermal Management

The Triconex 8310 weighs approximately 3.2 kilograms for secure mounting. Its dimensions measure 35.5 cm in width and 27 cm in depth. The front panel includes four LED indicators for status monitoring. Two internal cooling fans maintain optimal operating temperatures. The module stores minimal energy within its output capacitors. You will find a single 56-pin connector for backplane interface. The enclosure meets IP20 protection standards for indoor installations.

Operational Reliability and Safety Certifications

This power module operates efficiently across a -20°C to 65°C range. The Triconex 8310 uses no internal batteries for energy storage. Instead, it relies on premium capacitors for hold-up requirements. You can achieve 99.99% uptime with proper TMR configuration. Schneider Electric’s Triconex brand manufactures this industrial-grade module. The Triconex 8310 carries CE, UL, and ATEX certifications. This unit replaces older 8305A models with higher output capacity.
