Overview

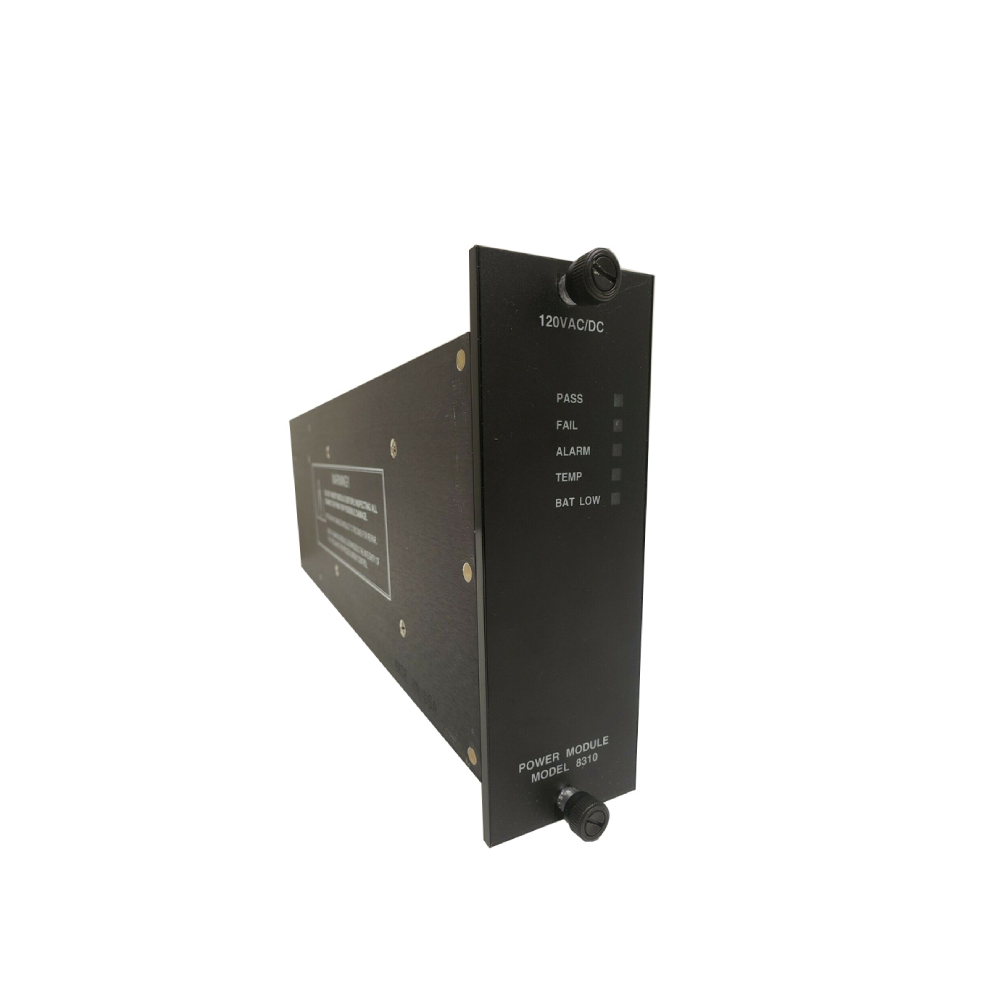

The Triconex 8310 Power Module delivers reliable DC power to all Tricon system modules while maintaining full system redundancy. Moreover, it enables hot-swapping, ensuring uninterrupted operation during maintenance or module replacement.
Key Benefits
- Full Redundancy: Two power modules ensure the system continues running if one module fails.
- Hot-Swappable Design: Modules can be replaced online without interrupting system performance.
- Alarm Contacts: Includes normally open, normally closed, and common contacts rated at 120 VAC @ 1 A.
- Robust Monitoring: Provides alerts for missing modules, system faults, over-temperature, and battery issues.
Technical Data
| Feature | Specification |
|---|---|
| Model | 8310 |
| Chassis Type | Main / Expansion / RXM |
| Nominal Voltage | 120 VAC / VDC |
| Input Voltage | AC: 85–140 V, 47–63 Hz; DC: 95–180 V |
| Fuse Rating | 5 A, time-delay |
| Isolation | >1000 VAC / 1500 VDC input-output |
| Output Power | 175 W at 140°F (60°C) |
| Output Voltage | 6.5 VDC ±1% |
| Output Current | 27 A max at 140°F (60°C) |
| Output Hold Time | ≥20 ms (from nominal to 0 V) |
| Over-Temperature Trip | 181°F (83°C) |
| Diagnostic Indicators | PASS, FAULT, ALARM, TEMP, BAT LOW |
| Input Terminations | 3 × 12-gauge wires (neutral, hot, protective earth) |
System Integration
The 8310 power module integrates seamlessly into Tricon main or expansion chassis. For instance, proper installation ensures balanced power distribution across all modules. In addition, the module supports serial and network communications to maintain system-wide diagnostics. Its left-side placement within the chassis simplifies cabling and airflow management.
FAQ
Q1: Are Triconex 8310 Power Modules new and available?
Yes, units are brand new and original, in stock, shipping within 3 days–2 weeks, depending on order size.
Q2: Which shipping options are offered for the 8310 module?
We provide DHL, FedEx, and UPS, ensuring secure, reliable global delivery.
Q3: What is the return policy for quality issues?
Returns are accepted within 30 days for verified defects, providing full customer support.
Details
| Weight | 3.8 kg |
|---|
