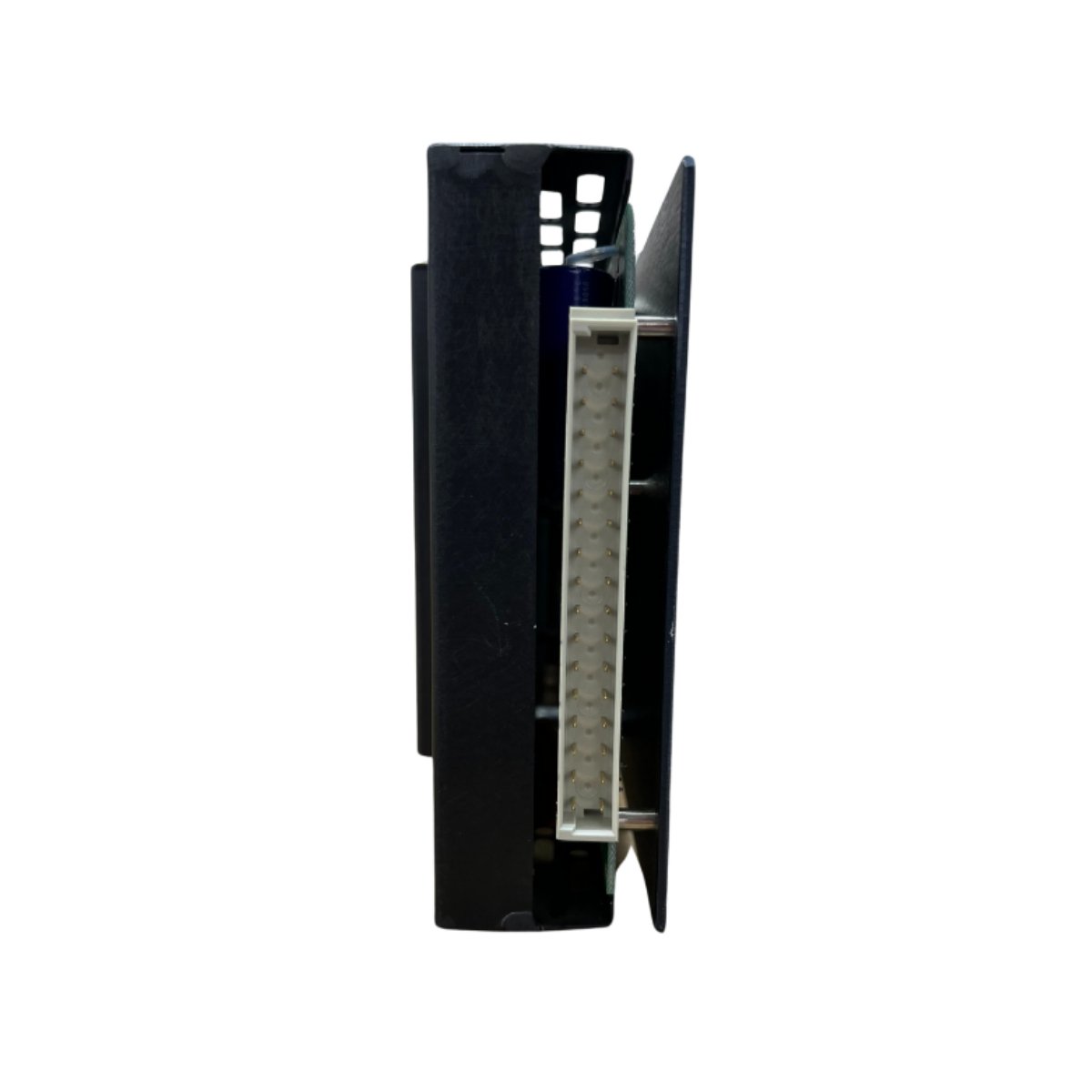

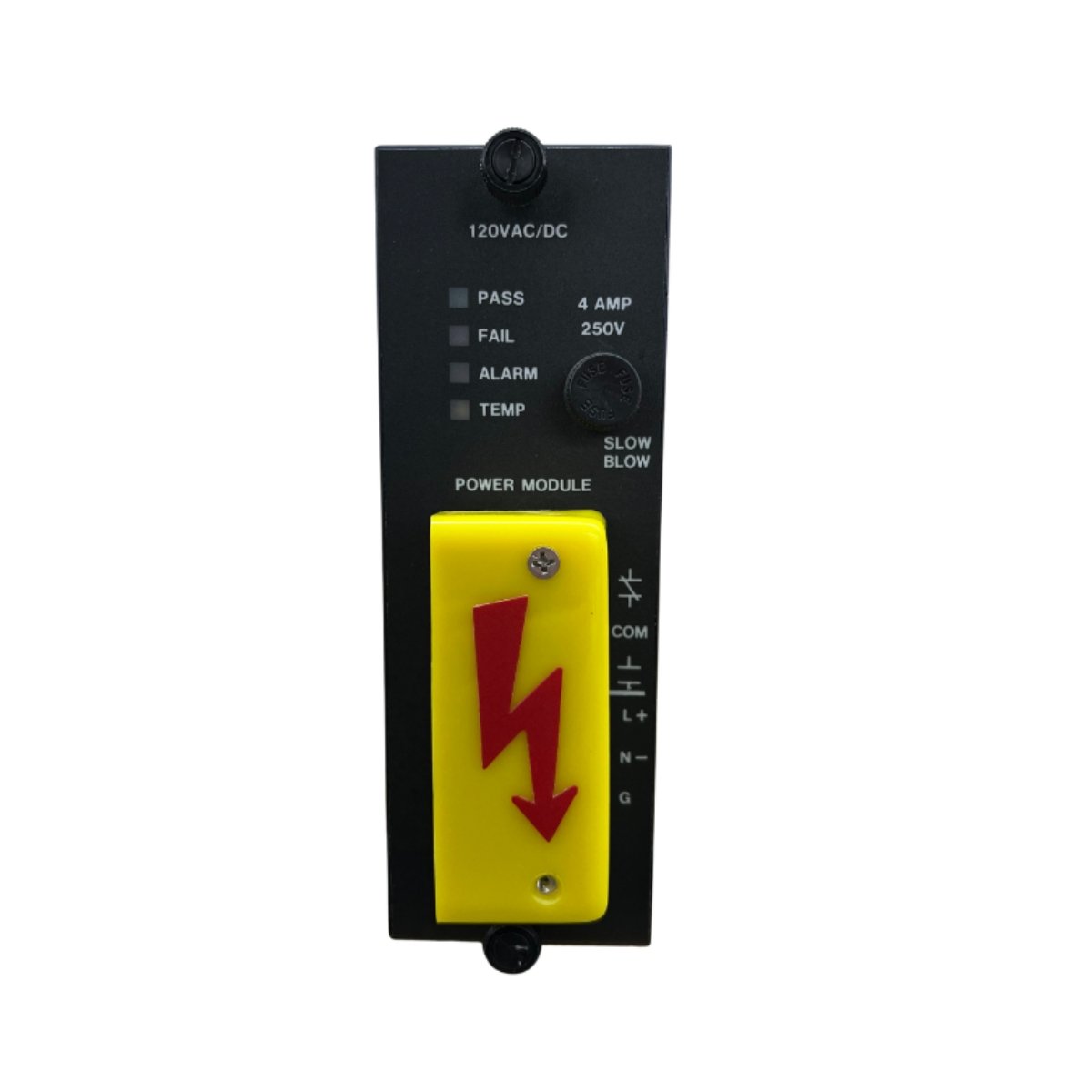

The Triconex 8305 is a robust power supply module engineered for critical safety and industrial control systems. It delivers reliable and stable power to Triconex safety controllers and connected equipment, ensuring continuous operation in demanding industrial environments. Its compact design and natural convection cooling make it ideal for standard rack installation.
Technical Overview
The 8305/8305A operates on 120 V AC/DC input, supporting up to 250 V AC maximum. It provides 4 A output current at 50/60 Hz frequency with high efficiency exceeding 85% at full load. Voltage regulation remains precise with ±1% load regulation and ±0.5% line regulation, while ripple noise stays below 50 mV peak-to-peak, ensuring stable power for sensitive controllers.
Key Features
- Provides regulated 4 A output current with ±1% load accuracy
- High-efficiency design (>85%) minimizes energy loss
- Ripple noise <50 mV peak-to-peak ensures clean output signals
- Operates reliably from 0°C to 60°C, storing safely at –40°C to 85°C
- UL, CE, and ATEX certified for industrial safety compliance
- Natural convection cooling eliminates the need for forced ventilation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8305 / 8305A |
| Manufacturer | Triconex |
| Product Type | Power Supply Module |
| Input Voltage | 120 V AC/DC |
| Maximum Voltage | 250 V AC |
| Output Current | 4 A |
| Frequency | 50/60 Hz |
| Efficiency | >85% at full load |
| Ripple Noise | <50 mV peak-to-peak |
| Load Regulation | ±1% |
| Line Regulation | ±0.5% |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Humidity | 5–95%, non-condensing |
| Cooling Method | Natural convection |
| Weight | 2.0 kg |
| Safety Standards | UL, CE, ATEX certified |
Installation Guidelines
- Mount the 8305 in a standard industrial rack.
- Ensure proper ventilation clearance for natural convection cooling.
- Connect input power according to polarity specifications.
- Verify all electrical connections before operation.
- Monitor status indicators for correct functioning after startup.
Package Contents
- 1 × Triconex 8305 Power Supply Module
- Installation and operation manual
- Mounting hardware and connectors
- Shipped via FedEx, UPS, or DHL
Origin, Dimensions, and Weight
- Country of Origin: USA
- Dimensions: Compact module suitable for standard industrial racks
- Weight: 2.0 kg
Applications
The Triconex 8305 ensures uninterrupted power for Triconex safety controllers in automation, oil and gas, and industrial facilities. Its high efficiency, robust protection, and natural convection design make it ideal for critical control systems in hazardous and demanding environments.
Details
| Weight | 2 kg |
|---|---|
| Dimensions | 61 × 178 × 413 mm |
