Overview

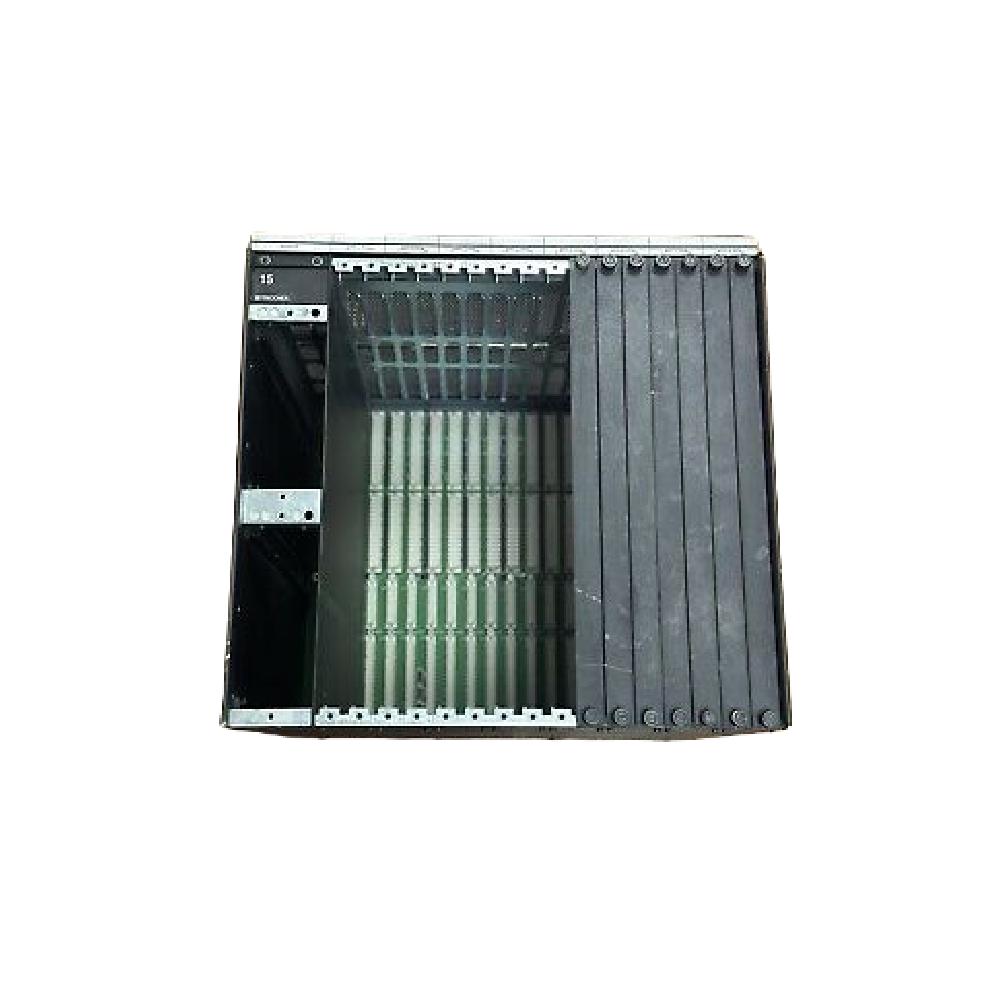

The Triconex 8111 | 3000603-100 Expansion Chassis provides high-density configuration for complex Tricon systems. It allows seamless system expansion with up to 14 additional expansion or remote RXM chassis. In addition, its robust design ensures reliable operation under demanding industrial conditions while maintaining full compatibility with main chassis and existing I/O modules.
Key Features
- High-Density Slots: Provides eight logical slots for user-selected modules.
- Unique Addressing: Each expansion chassis uses a unique address between 2 and 15 to prevent conflicts.
- Power Redundancy: Equipped with two power modules to maintain uninterrupted operation.
- Triplicated I/O Bus: Connects channels A, B, and C for high-integrity communication.
- Flexible RXM Support: Supports primary and remote RXM module sets up to 12 kilometers apart.
Technical Specifications
| Feature | Specification |
|---|---|
| Dimensions | 19 in × 22.75 in × 17.75 in (48.3 × 57.8 × 45.1 cm) |
| Chassis Fabrication | Black zinc-plated and welded cold-rolled steel |
| Main/Expansion Chassis Weight | 54.0 lbs (24.5 kg) |
| Power Module Weight | 7.2 lbs (3.3 kg) |
| Main Processor Weight | 4.7 lbs (2.1 kg) |
| I/O Module Weight | 4.7–6.0 lbs (2.1–2.7 kg) |
| Communication Module Weight | 5.0 lbs (2.3 kg) |
| I/O Bus Speed | 375 kbps (between I/O modules and main processors) |
| Communication Bus Speed | 2 Mbps (main processors to communication modules) |
System Integration
Expansion chassis are designed to extend main Tricon systems efficiently. Each chassis must maintain I/O bus cable lengths under 100 feet (30 meters) per channel, while RXM chassis handle longer distances. Moreover, fiber-optic cables connect primary and remote RXM sets to ensure data integrity across all channels. The system supports both v9 high-density configurations and v5–v8 low-density modules with seamless compatibility.
