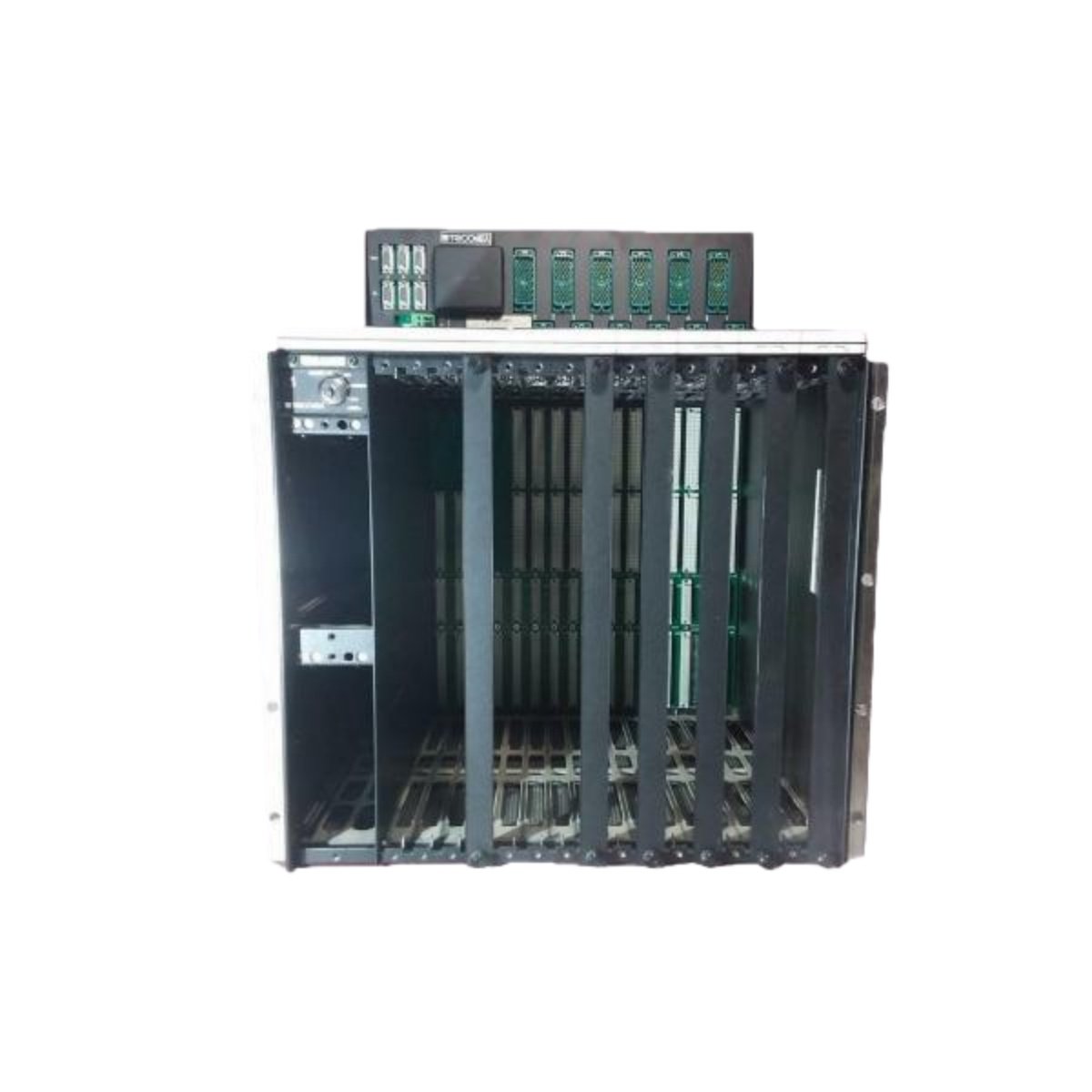

The Triconex 8110 functions as a high-density main chassis for Triconex safety instrumented systems. This chassis houses critical safety modules in a rugged 19-inch rack-mount enclosure. Engineers use it to organize Tricon v9-v10 systems for demanding industrial safety applications. The 8110 provides mechanical support and backplane connections for all system modules. Its robust construction ensures reliable operation in harsh industrial environments.

Technical Specifications

Expansion and Communication Ports

The 8110 includes six RS-485 I/O expansion bus ports for system scalability. Engineers connect remote I/O chassis through these ports for distributed applications. Two complete sets of ports serve Channel A, B, and C for full redundancy. This architecture maintains triple modular redundant communication to all expansion racks. Each port provides reliable serial communication for safety-critical data transfer. The multiple ports support extensive I/O counts for large-scale safety systems.

Mechanical Design and Construction

Triconex 8110 features heavy-gauge steel construction with protective coating for durability. Its 4U height fits standard 19-inch equipment racks commonly found in industrial settings. The chassis measures 482 mm square for consistent cabinet layout and airflow management. At 28 kg, it provides a solid foundation for installed modules and backplane connections. Integrated fan trays ensure proper cooling for all system components. This robust design withstands vibration and shock in industrial environments.

Keyswitch and System Control

A four-position keyswitch on the 8110 provides master control for system operation. The Run position enables normal safety functions with full execution. Program mode allows configuration changes while maintaining safety operations. Stop position halts program execution for maintenance activities. Remote mode enables external control of system state from operator interfaces. Engineers use the keyswitch for secure access control to critical safety functions.

Backplane Architecture

The 8110 incorporates a passive backplane with triple modular redundant design. Each signal routes through three independent paths for fault-tolerant operation. The backplane distributes power and communication to all installed modules. High-density layout maximizes module count within the available chassis space. This design supports the stringent reliability requirements of SIL 3 applications. The passive design eliminates active components that could introduce failure modes.

Integration with Safety Systems

Engineers integrate the 8110 into complete Triconex safety instrumented systems seamlessly. Main processor modules occupy dedicated slots for triple redundant control. I/O modules install in remaining positions for field signal termination. Power supplies mount in redundant configurations for high availability. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this chassis ensures system integrity. Its expansion ports connect to additional chassis for large-scale applications.

Environmental Durability

The 8110 operates reliably across an extensive temperature range from -20°C to 70°C. This wide range suits installations in unconditioned enclosures and harsh climates. Storage capability from -40°C to 85°C accommodates shipping and spare parts storage. Integrated cooling maintains component temperatures within safe limits. Engineers deploy this chassis in diverse industrial settings with confidence. Its environmental specifications meet the demands of global industrial applications.
