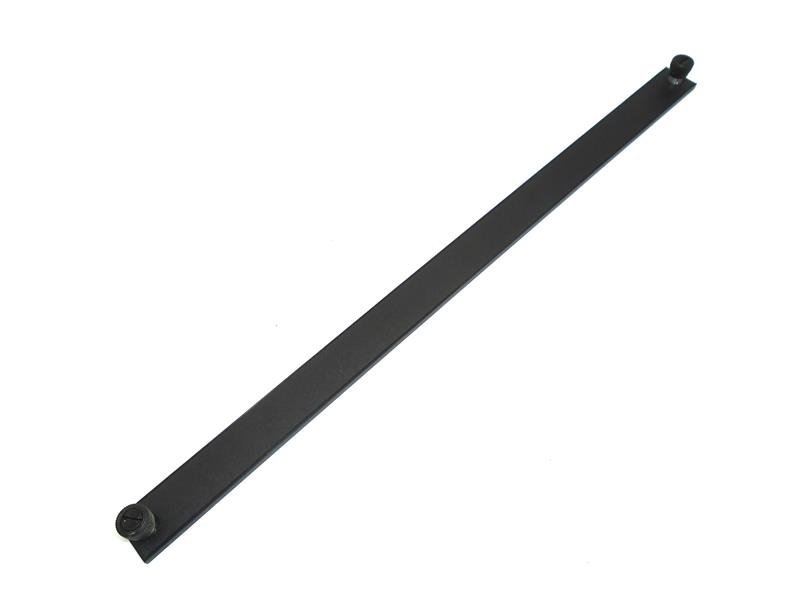

The Triconex 8105 Blank I/O Slot Panel maintains proper airflow and protects unused slots in Tricon system racks and panels. It ensures secure, reliable operation within industrial enclosures.
Mounting Options
The 8105 panel supports flexible installation:
- Rack or panel mounting within NEMA-rated cabinets, providing sufficient clearance for ventilation.
- Optional bases and casters allow cabinet mobility and easy repositioning.
- Multiple cabinets can be bolted together, maintaining full access to front and rear doors.
Slot Cover Functionality
Unused slots must be filled with 8105 Blank I/O Slot Panels to maintain chassis integrity and proper airflow. This prevents dust accumulation and thermal issues within the system.
Heat Management
Effective thermal control improves reliability of Tricon systems:
- For vented and non-vented enclosures, use baffles (Triconex Part Number 2000361-001).
- For high-temperature environments (>122°F / 50°C), implement advanced cooling:
- Louvers and pagoda tops for airflow optimization.
- Enlarged louvers with raised pagoda tops.
- Low-density filters to enhance ventilation.
- Redundant fans with louvers and pagoda tops integrated.
- Include failure detection circuitry for proactive thermal management.
Supported Enclosure Types and Dimensions
| Enclosure Type | Width | Depth | Height |
|---|---|---|---|
| Rittal NEMA 12 | 31.5 in (800 mm) | 31.5 in (800 mm) | 86 in (2,200 mm) |
| Rittal NEMA 12 | 31.5 in (800 mm) | 31.5 in (800 mm) | 78 in (2,000 mm) |
| MarkHon NEMA 1 | 31.5 in (800 mm) | 31.5 in (800 mm) | 85 in (2,160 mm) |
Custom enclosure sizes are available through Triconex engineering support for unique installation requirements.
Installation Guidance
- Ensure adequate clearance for airflow and cable management.
- Follow external termination panel setups as illustrated in system diagrams.
- Secure chassis and terminations within enclosures, aligning with industry and site-specific safety standards.
Key Features and Highlights
- Fits rack or panel-mounted Tricon systems and NEMA enclosures.
- Protects unused slots with 8105 Blank I/O Slot Panels for proper airflow.
- Compatible with multiple cabinet configurations and optional mobility bases.
- Supports advanced heat management solutions for high-temperature environments.
- Maintains system reliability while preventing dust and thermal stress.
Details
| Weight | 1.14 kg |
|---|
