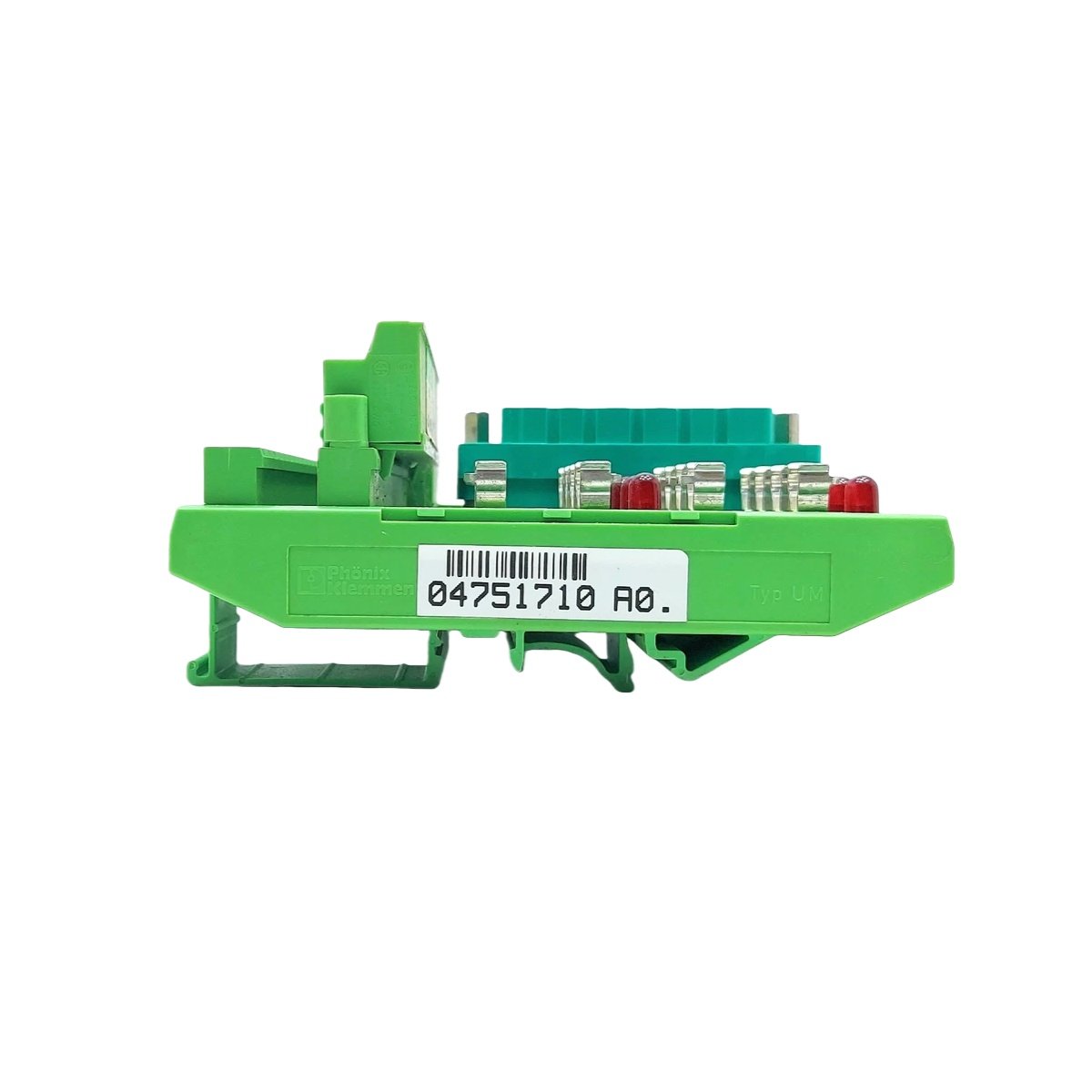

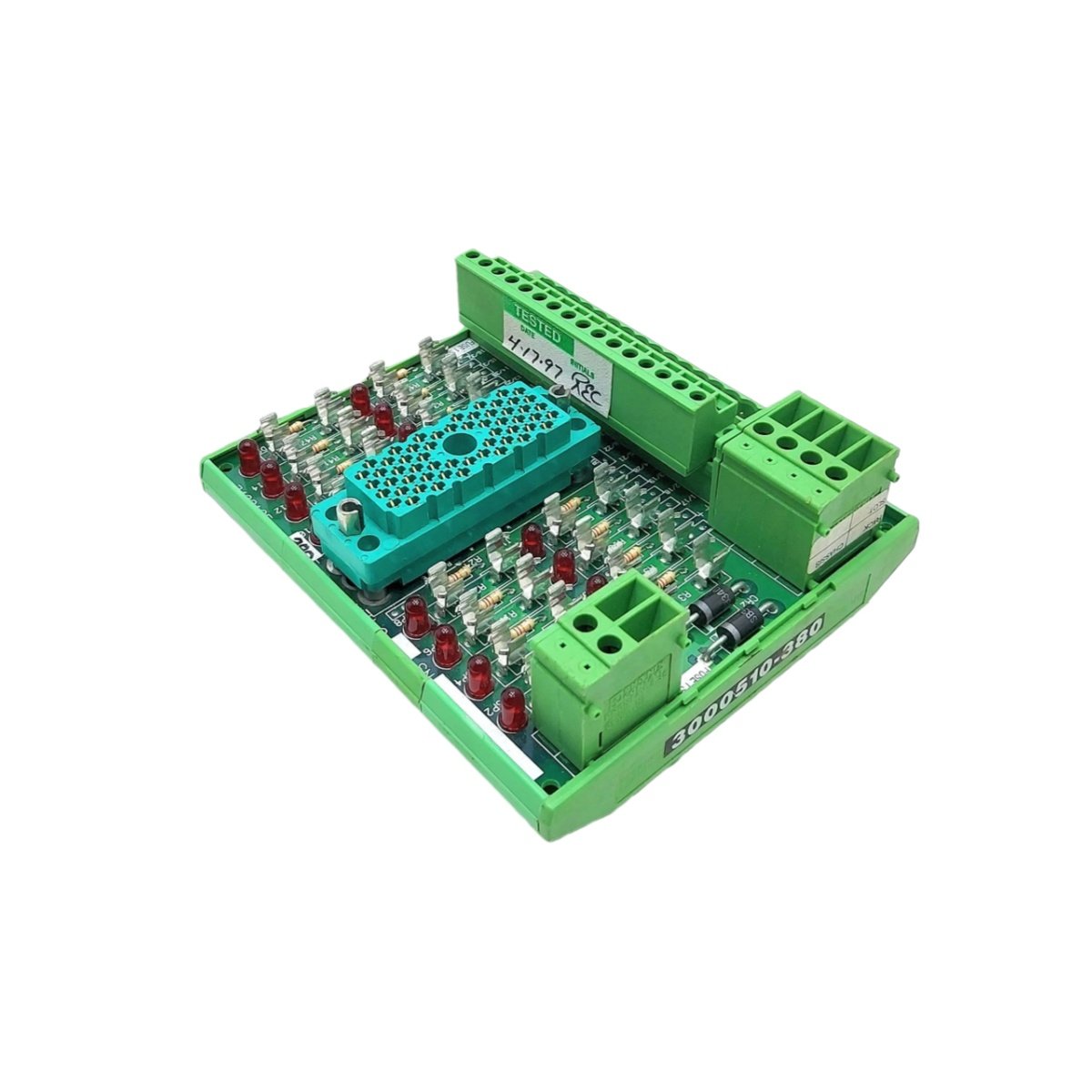

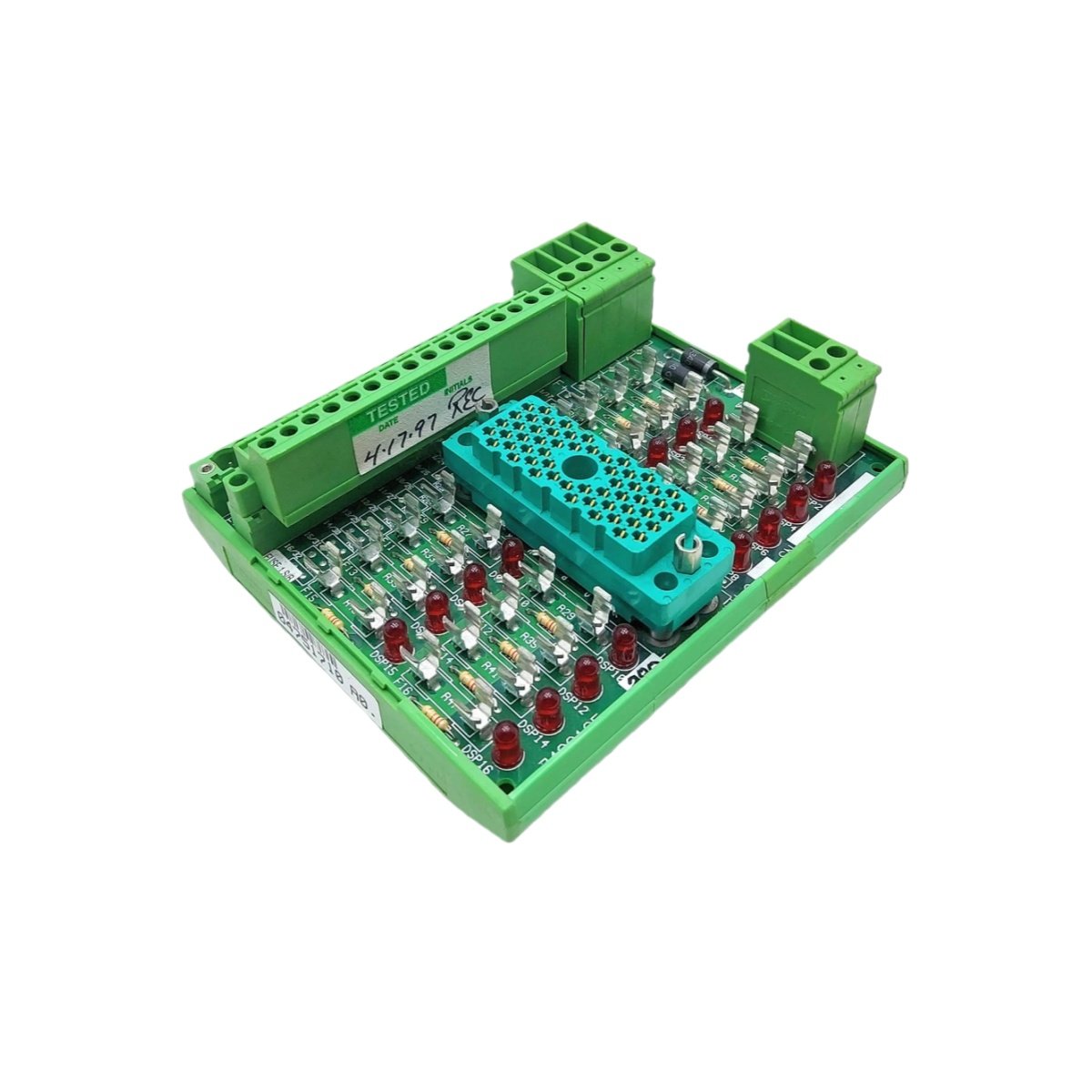

The Triconex 7400165-380 serves as a dedicated terminal board within the Tricon safety instrumented system platform. This field termination assembly provides the physical interface between field sensors and Tricon I/O modules. Specifically, it organizes field wiring for reliable connections in safety-critical applications.
Technical Architecture and Termination Specifications
Engineers require organized and secure field wiring terminations, and the Triconex 7400165-380 delivers through robust construction and clear channel identification. This terminal board features multiple termination points for analog and digital signals from field devices. Additionally, the screw terminals accept standard industrial wiring for reliable long-term connections.
| Specification | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Series | Tricon |
| Part Number | 7400165-380 |
| Product Type | Terminal Board |
| Termination Type | Screw terminals |
| Wire Gauge | Accepts up to 14 AWG |
| Channel Identification | Silkscreened labels per Tricon standard |
| Mounting | Panel mount or DIN rail |
| Dielectric Strength | 1500V AC for one minute |
| Insulation Resistance | 100 Megohms minimum at 500V DC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| External Dimensions | 25.0 x 15.0 x 5.0 cm (9.8 x 5.9 x 2.0 in) approximate |
| Weight | 0.8 kg (1.76 lbs) approximate |
System Integration and Module Compatibility
Connecting field sensors to the Triconex 7400165-380 requires simple termination at the clearly labeled screw terminals. The board interfaces directly with Tricon I/O modules through pre-fabricated cable assemblies. Consequently, the system maintains signal integrity from the field sensor to the safety processor.
The terminal board supports various Tricon analog and digital I/O modules within the ecosystem. Therefore, facilities can standardize on a single termination platform for multiple signal types. Additionally, the 7400165-380 features labeling that matches Tricon module channel assignments for error-free wiring.
Environmental Durability and Installation Benefits
The Triconex 7400165-380 incorporates rugged construction suitable for industrial environments in refining and power generation. Its wide operating temperature range suits both indoor and partially protected outdoor installations. Moreover, the compact dimensions allow efficient use of panel space in crowded control cabinets.
For applications requiring maximum wiring organization, this terminal board provides clearly marked connection points for each channel. Hence, technicians can complete field wiring quickly during initial installation or retrofit projects. Ultimately, selecting the 7400165-380 ensures dependable field wiring termination for Tricon safety instrumented systems worldwide.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
