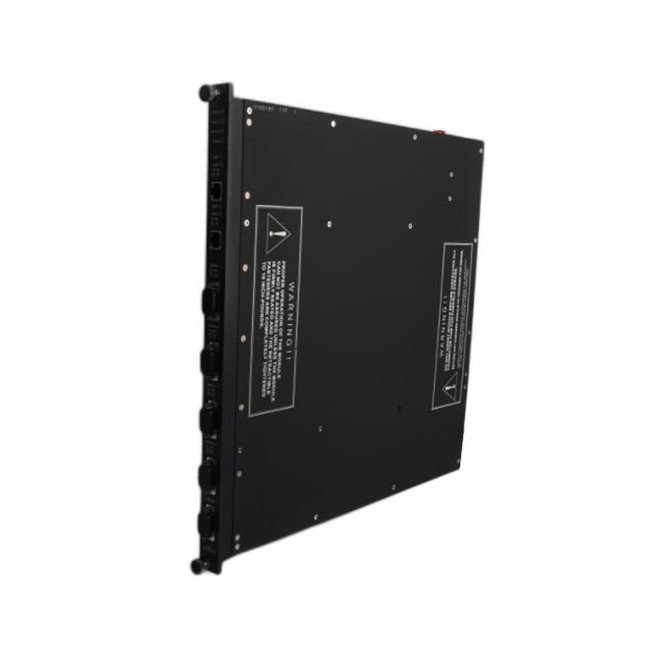

The Triconex 4351A Communication Module enables Tricon systems (v10.0 and later) to communicate reliably with external devices and networks. Moreover, it supports TriStation, other controllers, Modbus devices, and external hosts over Ethernet. This module ensures seamless connectivity for industrial automation and safety-critical applications.
Key Features
- Ports:
- 4 serial ports (RS-232/RS-485, DB-9 connectors)
- 2 network ports (copper or fiber-optic depending on model)
- 1 debug port for Triconex diagnostics
- Serial Port Configuration:
- Ports can operate as Modbus master or slave.
- Port #1 supports Modbus or Trimble GPS.
- Port #4 supports Modbus or TriStation.
- Modbus Compatibility:
- Requires alias numbers for variable mapping.
- Supports standard Modbus functions.
- Network Protocols:
- TCP/IP, Modbus TCP/IP, TSAA, SNTP, and more.
- NET 1 supports Peer-to-Peer and Time Synchronization.
- Hot Swap Capability: Faulty modules can be replaced online, however, the hot-spare feature is unavailable.
- System Limits:
- Maximum 4 TCMs per system in two logical slots.
- Maximum 32 Modbus masters/slaves across all ports.
Specifications
| Feature | Specification |
|---|---|
| Model Numbers | 4351A, 4352A, 4353, 4354 |
| Serial Ports | 4, RS-232/RS-485, DB-9 connectors |
| Network Ports | Copper Ethernet (4351A, 4353): 2 ports, 10/100BaseT, RJ-45 connectors Fiber Optic Ethernet (4352A, 4354): 2 ports, 100 Mbps, MTRJ connectors, 62.5/125 µm fiber cables |
| Port Isolation | 500 VDC |
| Supported Protocols | TriStation, Modbus, TCP/IP, ICMP, SNTP, TSAA, Trimble GPS, Peer-to-Peer, Peer-to-Peer Time Sync, Jet Direct |
| Modbus Functions Supported | 01: Read Coil Status 02: Read Input Status 03: Read Holding Registers 04: Read Input Registers 05: Modify Coil Status 06: Modify Register Content 07: Read Exception Status 08: Loopback Diagnostic Test 15: Force Multiple Coils 16: Preset Multiple Registers |
| Communication Speed | Copper Ethernet: 10/100 Mbps Fiber Ethernet: 100 Mbps Serial Ports: up to 115.2 Kbps per port |
| Status Indicators | PASS, FAULT, ACTIVE, FIRM LINK (1 per network port), TX (Transmit, 1 per port), RX (Receive, 1 per port) |
Applications
The TCM module facilitates communication in safety-critical and industrial automation systems. For example, it integrates legacy Modbus devices with Tricon systems while maintaining high availability and reliability.
Notes
- Modules integrate seamlessly with Tricon systems to provide reliable communication.
- The serial and network ports support both legacy and modern protocols.
- Status indicators provide clear feedback for system diagnostics and troubleshooting.
- Additionally, hot-swap capability reduces downtime during maintenance.
Image Placeholder
Insert the module image here using WordPress Media Library for best display.
Details
| Weight | 2.2 kg |
|---|
