The Triconex 4000103-520 functions as a dedicated communication cable within the Tricon safety instrumented system platform. This precision assembly provides reliable data transmission between Tricon modules, programmers, and peripheral devices. Specifically, it maintains signal integrity for critical communication paths in SIL 3 applications.
Technical Architecture and Physical Specifications

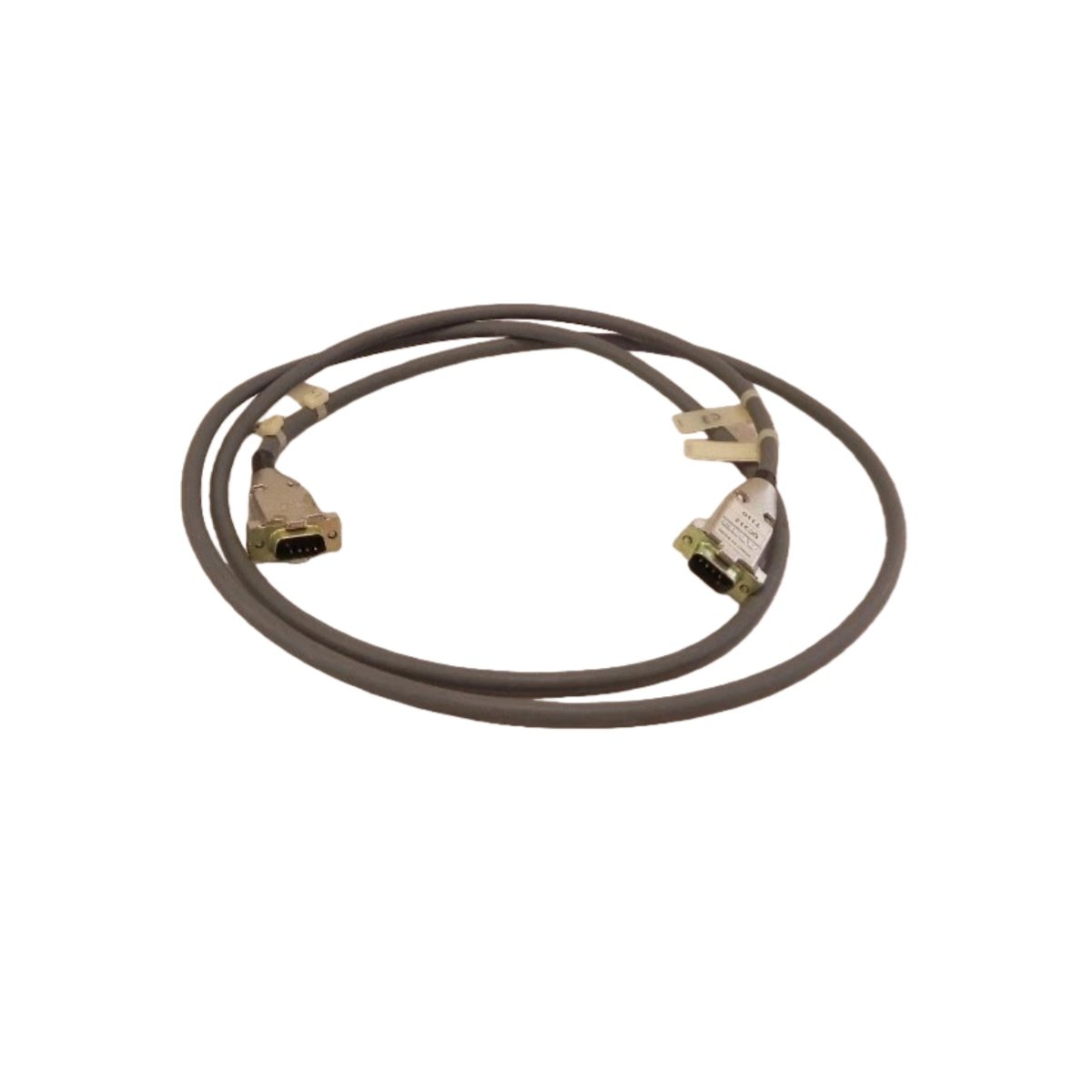

Engineers require absolute signal integrity for safety system communications, and the Triconex 4000103-520 delivers through high-quality construction and robust shielding. This cable assembly features precision connectors at both ends for secure mating with Tricon communication ports. Additionally, the shielded construction rejects electromagnetic interference from nearby power and control wiring.
| Specification | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Series | Tricon |
| Part Number | 4000103-520 |
| Product Type | Communication Cable Assembly |
| Connector Type | D-subminiature with locking screws |
| Contact Material | Gold-plated |
| Shielding | Braided copper with foil wrap |
| Jacket Material | Flexible PVC, oil-resistant |
| Wire Gauge | 24 AWG stranded tinned copper |
| Conductor Count | Multiple with drain wire |
| Temperature Rating | -20°C to +80°C |
| Voltage Rating | 30V DC maximum |
| Outer Diameter | 6.0 mm (0.24 inches) typical |
| Weight | 0.3 kg (0.66 lbs) |
Application and System Connectivity
Connecting the Triconex 4000103-520 between system components requires simply mating the D-sub connectors to their corresponding ports. This cable typically interfaces Tricon main processors with engineering workstations for programming and diagnostics. Consequently, engineers can perform system configuration and troubleshooting without special adapters.
The assembly also serves as a connection path between Tricon chassis in multi-rack configurations. Therefore, facilities can expand I/O capacity across multiple cabinets while maintaining high-speed communication. Additionally, the locking screws on each connector prevent accidental disconnection from vibration or maintenance activities.
Construction Quality and Environmental Durability
The Triconex 4000103-520 incorporates braided copper shielding to maintain signal integrity in electrically noisy industrial environments. Its flexible PVC jacket resists oils and industrial chemicals commonly found in refining and chemical processing facilities. Moreover, the molded strain relief at each connector prevents wire breakage from repeated flexing and installation stress.
For applications requiring reliable communication in harsh conditions, this cable maintains performance across the full temperature range. Hence, safety systems receive accurate data without corruption from environmental factors or electrical interference. Ultimately, selecting the 4000103-520 ensures dependable connectivity for Tricon safety system programming, diagnostics, and inter-chassis communication worldwide.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
