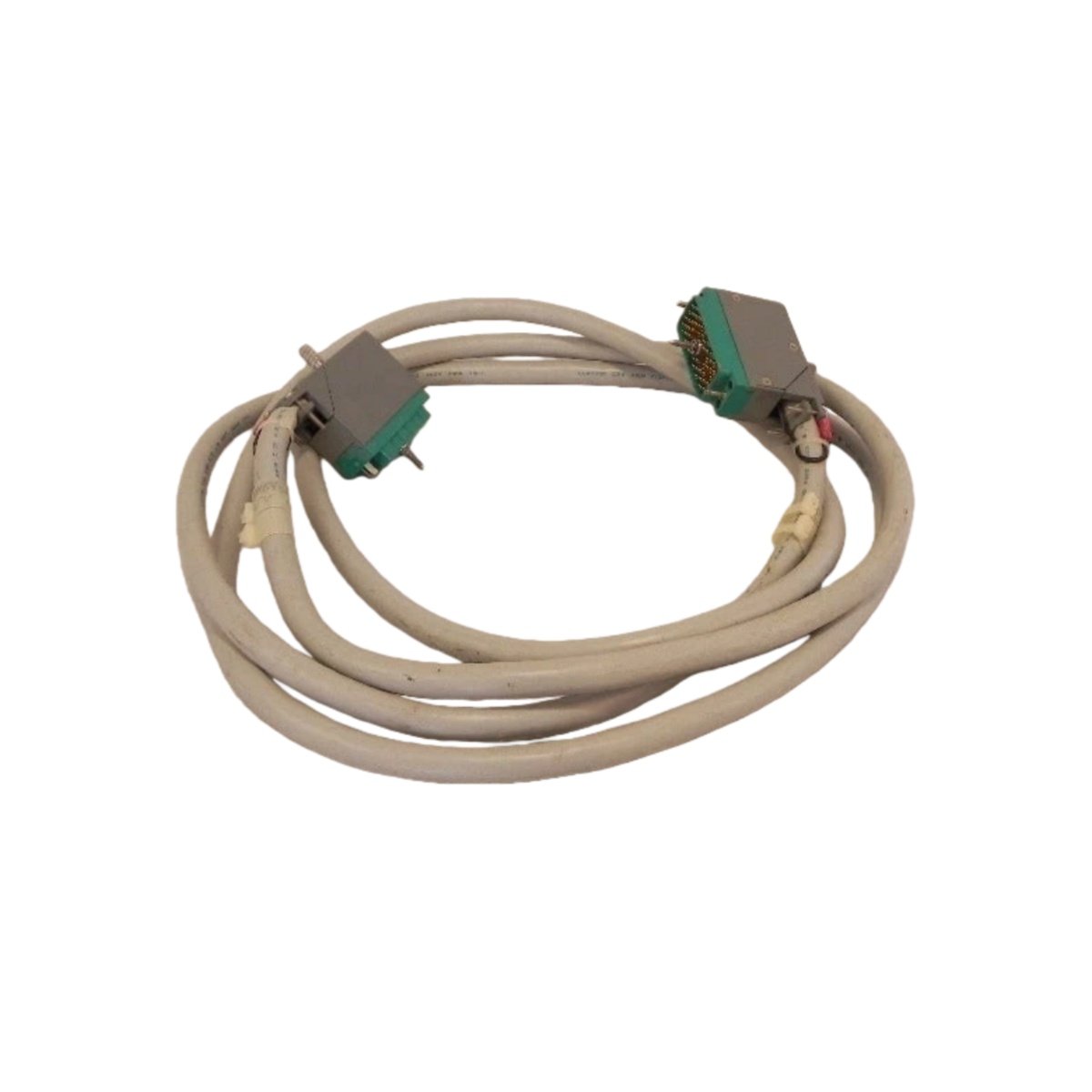

Technical Specifications of the Triconex 4000058-110 Cable Assembly
This cable carries 115V AC power between modules without signal degradation. You will find its 10-foot length ideal for standard cabinet layouts. The assembly uses 18 AWG copper conductors for low resistance. Each end features a keyed connector to prevent reverse insertion. The cable’s outer jacket resists oil and chemical exposure. A foil shield protects against electromagnetic interference from nearby equipment.
| Parameter | Specification |
|---|---|
| Connector Type | Male to Female |
| Cable Length | 10 feet (3.05 meters) |
| Voltage Rating | 115V AC |
| Conductor Gauge | 18 AWG stranded copper |
| Shielding | Foil shield with drain wire |
| Jacket Material | PVC, oil-resistant |
| Operating Temperature | -20°C to +80°C |
Physical Characteristics and Build Quality
The Triconex 4000058-110 weighs approximately 0.45 kilograms for easy handling. Its cable diameter measures 7.6 mm for flexible routing. The male connector includes a threaded locking collar for secure attachment. Female connectors feature strain relief molding to prevent wire fatigue. This assembly contains no internal energy storage components. You can bend the cable to a 50 mm minimum radius without damage. The entire unit meets UL and CSA safety standards.
Installation and Compatibility Information
Schneider Electric’s Triconex brand manufactures this interconnect cable. The Triconex 4000058-110 connects power supplies to I/O modules directly. You should verify compatibility with your existing Tricon chassis. This cable replaces older part numbers like 4000058-010 seamlessly. For similar industrial automation interconnect solutions, see reference components from the same family. The assembly requires no special tools for field installation.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
