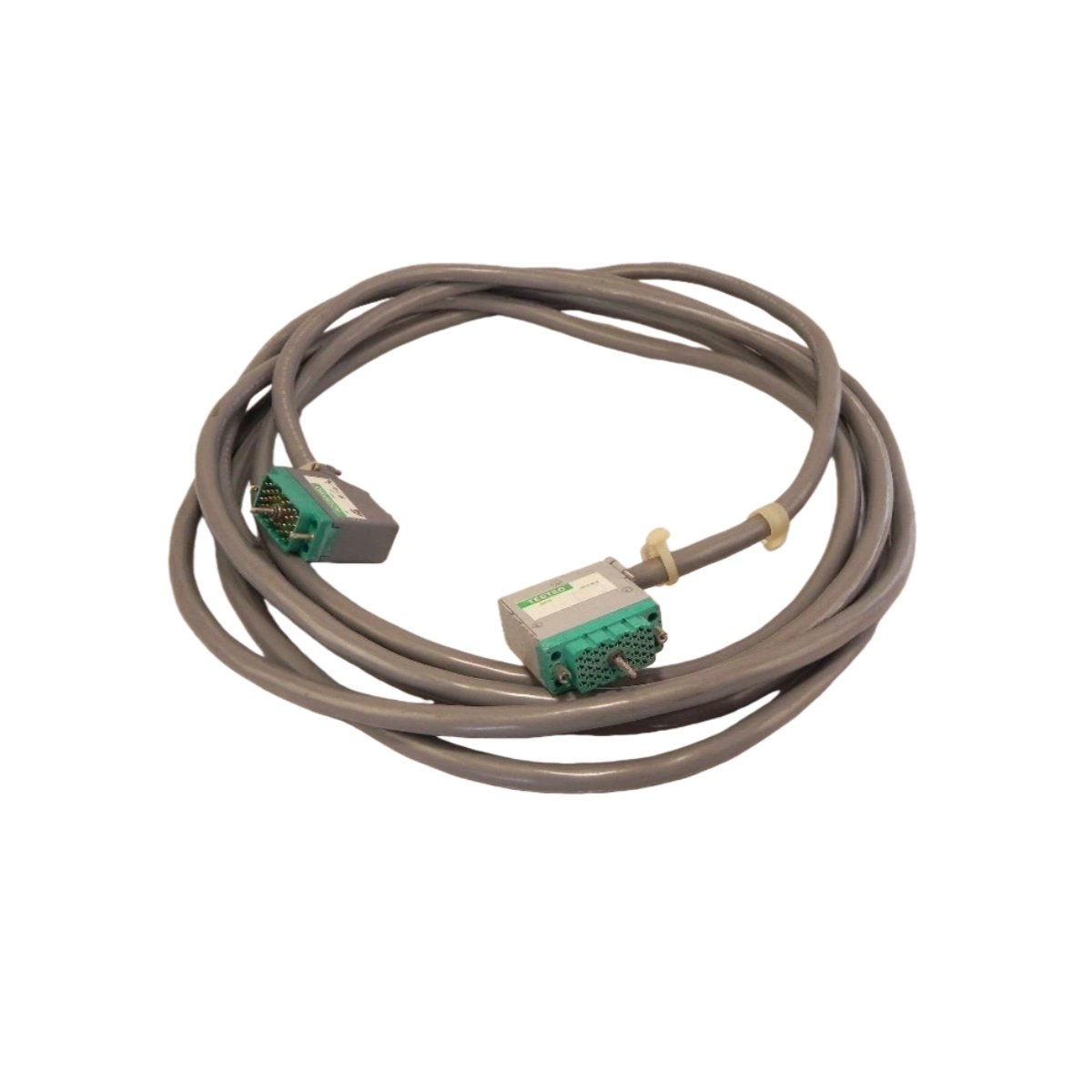

The 4000043-320 cable assembly provides reliable interconnection for Triconex safety instrumented systems. Triconex engineered this cable to maintain signal integrity across critical communication paths. It establishes secure connections between I/O modules and termination assemblies. You can deploy this assembly in both new installations and system upgrade projects.
Technical Specifications
The 4000043-320 combines durable construction with consistent electrical performance. The following parameters define its technical capabilities.
| Specification | Detail |
|---|---|
| Model | 4000043-320 |
| Manufacturer | Triconex |
| Category | Cable Assembly |
| Cable Type | Shielded multi-conductor |
| Length | 3.2 meters |
| Connector Type 1 | 50-pin D-sub female |
| Connector Type 2 | 50-pin D-sub female |
| Shielding | Braided copper with foil wrap |
| Conductor Gauge | 26 AWG |
| Weight | 0.45 kg |
| Operating Temperature | -40°C to 85°C |
Physical Design and Construction
The cable measures 3.2 meters in length for flexible routing between components. It features shielded multi-conductor construction with braided copper shielding. The 4000043-320 includes foil wrap for additional electromagnetic interference protection. This dual shielding approach preserves signal integrity in electrically noisy environments.
Connectivity and Integration
Both ends terminate with 50-pin D-sub female connectors for universal compatibility. This cable connects Triconex I/O modules to field termination assemblies reliably. The 4000043-320 establishes secure signal paths for all input and output channels. You can route this assembly through cable trays or along panel backplanes.
Signal Integrity and Noise Immunity
The braided copper shielding provides excellent protection against electromagnetic interference. Foil wrap adds an extra layer of defense against high-frequency noise sources. Furthermore, the 4000043-320 maintains consistent impedance across all signal conductors. This consistency ensures reliable data transmission in critical safety applications.
Application Scenarios
Engineers select this cable assembly for connecting Triconex I/O chassis to termination panels. It serves as the primary interconnect in safety instrumented system installations. The 4000043-320 also provides replacement cabling for existing Triconex systems. For similar high-quality industrial components, you can explore options like the RMS TSG TZ C static trip unit from the broader automation ecosystem.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
