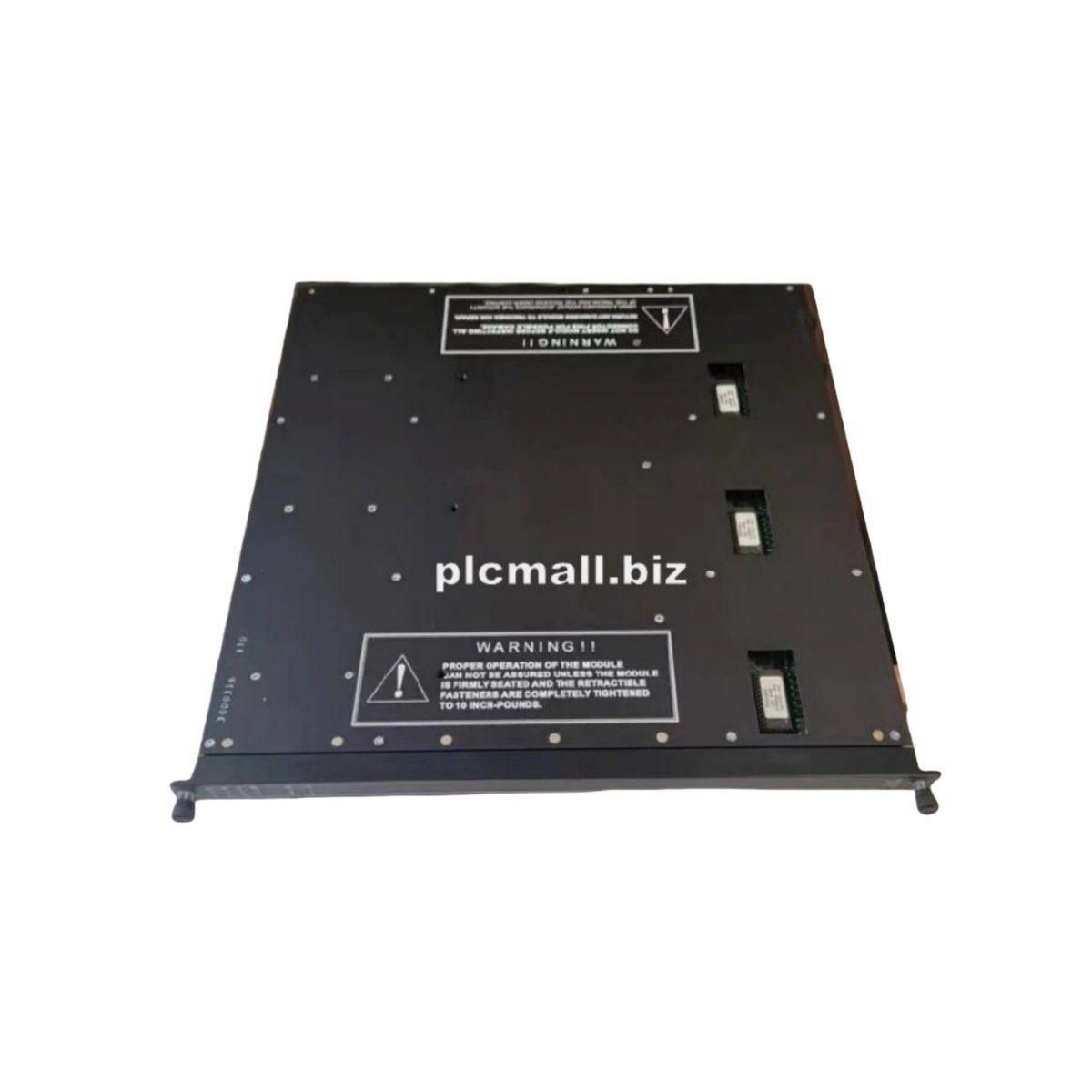

The Triconex 3805E functions as a high-integrity analog output module for the Triconex Triple Modular Redundant (TMR) safety system. This unit provides precise 4-20 mA control signals to final elements in safety-instrumented functions. Consequently, it ensures reliable and accurate output delivery for critical process safety applications.

Core Technical Specifications

We engineered the Triconex 3805E for fault-tolerant operation in safety systems demanding the highest integrity. The table below details its essential physical and electronic parameters:

Triple Modular Redundant Architecture for Safety

The 3805E employs Triconex’s proven TMR architecture with three independent, isolated channels on the module. Each of the three legs processes the output signal simultaneously and independently. Therefore, a single component failure will not cause the loss of the analog output, maintaining the safety function.

High-Resolution 4-20 mA Control

This module provides eight fully isolated 4-20 mA output channels with 12-bit resolution. It drives loads up to 750 Ohms, accommodating most valve positioners, I/P transducers, and analog indicators. As a result, the Triconex 3805E delivers precise and reliable positioning for critical safety valves.

Continuous Online Diagnostics

The 3805E performs continuous self-testing and loop monitoring during normal operation without interrupting outputs. It checks for open circuits, short circuits, and out-of-range conditions on every channel. Consequently, it detects faults immediately and alerts the system while the output remains valid.

Comprehensive Channel Isolation

Each output channel features 1500 Vrms isolation from other channels and from the backplane logic. This prevents any single field wiring fault from affecting other outputs or the main processor. Hence, the module maintains the highest level of fault containment required for safety applications.

Seamless Integration with Triconex Systems

You install the Triconex 3805E directly into any I/O slot of a Tricon or Trident chassis. The TMR backplane communicates with all three legs of the module, voting on output commands. Therefore, programming and configuration integrate seamlessly with Triconex engineering tools.

Suitable for SIL 3 Applications

Engineers commonly use this module in Safety Instrumented Systems (SIS) rated up to SIL 3. Its TMR design and comprehensive diagnostics meet the stringent requirements of IEC 61511. As a result, you can deploy the 3805E in the most critical process safety functions.
