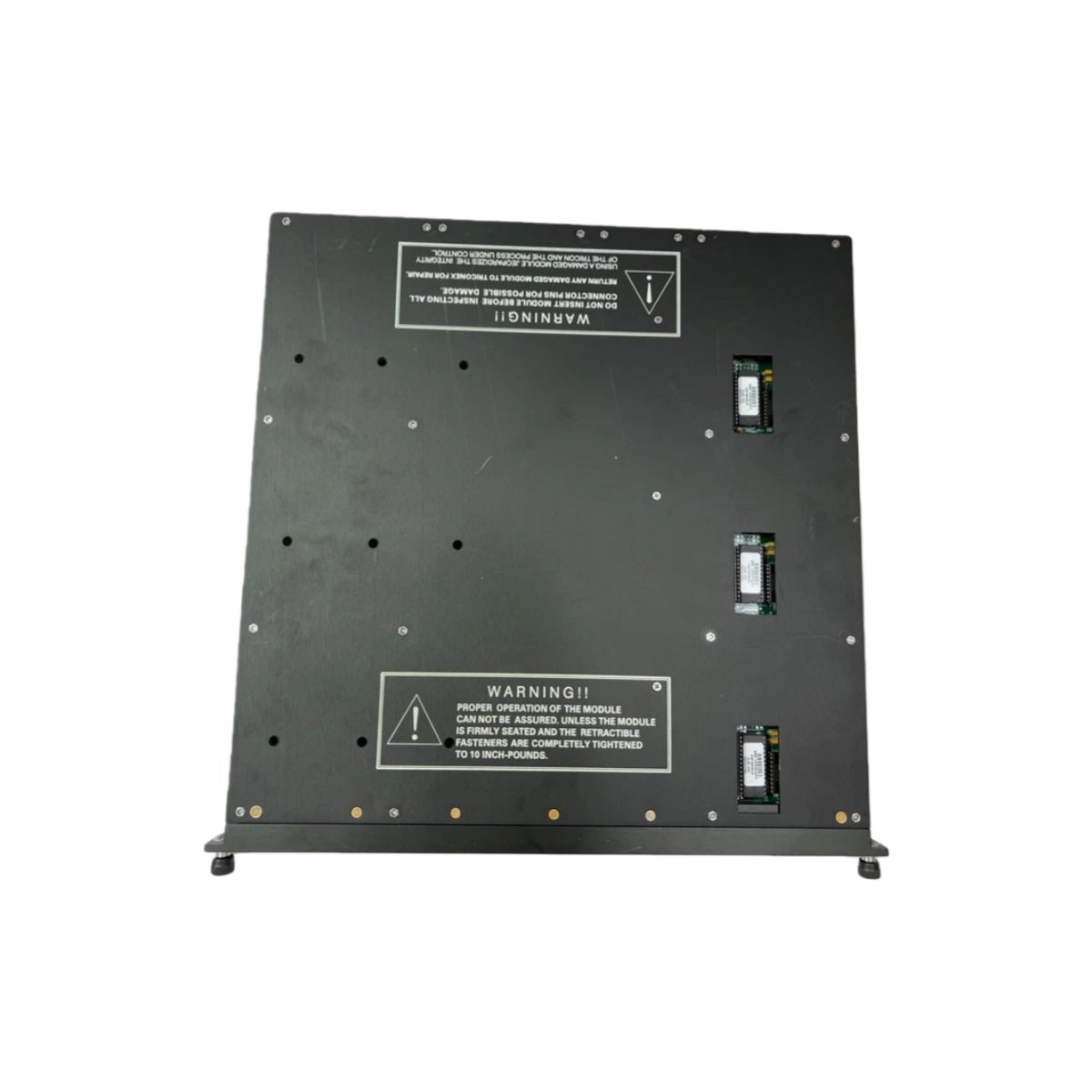

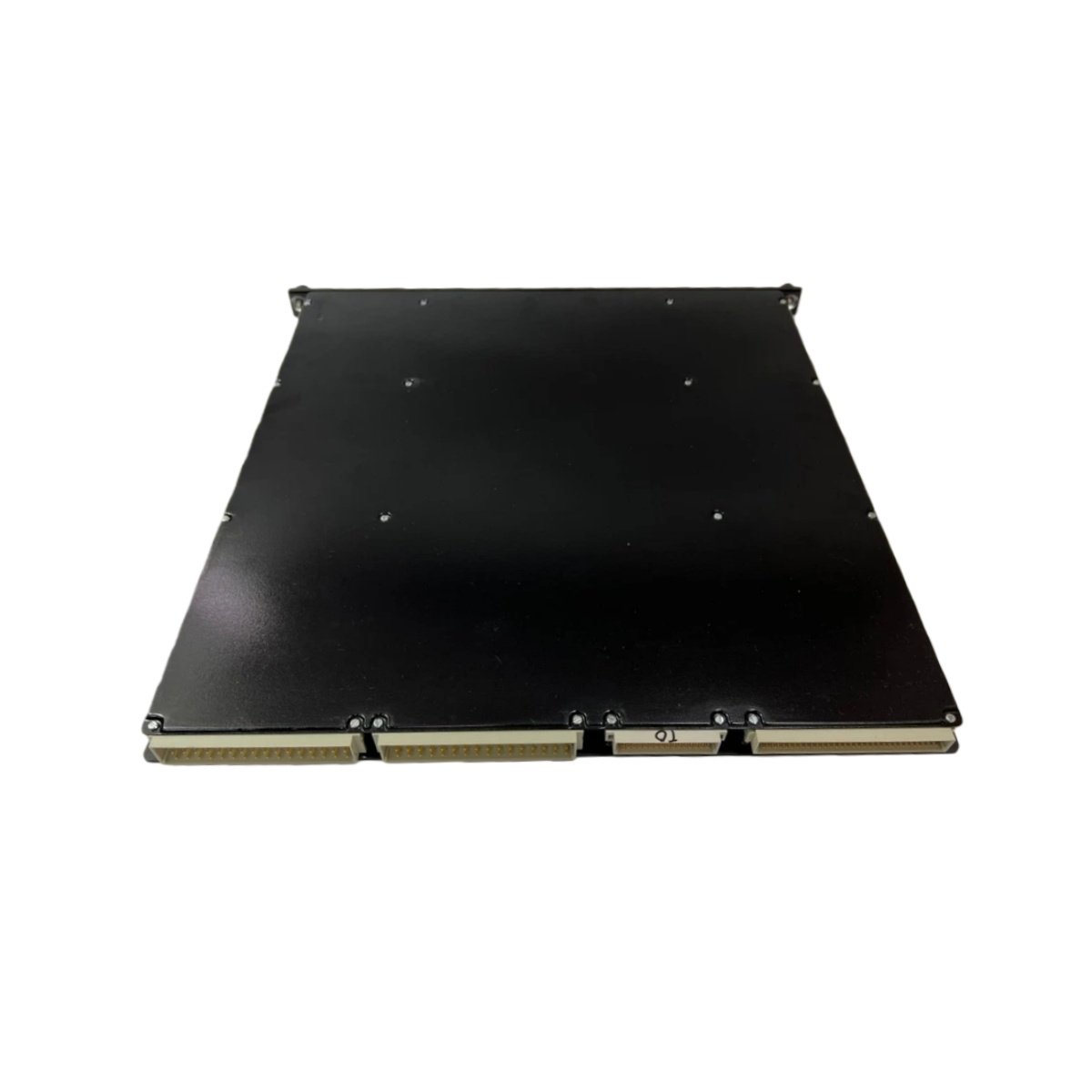

This digital input module forms the foundation of Triconex safety instrumented systems. It acquires field contact status with exceptional reliability for critical processes. Industrial facilities trust this unit for emergency shutdown and fire & gas applications.
Technical Specifications & Hardware Overview
Engineers value this module for its robust electrical characteristics and mechanical durability. The design accommodates both TMR and simplex configurations with ease.
| Parameter | Specification |
|---|---|
| Model | 3704E |
| Manufacturer | Triconex |
| Category | Digital Input Module |
| Input Channels | 32 points per module |
| Voltage Range | 24 VDC nominal (18–32 VDC) |
| Input Current | 5 mA typical per channel |
| Isolation Voltage | 1500 VDC between field and logic |
| Physical Size | 10.5 inches (height) x 1.5 inches (width) |
| Weight | Approximately 1.6 lbs (0.73 kg) |
Advanced Circuitry & Energy Characteristics
This module utilizes optical isolation for each input channel. A built-in energy storage circuit maintains stable operation during transient voltage dips. The 3704E communicates with the main processor via a dedicated backplane interface. Consequently, it delivers deterministic scan times for safety-critical loops.
Installation and Mechanical Layout
The physical construction meets rigorous industrial standards for vibration resistance. A single printed circuit board assembly contains all active components. This unit slides directly into standard Triconex chassis slots without special tools. Moreover, the compact width enables high channel density within limited cabinet space.
Field Wiring and Diagnostics
Field connections terminate through a removable front-accessible terminal block. Each channel includes individual LED indicators for real-time status monitoring. The module performs continuous self-diagnostics during normal operation. As a result, it detects open-wire conditions and short-circuit faults immediately.
Application in Safety Systems
This 3704E module supports online replacement without system shutdown. It integrates seamlessly with Triconex main processors for coordinated logic execution. For similar industrial control components, you will find comparable reliability in static trip units like RMS-TSG-TZ-C from various manufacturers. Therefore, this module serves as a cornerstone for modern safety instrumented systems.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
