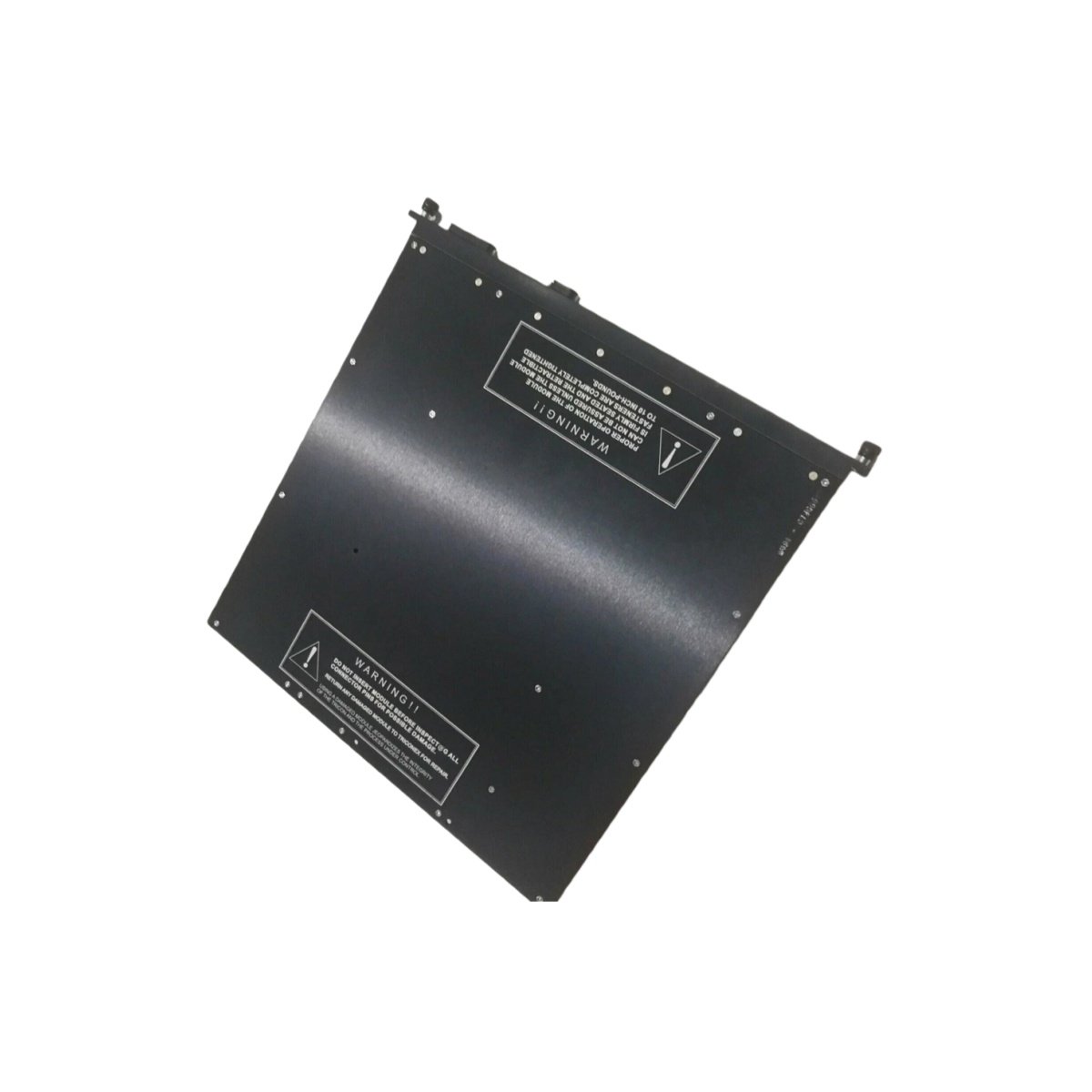

The 3664 dual digital output module delivers fault-tolerant switching for Triconex safety instrumented systems. Triconex engineered this module with dual-channel architecture for critical control applications. It provides redundant output paths to ensure continuous operation during component failure. You can deploy this unit in applications demanding the highest level of system availability.

Technical Specifications

The 3664 combines redundant output architecture with robust electrical characteristics. The following parameters define its technical capabilities.

Physical Design and Environmental Tolerance

The 3664 withstands operating temperatures from -40°C up to 70°C. It also survives storage conditions ranging from -40°C to 85°C. This module tolerates humidity levels reaching 95% without condensation formation. Such environmental resilience makes it suitable for extreme industrial locations.

Redundant Output Architecture

This dual digital output module features eight redundant channel pairs totaling 16 outputs. Each pair provides two independent switching paths for critical field devices. The 3664 automatically switches between paths upon detecting a failure condition. You can connect safety solenoids, shutdown valves, and critical contactors to these outputs.

Isolation and Diagnostic Capabilities

The module provides 1500 V AC isolation between field circuits and logic components. This isolation protects the control system from electrical disturbances and surges. Furthermore, the 3664 includes comprehensive diagnostics for each output channel. These diagnostics detect open circuits, short circuits, and stuck output conditions in real time.

Integration and Power Management

The unit communicates through the Triconex backplane bus for deterministic data exchange. It operates on a 24 V DC supply with typical consumption of 15 watts. The 3664 integrates seamlessly with Triconex main processors and redundant I/O chassis. This power-efficient design supports high-density configurations without thermal concerns.

Application Scenarios

Engineers select this module for safety instrumented systems requiring SIL 3 compliance. It excels in emergency shutdown applications for oil and gas facilities. The 3664 also performs reliably in turbine control and pipeline protection systems. For similar high-quality automation components, you can explore options like the RMS TSG TZ C static trip unit from the broader industrial ecosystem.
