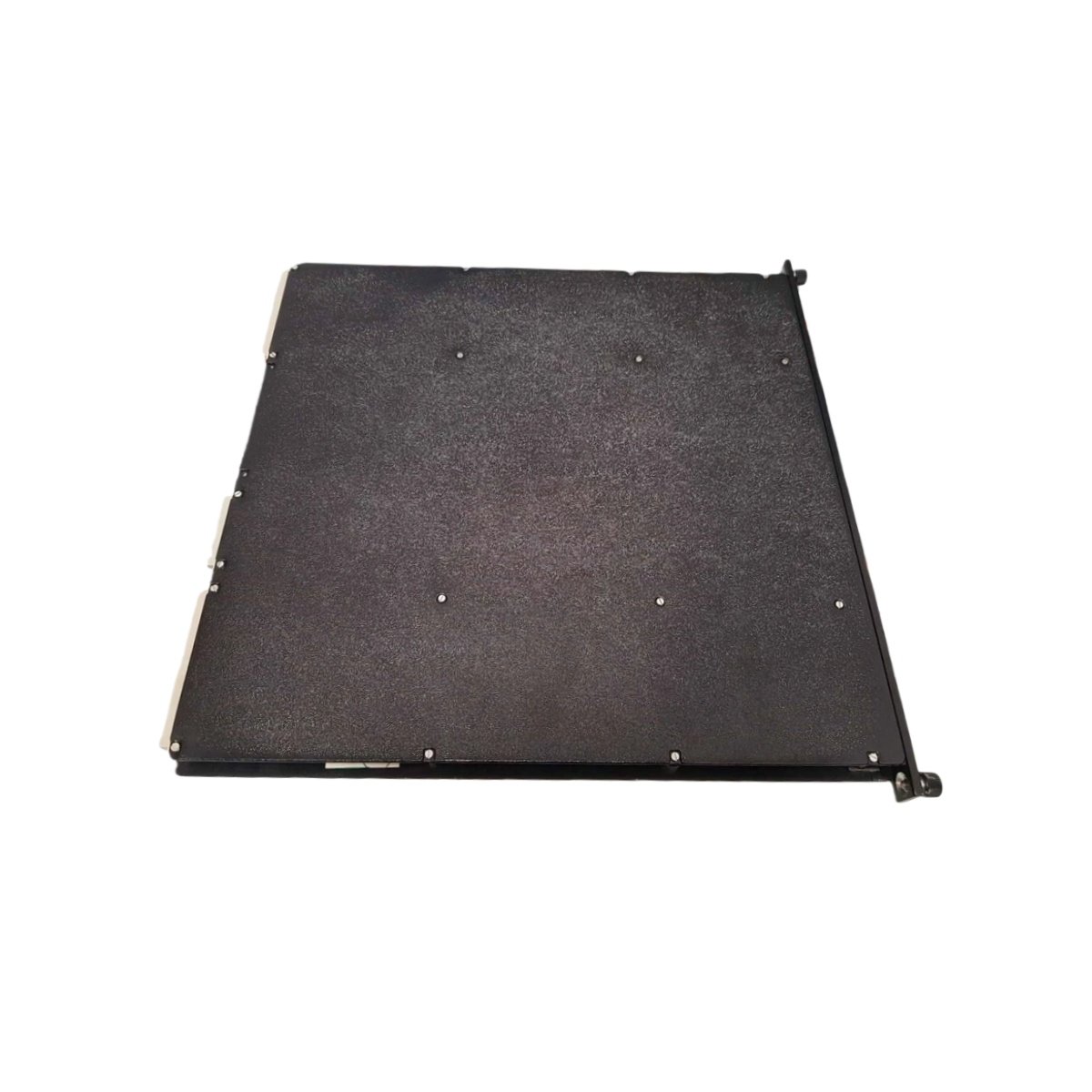

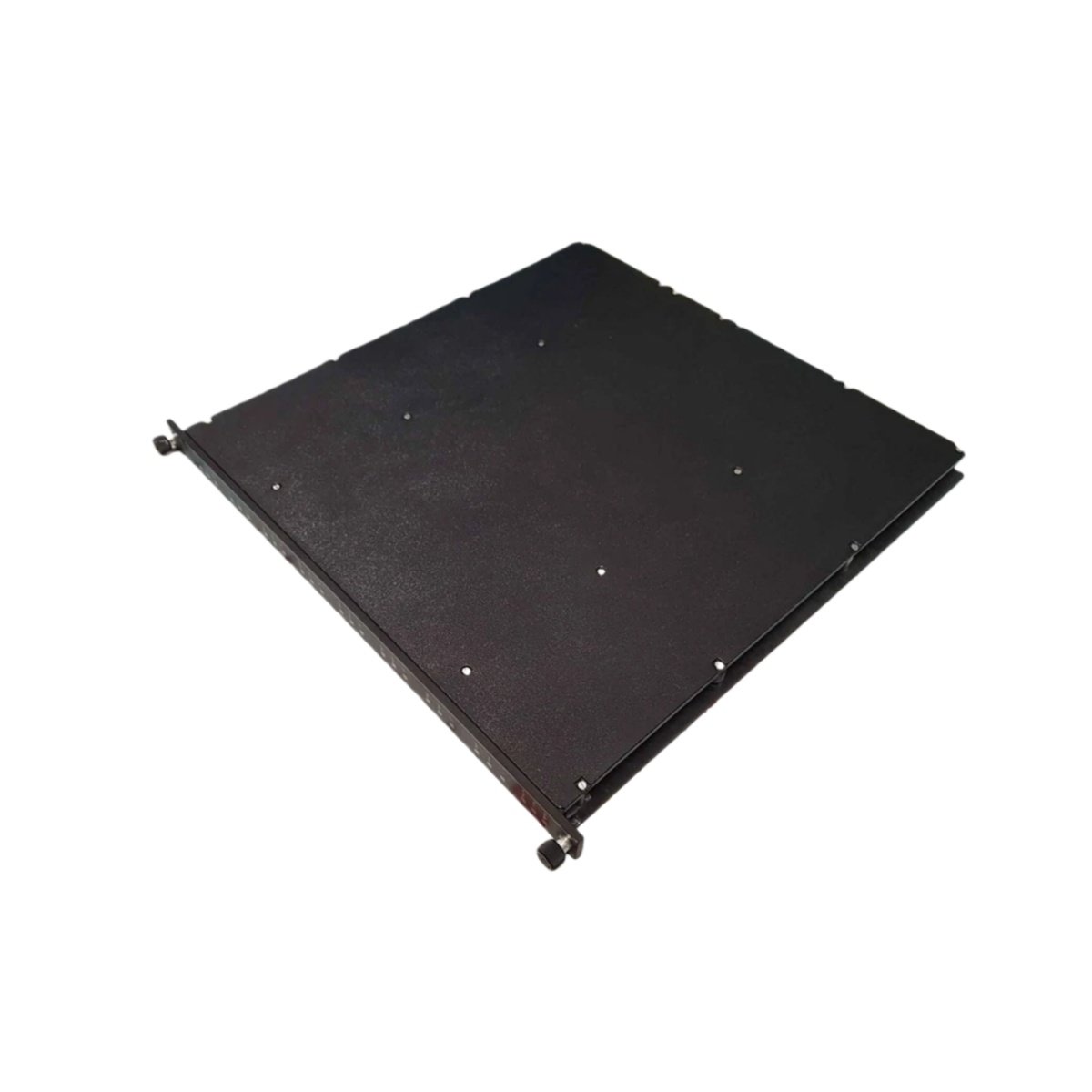

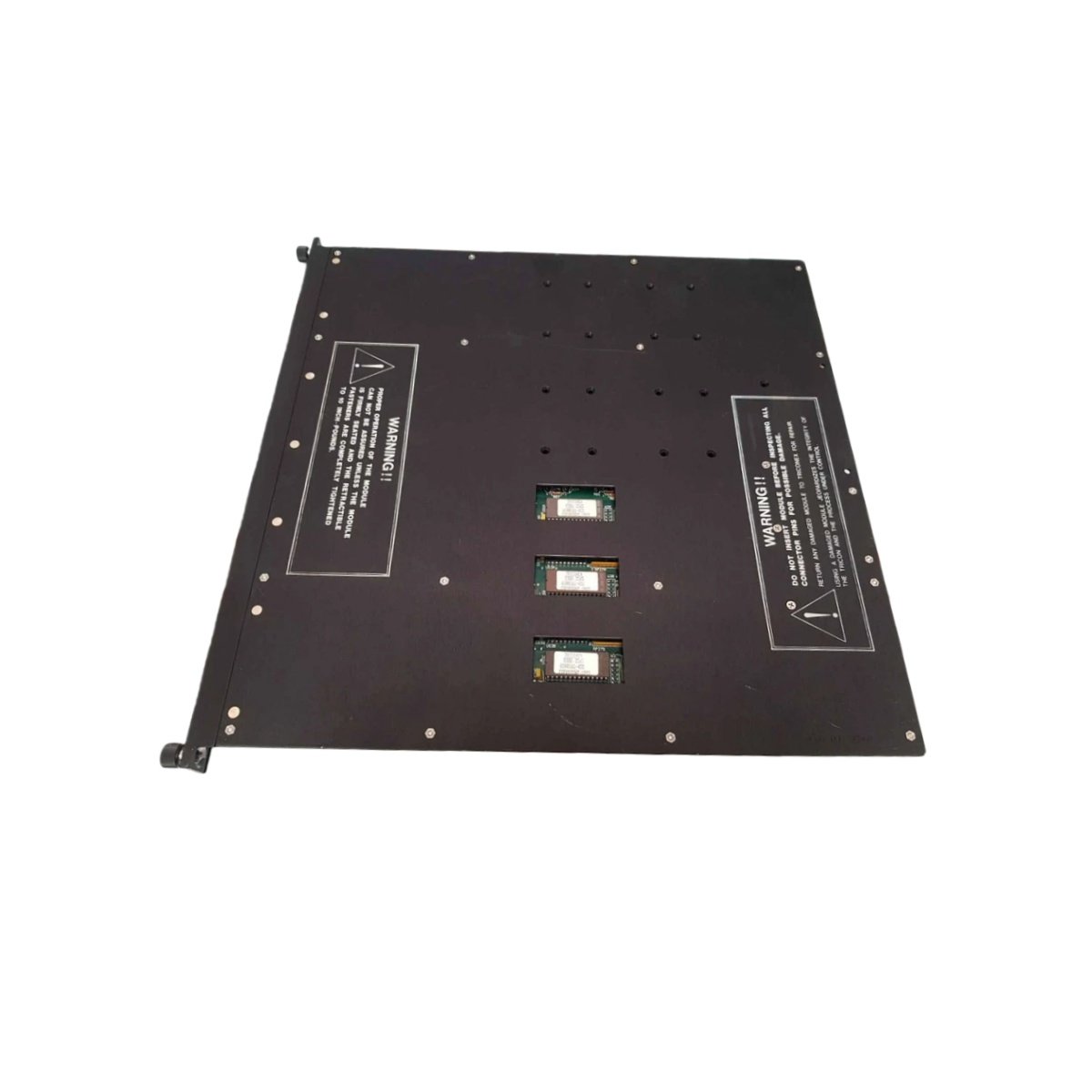

The Triconex 3614E functions as a supervised digital output module within the Tricon safety instrumented system platform. This module provides discrete control signals to field devices while continuously monitoring output circuit integrity. Specifically, it supports Triple Modular Redundant architecture with advanced diagnostics for SIL 3 applications.

Technical Architecture and Output Specifications

Engineers require absolute certainty about output states in safety-critical applications, and the Triconex 3614E delivers through comprehensive supervision and diagnostic coverage. This module features 32 digital output channels, each capable of switching 24V DC loads with built-in line monitoring. Additionally, the supervision circuitry detects open wires, shorts, and stuck-on conditions without affecting normal operation.

Advanced Supervision and System Integration

Integrating the Triconex 3614E into existing Tricon safety systems requires simple insertion into any available I/O slot. The module communicates simultaneously with all three main processors, sending output commands and receiving diagnostic data through dedicated backplane paths. Consequently, the system knows the exact status of every field wiring circuit at all times.

The supervision feature applies a small test current during output off-states, checking wire continuity without energizing loads. Therefore, technicians receive immediate notification of broken field wiring before a demand occurs. Additionally, the 3614E supports online replacement, allowing module changeout without shutting down the process.

Operational Reliability and Environmental Durability

The Triconex 3614E incorporates rugged construction suitable for extreme industrial environments in refining and power generation. Its conformal coated circuit boards resist humidity, vibration, and corrosive atmospheres common in process plants. Moreover, the operating temperature range of -20°C to +60°C suits both indoor and outdoor installations without additional climate control.

For applications requiring maximum diagnostic coverage, this module provides comprehensive supervision exceeding 99% of dangerous failure detection. Hence, any output or wiring fault triggers immediate alerts while the redundant architecture maintains safe operation. Ultimately, selecting the 3614E ensures dependable supervised digital output control for safety instrumented systems in critical process applications worldwide.
