Overview

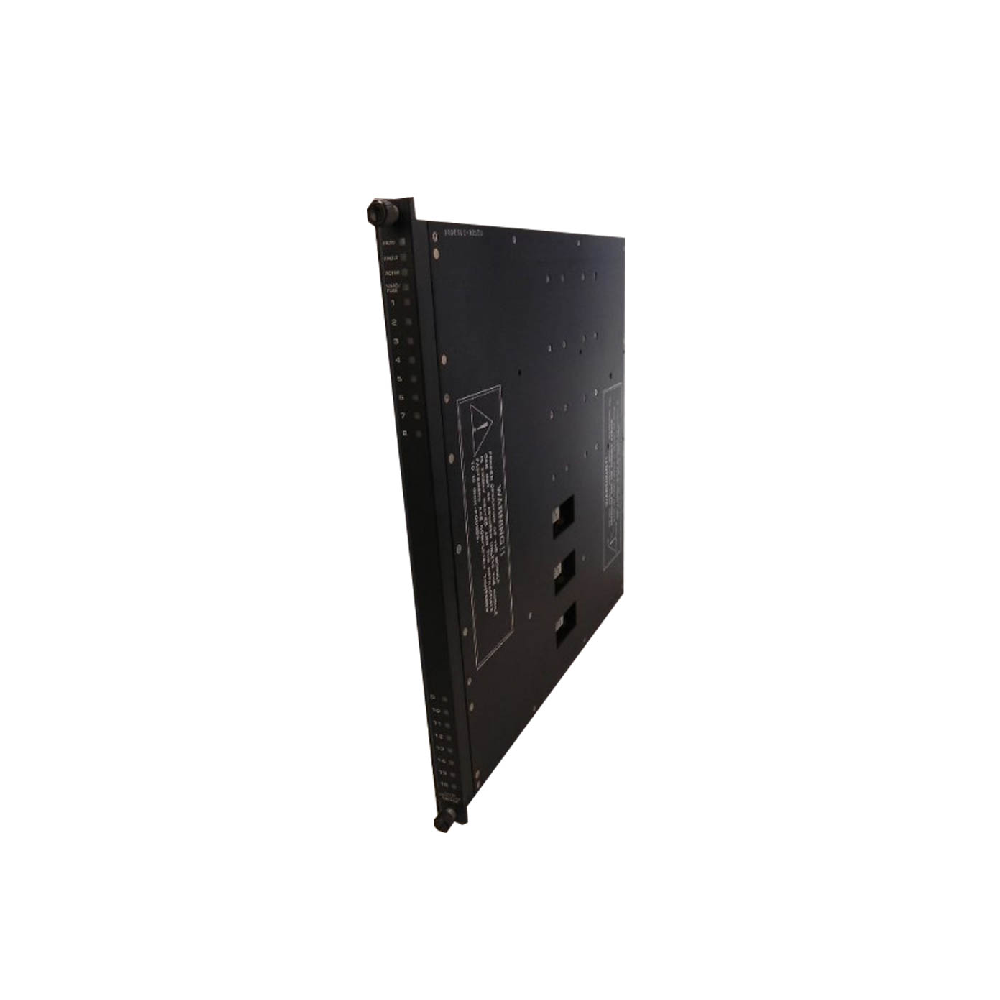

The Triconex 3604E TMR Digital Output Module delivers fault-tolerant performance for critical systems using triple modular redundancy and advanced diagnostics. Moreover, it ensures continuous operation even under single or certain multiple fault conditions.
Functional Highlights
Triple Modular Redundancy (TMR): Processes outputs from three main processors, voting through quadruplicated circuitry for maximum reliability.
Voltage-Loopback Circuit: Independently verifies each output switch operation and triggers LOAD/FUSE alarms for mismatched states.
Hot-Spare Capability: Allows online replacement of faulty modules without disrupting system performance.
Diagnostics & Indicators: Monitors channels and circuits with PASS, FAULT, ACTIVE, and LOAD/FUSE indicators ensuring safe operation.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | 3604E |
| Nominal Voltage | 24 VDC |
| Type | TMR |
| Output Signals | 16, non-commoned |
| Voltage Range | 22–45 VDC |
| Voltage Drop | <4 V typical |
| Current Ratings | 2 A per point, 10 A surge (10 ms) |
| Load Leakage | 2 mA maximum |
| Point Isolation | 1500 VDC |
| Fuses (Field Termination) | 1 per output, 2.5 A fast-acting |
| Diagnostic Indicators | ON/OFF per point, Module Status, Field Alarm |
| Color Code | Dark Blue |
System Integration
The 3604E integrates with the Tricon backplane using an External Termination Panel (ETP). In addition, its output sources current to field devices, requiring correct wiring for reliable operation. Typical applications include oil and gas, chemical processing, and power generation environments.
