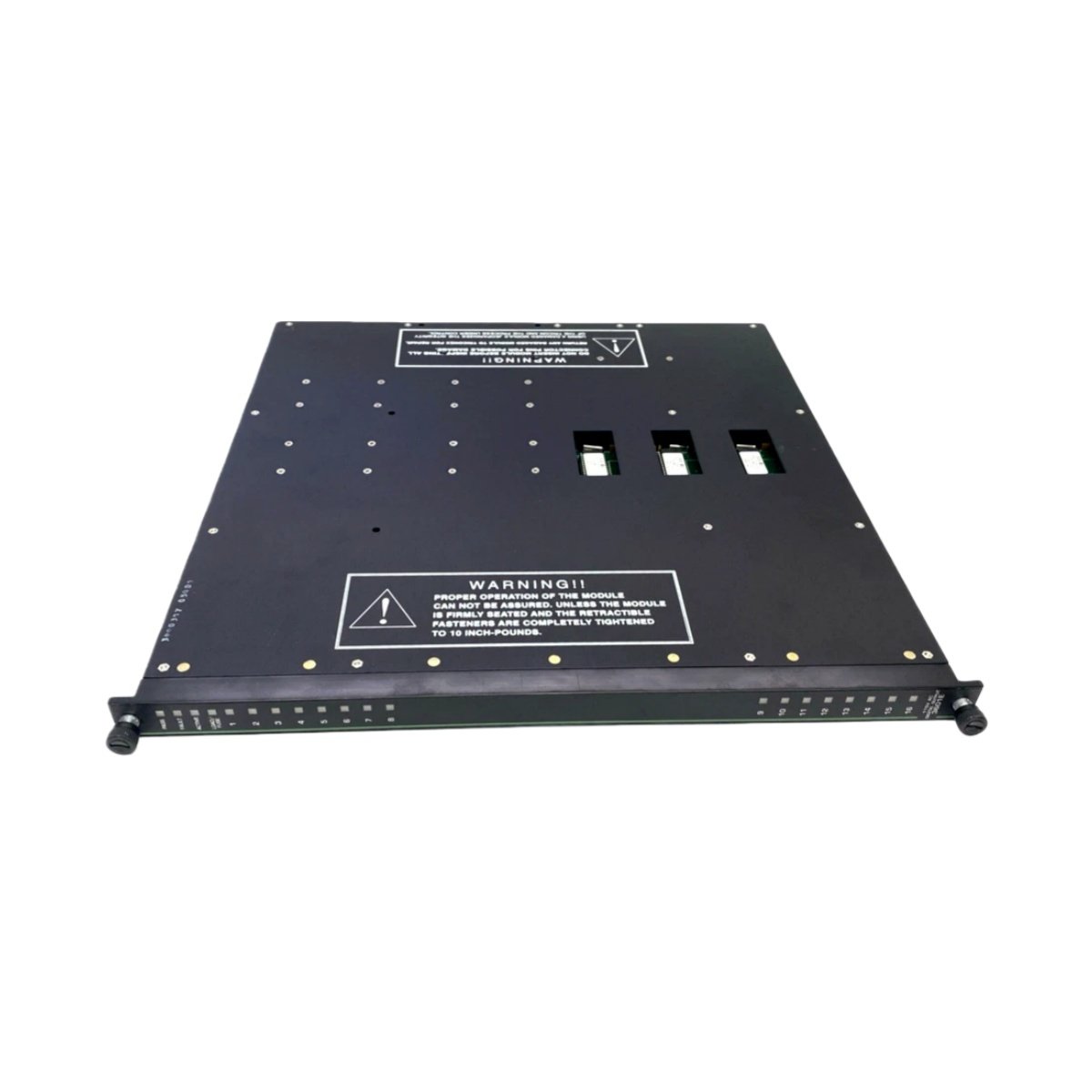

Key Technical Specifications of the Triconex 3601E Module

The Triconex 3601E operates as a high-availability digital output module. This module supports multiple voltage types for flexible integration. You can use DC 5V, 12V, 24V, 48V, or 60V inputs. Additionally, the device accepts AC 115V and 220V power sources. It features 16 digital input channels for reliable signal acquisition. The module also provides 8 digital output channels for precise control actions. Two separate communication ports ensure robust data exchange. Triple Modular Redundancy (TMR) delivers up to 99.999% diagnostic coverage. This design significantly reduces unplanned system downtime. The module carries CE, UL, and ATEX certifications for global compliance.

Physical Characteristics and Interface Details

The module’s compact mechanical design simplifies cabinet installation. Its flexible architecture adapts to various industrial automation layouts. You will find the Triconex 3601E easy to integrate into existing control systems. This device weighs approximately 1.2 kilograms for straightforward handling. Its dimensions measure 18.5 cm in height and 12 cm in depth. The front panel includes LED status indicators for each channel. A single PCB houses all critical components for reduced failure points. The module stores minimal energy to comply with safety shutdown requirements.

Manufacturer and Compliance Information

Schneider Electric’s Triconex brand manufactures this digital output module. The Triconex 3601E belongs to the trusted Tricon safety system series. This module meets strict industrial safety standards worldwide.
