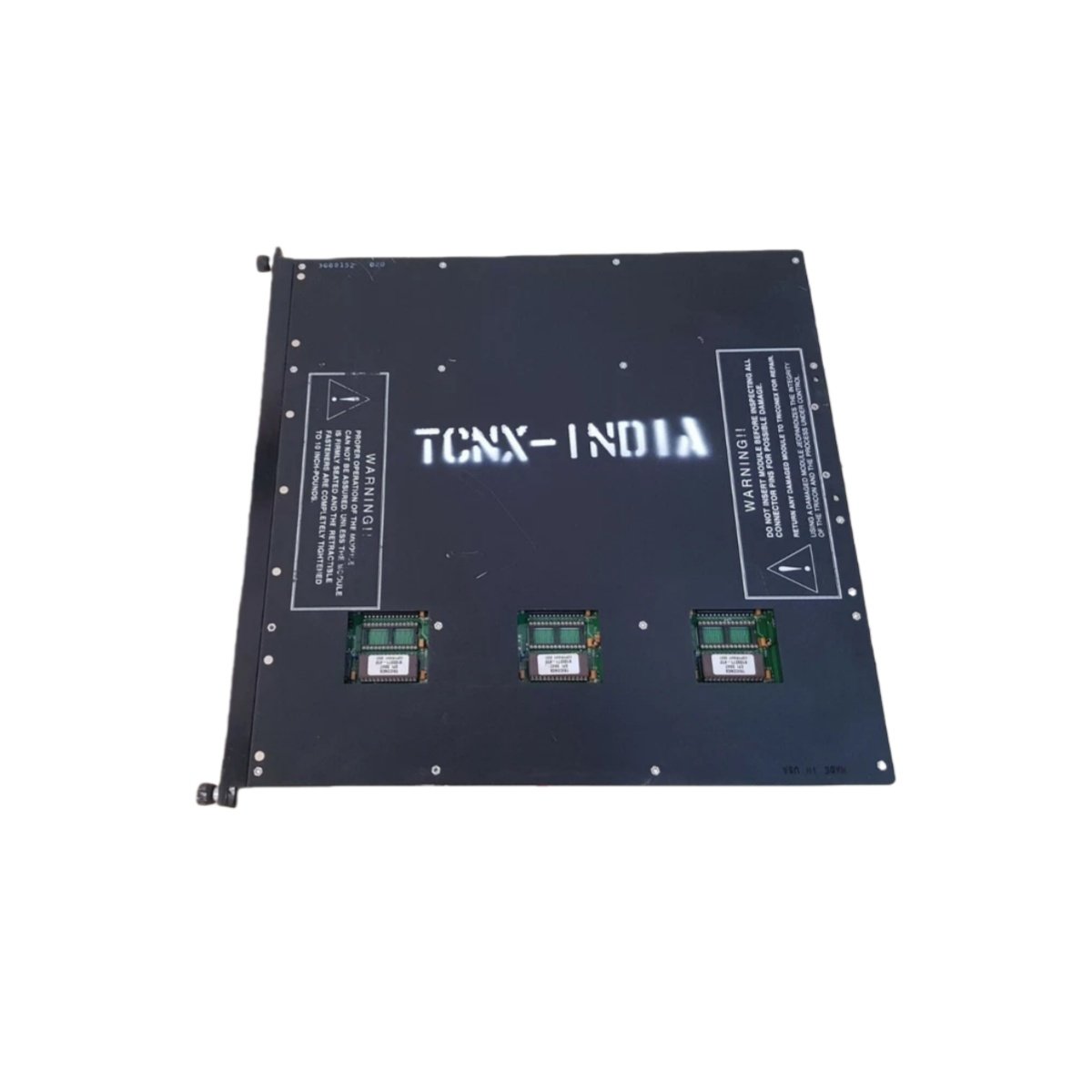

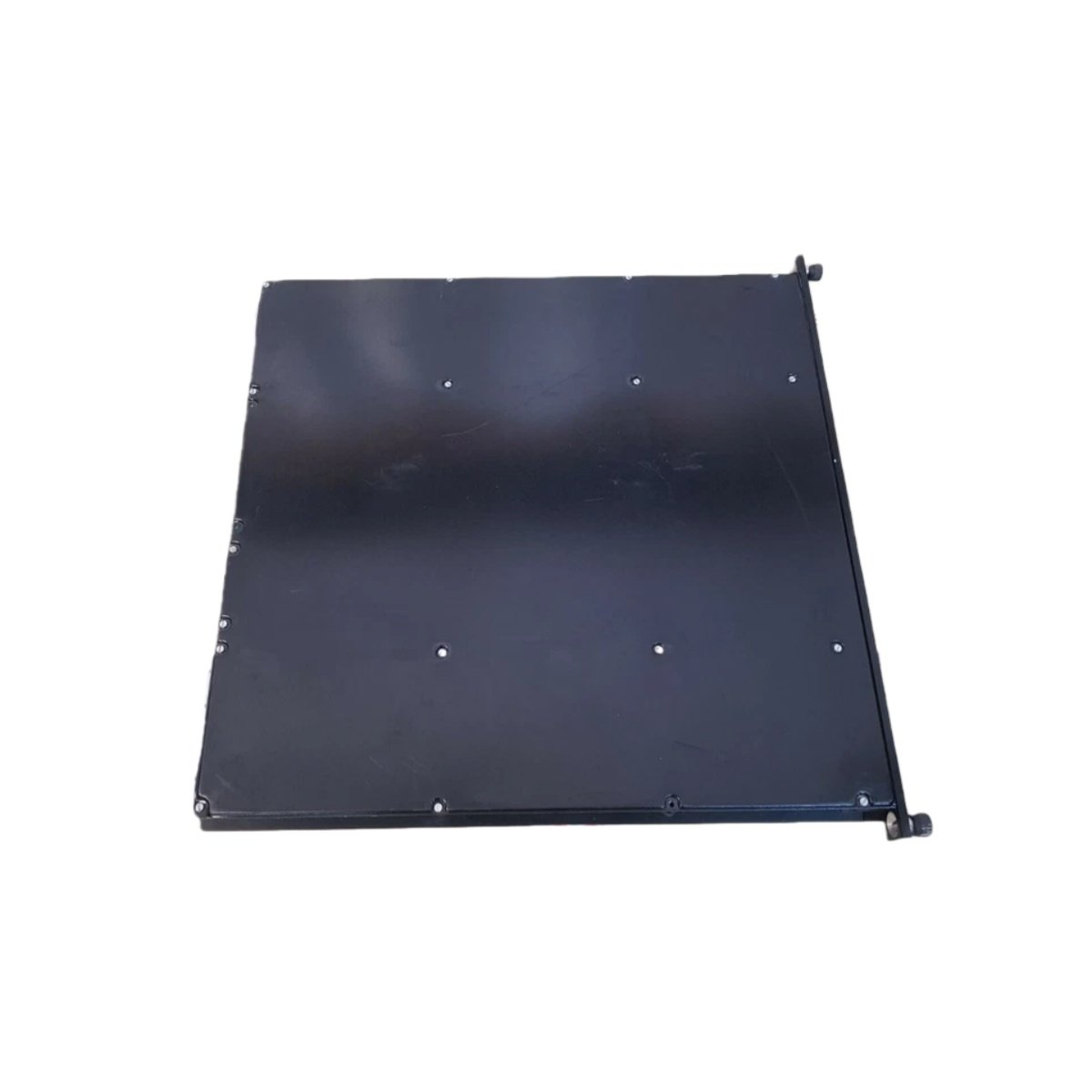

Product Overview
The Triconex 3510 serves as a high-availability pulse input module for critical safety instrumented systems. It accurately reads and processes frequency signals from turbines, flow meters, and tachometers. This module forms a vital link between field instruments and the Triconex safety logic solver.
Key Technical Specifications
Engineers trust this module for its precise measurement capabilities and robust fault tolerance. Its design prioritizes both accuracy and the highest level of system integrity. Below, we detail the essential technical parameters.
| Specification | Details |
|---|---|
| Product Type | Triple Modular Redundant (TMR) Pulse Input Module |
| Manufacturer | Triconex (Schneider Electric) |
| Series | Triconex Safety Instrumented Systems (SIS) |
| Input Channels | 4 isolated pulse input channels per module |
| Frequency Range | Capable of accurately counting pulses from 0.1 Hz to 10 kHz |
| Input Accuracy | High precision, typically ±0.1% of full scale |
| Field Isolation | 1500 VDC of optical isolation per channel protects the backplane |
| Module Diagnostics | Continuous self-diagnostics with fault reporting to the logic solver |
| Power Consumption | Typically 5.5 Watts from the Triconex chassis backplane |
| Physical Dimensions (HxWxD) | Standard Triconex module size: 9.1 in x 1.2 in x 6.3 in (23.1 cm x 3.0 cm x 16.0 cm) |
| Weight | Approximately 1.5 lbs (0.7 kg) |
Detailed Features and Benefits
High-Speed Pulse Accuracy for Critical Measurements
The Triconex 3510 reliably processes pulses from speed sensors and flow meters at frequencies up to 10 kHz. This high-speed capability ensures precise monitoring of rotating equipment. Consequently, you gain accurate data for over-speed protection and critical flow calculations.
Advanced TMR Architecture for Fault Tolerance
This module utilizes Triple Modular Redundant (TMR) architecture for unparalleled safety. It processes each input signal through three independent legs and votes on the result. Therefore, a single component failure will not compromise the measurement or system operation.
Continuous Diagnostics for Maximum Uptime
The 3510 module performs comprehensive, continuous self-diagnostics during normal operation. It immediately detects any internal fault and reports the issue to the SIS logic solver. This proactive monitoring allows for maintenance without disrupting the safety function.
Robust Channel-to-Channel and System Isolation
Each of the four input channels features full 1500 VDC galvanic isolation. This design prevents electrical faults or ground loops on one channel from affecting others. It also protects the Triconex backplane and logic circuits from field-side electrical transients.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
