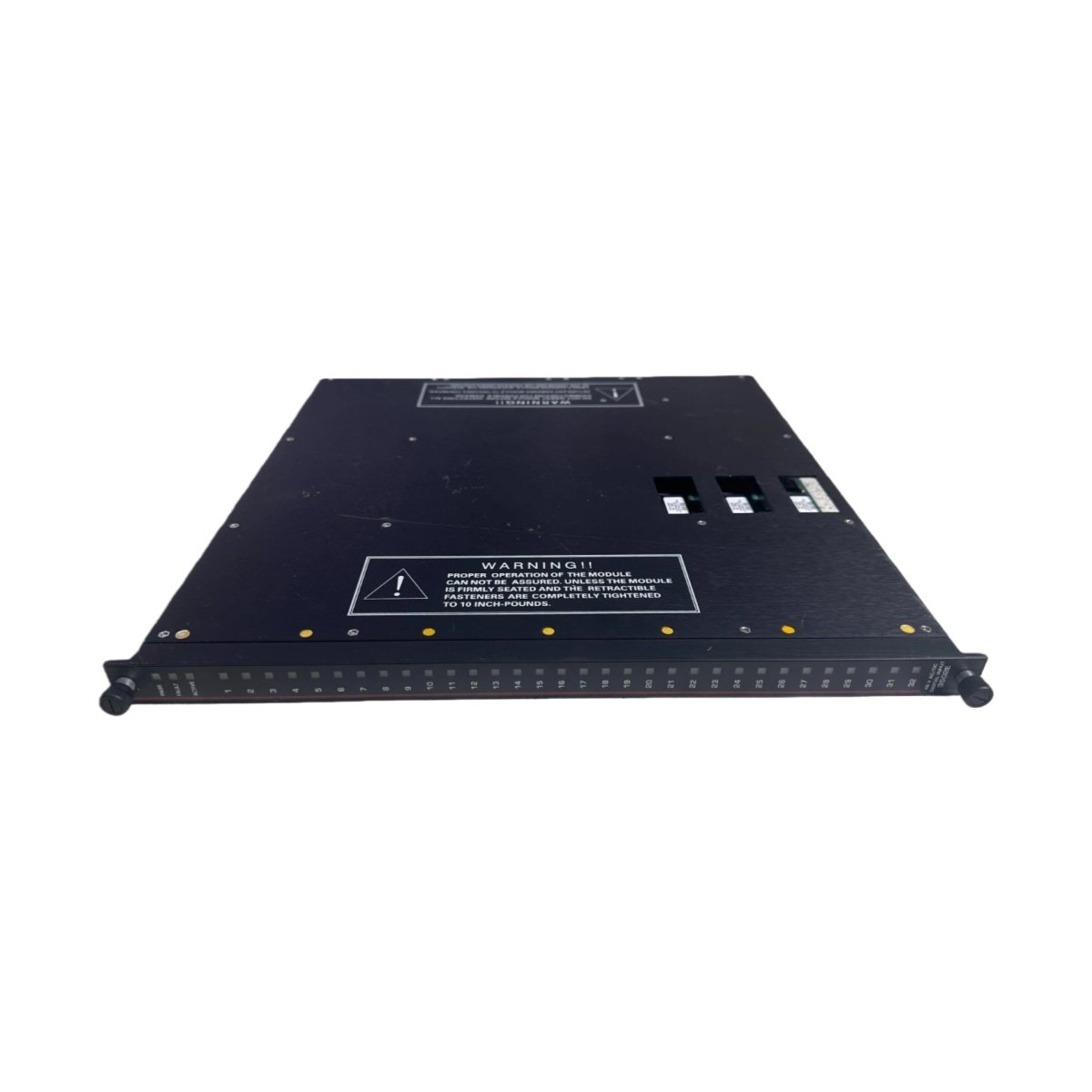

This digital input module provides reliable contact monitoring for Triconex safety instrumented systems. It acquires field device status signals with exceptional integrity for critical processes. Industrial facilities depend on this unit for emergency shutdown and fire & gas applications.
Technical Specifications & Hardware Overview
Engineers value this module for its high channel density and robust electrical isolation. The design accommodates both TMR and simplex configurations within the Triconex chassis.
| Parameter | Specification |
|---|---|
| Model | 3502E |
| Manufacturer | Triconex |
| Category | Digital Input Module |
| Input Channels | 32 points per module |
| Voltage Range | 24 VDC nominal (18–32 VDC) |
| Input Current | 5 mA typical per channel |
| Isolation Voltage | 1500 VDC between field and logic |
| Input Impedance | 4.7 kΩ typical |
| Power Consumption | 10 Watts maximum |
| Physical Size | 10.5 inches (height) x 1.5 inches (width) |
| Weight | Approximately 1.6 lbs (0.73 kg) |
Circuit Architecture and Signal Integrity
This module utilizes optical isolation for each individual input channel. It incorporates filtering circuits to reject electrical noise from field wiring. The 3502E communicates with the main processor through the Triconex backplane interface. Consequently, it delivers deterministic scan times for safety-critical logic execution.
Installation and Mechanical Configuration
The unit slides directly into standard Triconex chassis slots without special tools. A single printed circuit board assembly contains all active and passive components. This module features individual LED indicators for real-time channel status monitoring. Moreover, the compact width enables high I/O density within limited cabinet space.
Energy Management and Operational Stability
This digital input module draws power exclusively from the system backplane connection. It features onboard energy storage capacitors for ride-through during momentary interruptions. The 3502E performs continuous self-diagnostics during normal operation. As a result, it detects open-wire conditions and short-circuit faults immediately.
Field Wiring and System Integration
Field connections terminate through a removable front-accessible terminal block. Each channel supports both dry contact and proximity sensor inputs. This 3502E module integrates seamlessly with Triconex main processors and expansion racks. For similar industrial control components, you will find comparable reliability in static trip units like RMS-TSG-TZ-C from various manufacturers. Therefore, this module provides essential digital input expansion for safety instrumented systems.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
