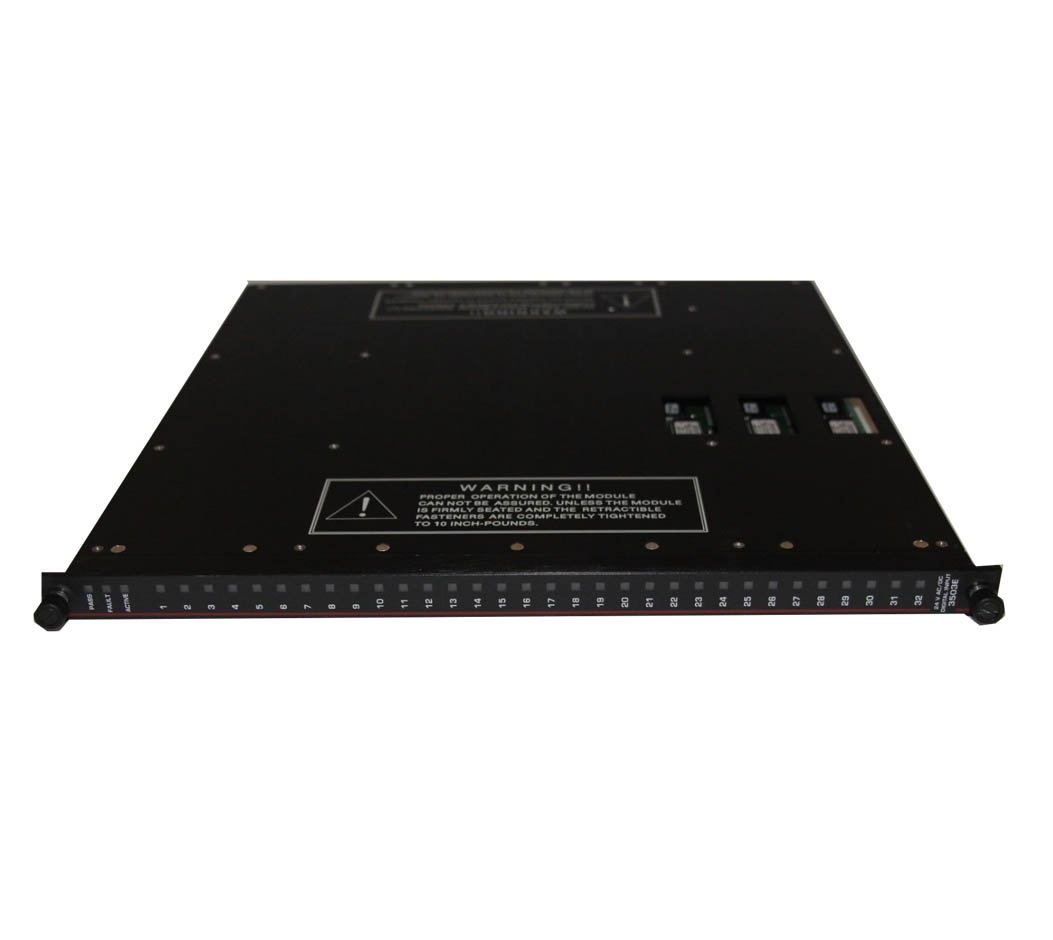

The Triconex 3501E/3501T is a Triple Modular Redundant (TMR) digital input module for Tricon systems, ensuring high-integrity input processing. Its three isolated channels independently handle data, and the main processors vote on inputs to guarantee maximum safety and system availability. Moreover, optical isolation maintains signal integrity between field devices and the Tricon system.
Key Features
- Triple Modular Redundancy (TMR): Each channel processes inputs independently, providing high reliability and fault tolerance.
- Continuous Diagnostics: Each channel undergoes ongoing checks; fault indicators activate if failures occur.
- Stuck-ON Detection: The module self-tests to detect inputs failing to switch OFF, enhancing system safety.
- Hot-Spare Capability: Supports hot-spare operation, maintaining functionality even if one module fails.
- Optical Isolation: Isolates and conditions signals between field devices and Tricon systems for accurate data transmission.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 3501E/3501T |
| Module Type | TMR (Triple Modular Redundancy) |
| Voltage | 115 VAC/VDC |
| Points | 32 non-commoned, isolated points |
| AC Range | 90–155 VAC |
| DC Range | 90–155 VDC |
| Frequency Range | DC or 47–63 Hz |
| Maximum Voltage | 155 VAC/VDC |
| Switching Level (OFF→ON) | > 86 VAC/VDC |
| Switching Level (ON→OFF) | < 28 VAC/VDC |
| Nominal Turn-On Current | 6–9 mA |
| Typical Hysteresis | 32 VAC/VDC |
| Input Delay (OFF→ON) | < 8 ms |
| Input Delay (ON→OFF) | < 15 ms |
| Point Isolation | > 1500 VDC/2500 VDC |
| Nominal Input Impedance | > 8.5 kΩ |
| Nominal Field Power Load | 1.5 W per ON point |
| Max Field Power Load | 2.9 W at max voltage |
| Diagnostic Indicators | Input status per point, module status PASS/FAULT/ACTIVITY |
| Stuck Test | Not applicable |
| Color Code | Red |
FAQ
Q1: Is this module original and brand new?
Yes, all 3501E/3501T modules are genuine Triconex products.
Q2: Can it operate in redundant safety systems?
Absolutely, the TMR architecture ensures high safety and fault tolerance in critical systems.
Q3: What is the typical delivery time?
We usually ship within 3 to 14 days, depending on stock availability.
Q4: Does it support optical isolation?
Yes, the module provides full optical isolation between field devices and the Tricon system.
Details
| Weight | 2.8 kg |
|---|
