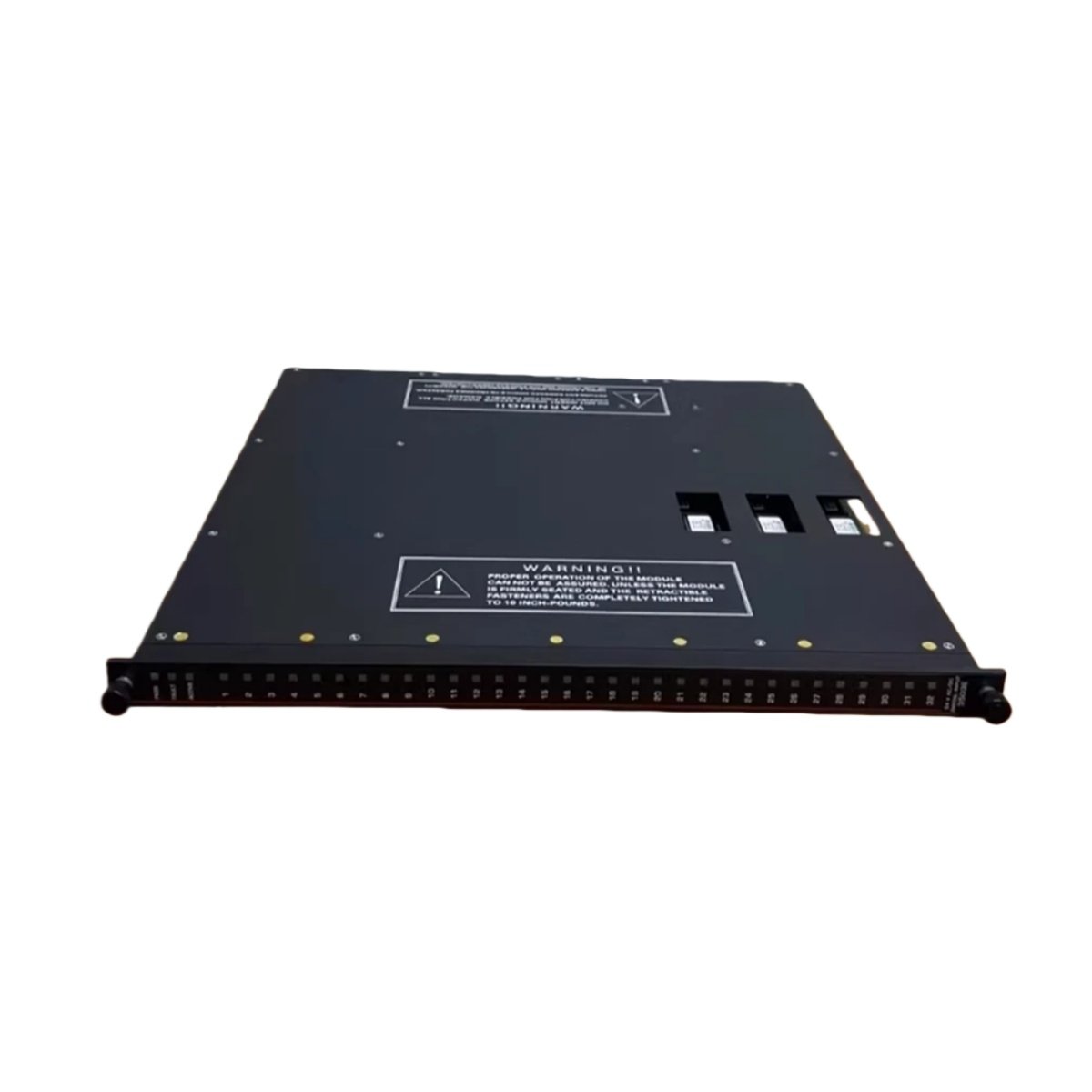

The Triconex 3351S2 functions as a high-integrity analog input module for Triconex safety instrumented systems. This module accepts 4-20 mA signals from field transmitters in critical safety applications. Engineers use it to monitor pressure, temperature, flow, and level for SIL 3 certified functions. The 3351S2 provides triple modular redundant architecture for fault-tolerant operation. Its robust design ensures reliable measurement in demanding industrial environments.

Technical Specifications

Triple Modular Redundant Architecture

The 3351S2 incorporates three independent analog input circuits on a single module. Each channel processes the field signal through separate hardware paths simultaneously. The module compares all three results using 2oo3 voting logic for maximum integrity. This architecture detects and masks any single circuit failure automatically. Engineers achieve fault-tolerant operation without redundant modules. The TMR design meets the stringent requirements of SIL 3 applications.

Input Signal Processing

Triconex 3351S2 accepts standard 4-20 mA current signals from field transmitters. Each channel includes a precision 250 Ω resistor for current-to-voltage conversion. Sixteen-bit resolution provides 65,536 distinct digital values for accurate measurement. The module updates all 32 channels every 50 ms for responsive control. Accuracy of ±0.1% ensures reliable measurement for critical process parameters.

Noise Rejection and Signal Integrity

The 3351S2 incorporates extensive filtering for reliable operation in industrial environments. Common mode rejection exceeds 100 dB at power line frequencies. This performance eliminates ground loop interference effectively. Normal mode rejection exceeds 60 dB for clean signal acquisition. Precision analog front-end circuits filter electrical noise before conversion. These features ensure accurate readings even in electrically noisy environments.

Channel-to-Channel Isolation

Galvanic isolation protects the 3351S2 and control system from field transients. Each channel provides 500 Vdc isolation from other channels and the backplane. This isolation prevents ground loops and protects against voltage surges. Engineers connect field wiring directly without external isolators in many cases. The isolated design maintains signal integrity for all 32 channels simultaneously.

Integration with Termination Panels

The 3351S2 connects to field wiring through compatible Triconex termination panels. A 50-pin connector interfaces with panels like the 9760-210 for analog inputs. Pre-assembled cables provide reliable connections between module and panel. Field wiring connects once to the termination panel permanently. This architecture simplifies module replacement without disturbing field wiring. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this module ensures reliable measurement.

Application in Safety Systems

Engineers use the 3351S2 for critical analog measurements in safety instrumented systems. Common applications include emergency shutdown, fire and gas monitoring, and burner management. The module monitors pressure transmitters for overpressure protection functions. Temperature inputs from RTDs and thermocouples connect through signal conditioners. Flow transmitters provide input for critical process safety functions. Level measurements ensure tank overfill protection in storage applications.
