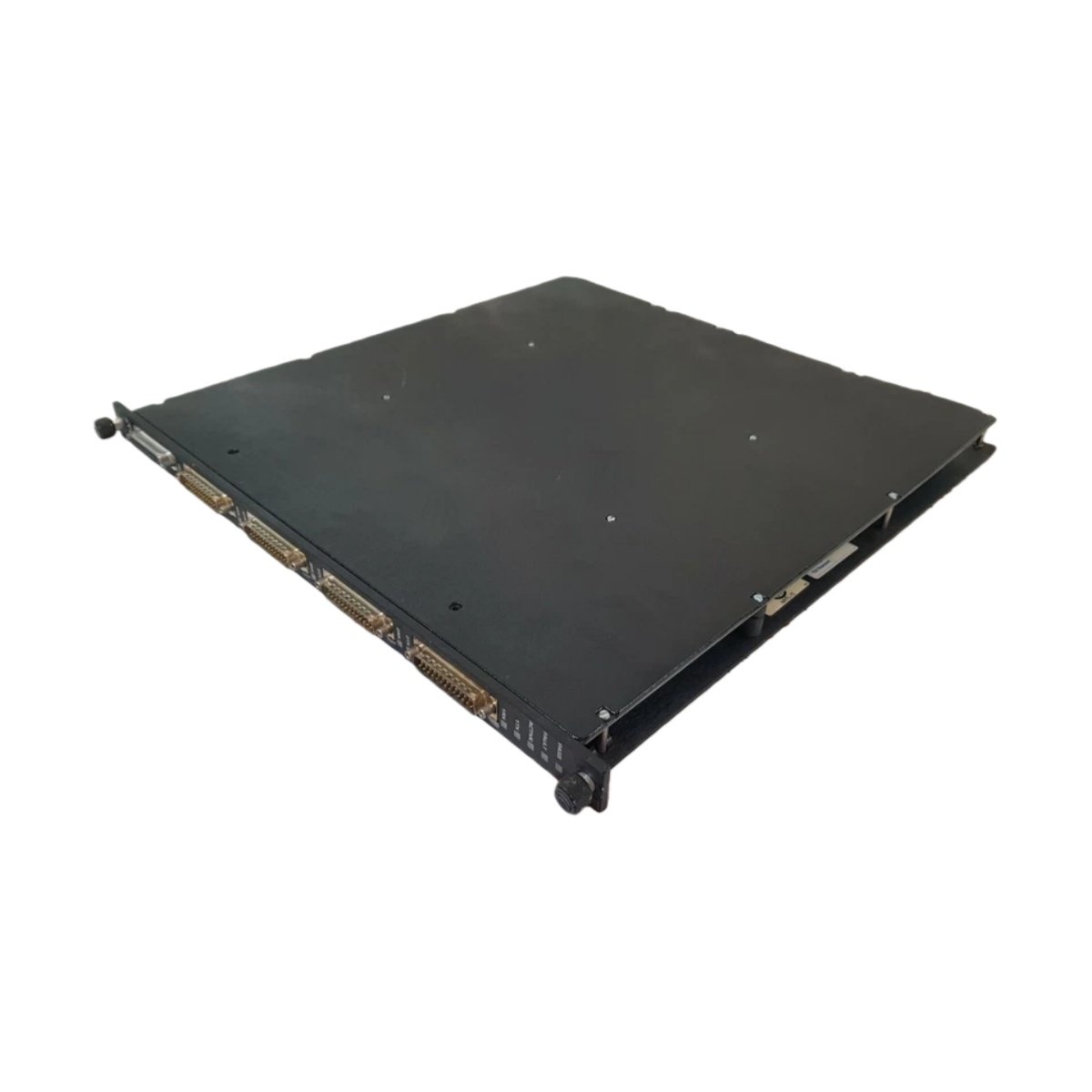

The Triconex 3101 serves as the central processing unit within Triconex triple modular redundant safety systems. We engineer this main processor module to execute critical control and safety functions with exceptional reliability. Its specialized architecture includes an Input/Output Processor for managing communications with field I/O modules. This module forms the computational heart of high-integrity applications requiring SIL 3 certification.

Key Features and Processing Capabilities

The Triconex 3101 delivers robust processing power through its Motorola MPC860 32-bit processor running at 50 MHz. This main processor module executes safety logic while the dedicated Input/Output Processor handles I/O communication independently. Consequently, the system maintains deterministic performance even during high communication loads. Furthermore, the module includes comprehensive memory with error detection for critical data integrity.

Detailed Technical Specifications

Manufacturers construct the Triconex 3101 using industrial-grade components rated for continuous operation in safety applications. The processor module measures approximately 250 millimeters in height, 200 millimeters in width, and 40 millimeters in depth. Its rugged design ensures reliable operation in demanding industrial environments with vibration and temperature extremes. Additionally, the module features status indicators for power, processor activity, and diagnostic information.

Processor Architecture and Performance

The 3101 incorporates a dual-processor architecture separating control execution from I/O management. Its main CPU executes safety logic and application programs at 50 MHz for fast response times. The dedicated Input/Output Processor handles all communication with field I/O modules independently. Therefore, I/O scanning continues without interrupting main processor execution for maximum throughput.

Memory Configuration and Error Detection

Engineers equipped the Triconex 3101 with comprehensive memory resources including error detection features. Its 16 MB DRAM with Byte parity supports Input/Output Processor execution while detecting memory errors. An additional 128 KB shared memory with Byte parity facilitates communication with the SX processor. Consequently, the module maintains data integrity critical for safety applications through continuous error monitoring.

Diagnostic Communication and Channel Voting

The 3101 includes a dedicated 2 Mbps HDLC diagnostic bus for inter-channel communication. This bus transmits I/O module diagnostic information between the three Main Processor channels. The triple modular redundant architecture votes all outputs to detect and mask individual channel failures. Therefore, the system continues safe operation even if one processor channel experiences a fault.

Power Requirements and Electrical Specifications

The Triconex 3101 operates from standard 24 VDC control power with wide tolerance for industrial fluctuations. Its nominal 24 VDC input accepts variations from 19.2 to 30 VDC including AC ripple components. The module consumes 8 watts maximum under full load for minimal heat generation within the cabinet. Additionally, it withstands absolute maximum inputs up to 33 VDC without damage.

Triple Modular Redundant Architecture

The 3101 functions as one channel within Triconex’s proven triple modular redundant safety platform. Three identical Main Processor modules operate simultaneously, each executing the same safety logic. A hardware voting circuit compares all outputs and selects the majority result for final action. Consequently, any single module failure does not affect system operation or safety integrity.

System Integration and Communication Interfaces

The Triconex 3101 communicates with I/O modules through the proprietary Triconex backplane interface. It exchanges diagnostic information with other Main Processor channels via the HDLC diagnostic bus. Shared memory provides a communication path to the SX processor for system management functions. This comprehensive communication architecture ensures coordinated operation across the entire safety system.

Industrial Applications and Use Cases

High-hazard industries worldwide rely on the Triconex 3101 for critical safety instrumented functions. Oil and gas facilities use this processor for emergency shutdown systems and fire and gas detection. Chemical plants employ it for burner management and reactor safety control applications. This main processor module delivers the reliability required for SIL 3 certified safety systems.

Installation Guidelines and Best Practices

Proper installation of the Triconex 3101 ensures optimal performance and long-term safety system reliability. First, insert the module into a dedicated Main Processor slot within the Triconex chassis. Next, verify that all three processor channels match for proper voting operation. Finally, apply 24 VDC power within the specified range and monitor status indicators during startup.

Maintain Safety Integrity with Genuine Triconex Components

Choosing the genuine Triconex 3101 guarantees the high reliability required for safety instrumented systems. Aftermarket processors cannot provide the same proven-in-use data and SIL certification. Therefore, always source this Main Processor Module from authorized Triconex distributors and partners. For additional automation components, explore our selection of safety modules similar to the RMS-TSG-TZ-C Static Trip Unit.
