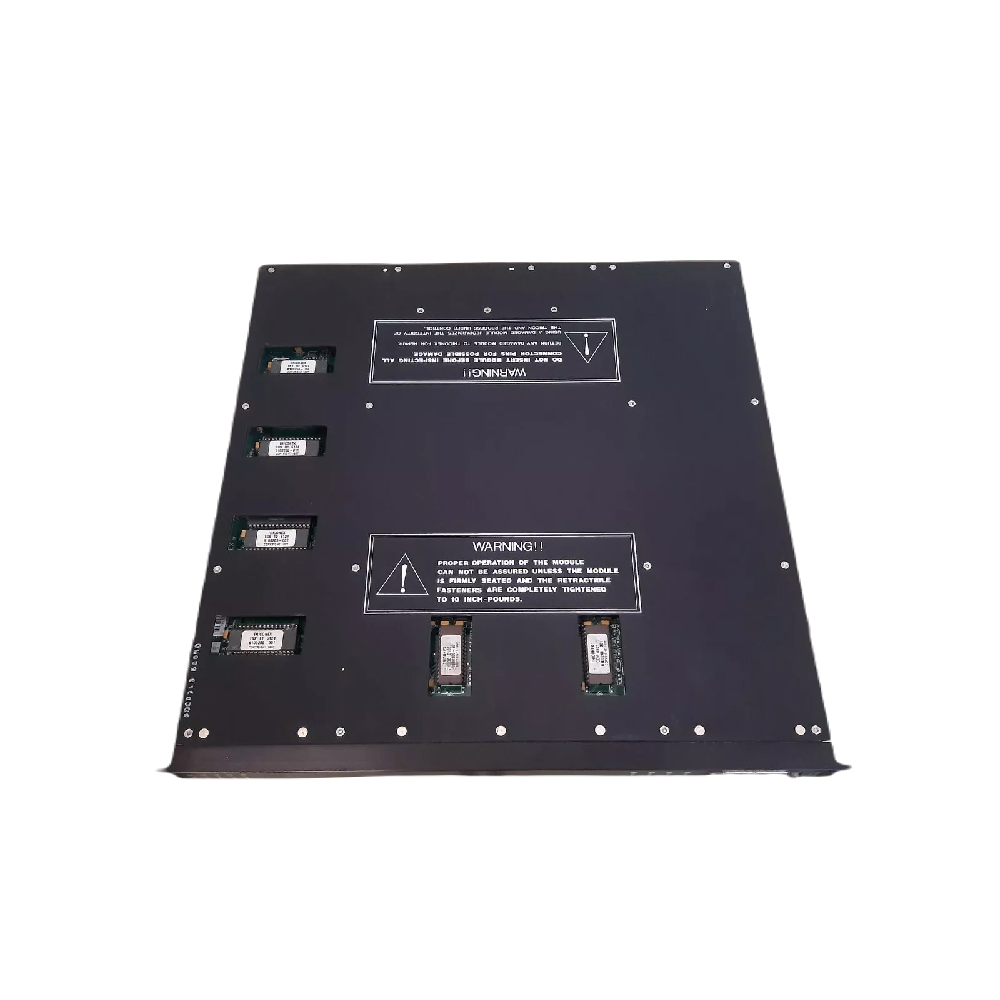

The Triconex 3006 and 3007 Main Processor Modules are core components of Tricon v9.0–v9.5 systems. These modules provide essential computational and communication capabilities for reliable control and safety applications. Furthermore, their high-speed processors, memory, and communication interfaces enable real-time operations with consistent performance.
Key Features
- High-Speed Central Processing: Both models utilize advanced 32-bit processors to ensure fast computation and response times.
- Memory and Backup: Equipped with EPROM and SRAM, these modules maintain program integrity and retain critical data. Additionally, battery backup ensures accurate timekeeping even during power interruptions.
- Communication Interfaces: Includes TriBus, RS-485, and diagnostic serial ports for seamless integration and troubleshooting.
- I/O Processing: Dedicated I/O processor supports high-speed input/output operations for robust control applications.
- Reliable Power Consumption: Logic power consumption is optimized at 15 W, ensuring efficiency without compromising performance.
Specifications
| Feature | Specification |
|---|---|
| Central Processor | National NS32GX32, 32 bits, 25 MHz |
| Math Co-Processor | National NS32381, 32 bits, 25 MHz |
| EPROM Memory | 512 KB |
| SRAM | Model 3006: 2 MB Model 3007: 1 MB |
| Clock Calendar | Time and date |
| Battery Backup | Typical drift: ±2 seconds/day Maximum drift: ±8.6 seconds/day |
| TriBus | 4 Mbps, 16-bit DMA |
| Serial Port | For Diagread diagnostic analysis, optically isolated RS-232 interface on 25-pin connector, 500 VDC isolation |
| Communication Processor | Intel 80C152, 32 KB EPROM, 64 KB shared memory interface, 16 MHz |
| Communication Interface | Protocol: RS-485 Baud rate: 2 Mbps |
| I/O Processor | Intel 80C31, 12 MHz, 32 KB EPROM, 64 KB shared memory interface |
| I/O Interface | Protocol: RS-485 Baud rate: 375 Kbps |
| Logic Power | 15 W |
Applications
These main processor modules are designed for safety-critical and industrial control systems, ensuring precise computation, fast I/O handling, and robust communication. For example, they are ideal for Tricon v9.0–v9.5 systems requiring deterministic control and reliable safety functions.
Notes
- Battery backup maintains accurate system time even during power loss.
- TriBus and RS-485 interfaces facilitate seamless communication among processors and external devices.
- Diagnostic serial ports allow efficient troubleshooting and system monitoring.
- Moreover, the modules’ architecture supports high availability and ensures system reliability under demanding conditions.
Details
| Weight | 2.9 kg |
|---|
