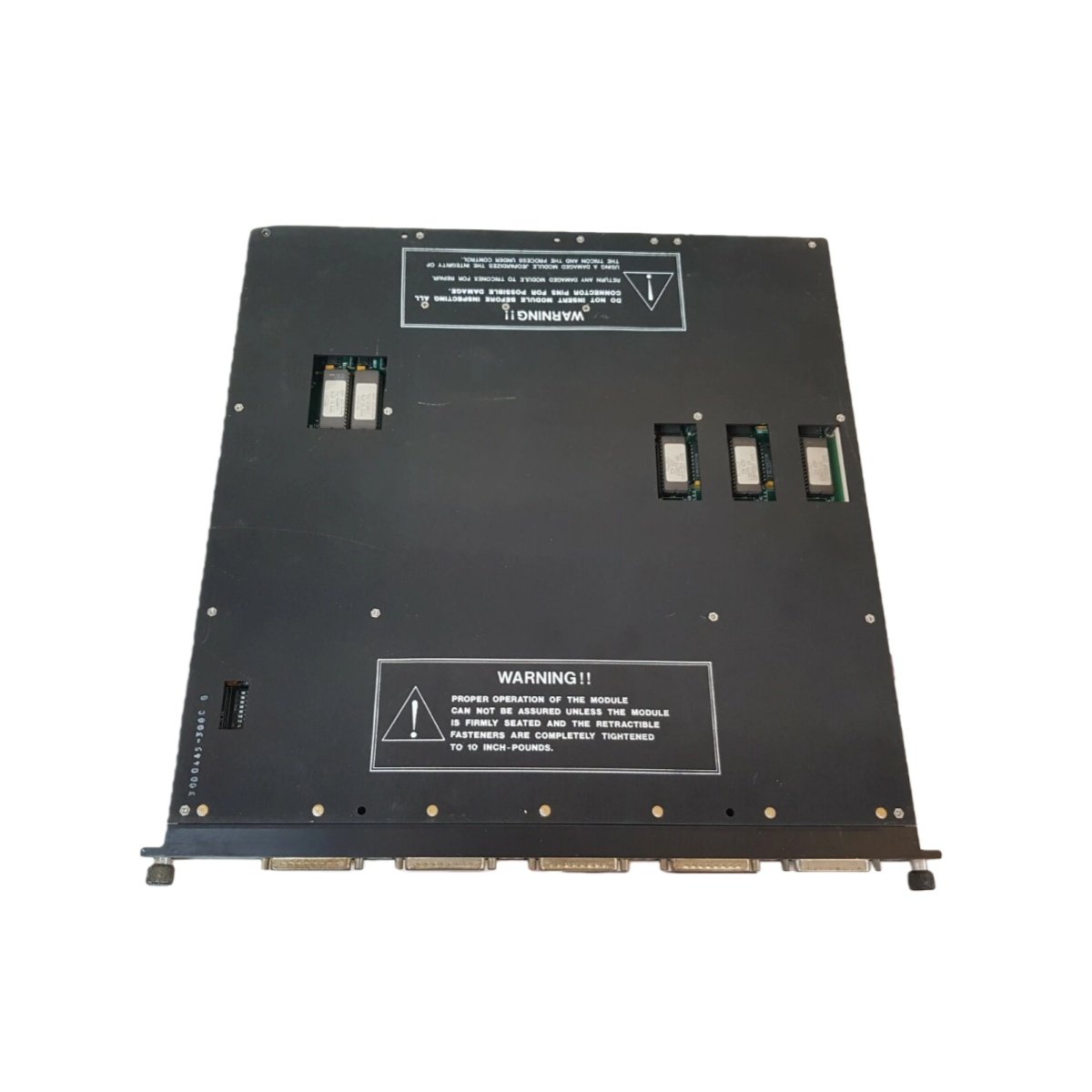

The Triconex 3002 functions as a dedicated terminal board for connecting field pulse inputs to Triconex safety instrumented systems. We design this termination interface to condition and route pulse signals from field devices to input modules. Its robust construction ensures reliable signal reception from flow meters, tachometers, and other pulse-generating instruments. This terminal board forms the critical interface between field sensors and the high-integrity safety system.

Key Features and Functional Benefits

The Triconex 3002 delivers precise pulse signal conditioning through its specialized input circuitry. This terminal board accepts field wiring from pulse-producing devices and routes signals to the appropriate safety module. Consequently, the safety system receives accurate count and frequency information for critical monitoring applications. Furthermore, the board includes built-in termination components for signal integrity without external hardware.

Detailed Technical Specifications

Manufacturers construct the Triconex 3002 using industrial-grade materials for reliable operation in demanding environments. The terminal board measures approximately 200 millimeters in height, 300 millimeters in width, and 50 millimeters in depth. Its rugged design mounts securely within control cabinets while providing easy access for field wiring. Additionally, the board features clearly labeled terminals for each pulse input channel.

Pulse Signal Conditioning

The 3002 incorporates signal conditioning components specifically for pulse-type field device inputs. It accepts signals from magnetic pickups, proximity sensors, and turbine flow meters directly. The board provides proper termination and filtering to ensure clean pulse waveforms reach the safety system. Therefore, the Triconex processor receives accurate count and frequency data for critical safety functions.

Field Wiring and Termination

Engineers designed the Triconex 3002 with generous screw terminals for convenient field wiring connections. Each terminal accepts solid or stranded wire up to 14 AWG for flexible installation options. Clear labeling identifies each channel and terminal function for error-free wiring during commissioning. Consequently, technicians can terminate field devices quickly and confidently without special tools.

System Interface and Connectivity

The Triconex 3002 connects to the safety system input module through a precision ribbon cable assembly. This interface transmits conditioned pulse signals from the terminal board to the module for processing. The cable connection maintains signal integrity while allowing physical separation between field wiring and electronics. Therefore, technicians can replace input modules without disturbing field wiring terminations.

Mechanical Design and Mounting

The 3002 features a rugged mechanical design suitable for permanent installation in industrial control cabinets. Its mounting holes accept standard panel mounting hardware for secure attachment in high-vibration environments. Alternatively, DIN rail mounting brackets provide flexible installation options for various cabinet layouts. This versatility simplifies integration into new or existing safety system installations.

Industrial Applications and Use Cases

Process facilities rely on the Triconex 3002 for connecting critical pulse-generating instruments to safety systems. Refineries use this terminal board for turbine flow meters monitoring emergency shutdown critical flows. Power plants employ it for speed sensors on critical rotating equipment requiring overspeed protection. This terminal board ensures reliable pulse signal reception in all these high-integrity applications.

Installation Guidelines and Best Practices

Proper installation of the Triconex 3002 ensures optimal signal reception and long-term reliability. First, mount the terminal board securely in a location accessible for field wiring maintenance. Next, connect field device wires to the appropriate terminals following the channel assignments. Finally, connect the ribbon cable to the input module, ensuring proper orientation and secure latching.

Maintain Safety Integrity with Genuine Triconex Components

Choosing the genuine Triconex 3002 guarantees proper signal conditioning for your safety system pulse inputs. Aftermarket boards may not provide the correct termination characteristics or isolation required. Therefore, always source this pulse input terminal board from authorized Triconex distributors and partners. For additional automation components, explore our selection of safety modules similar to the RMS-TSG-TZ-C Static Trip Unit.
