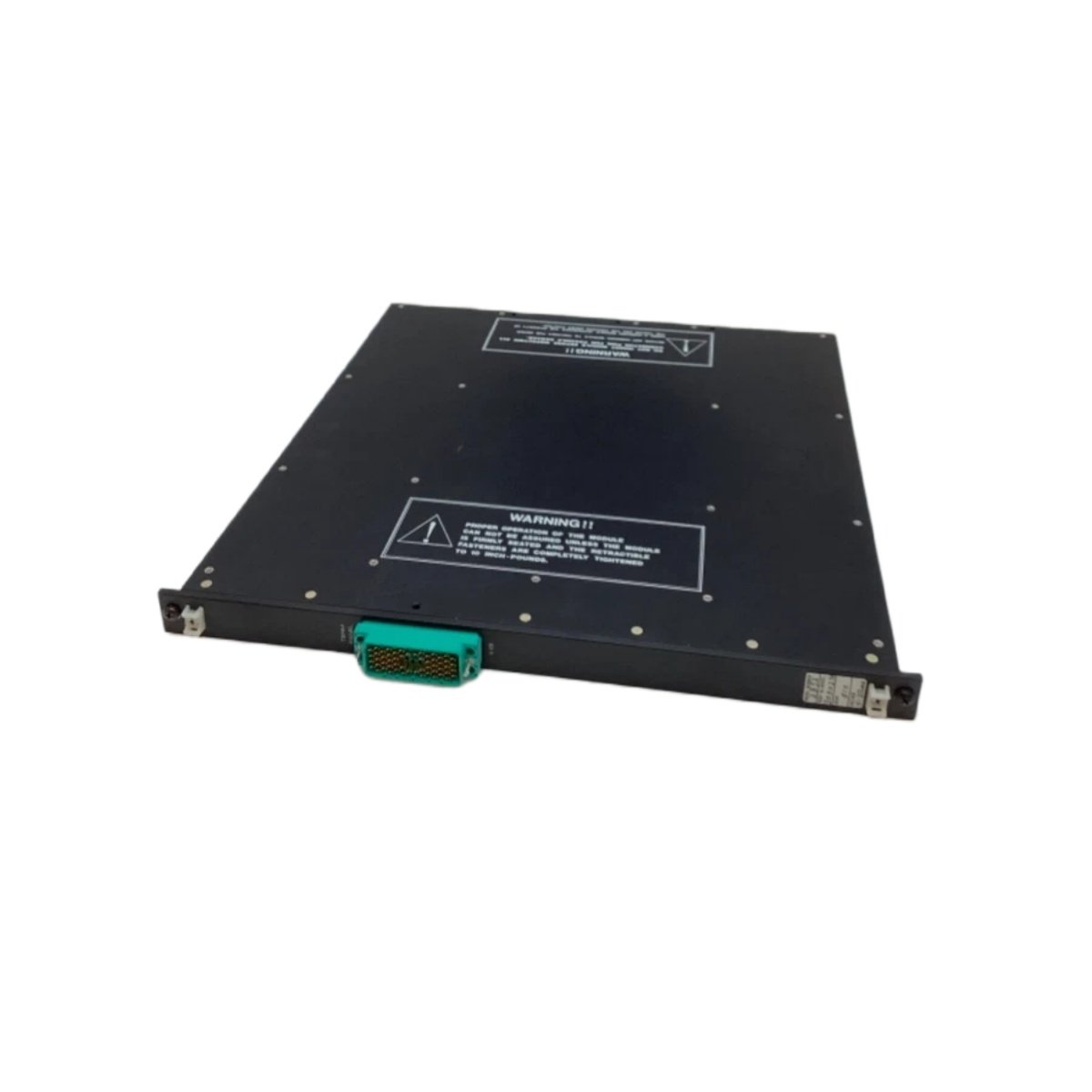

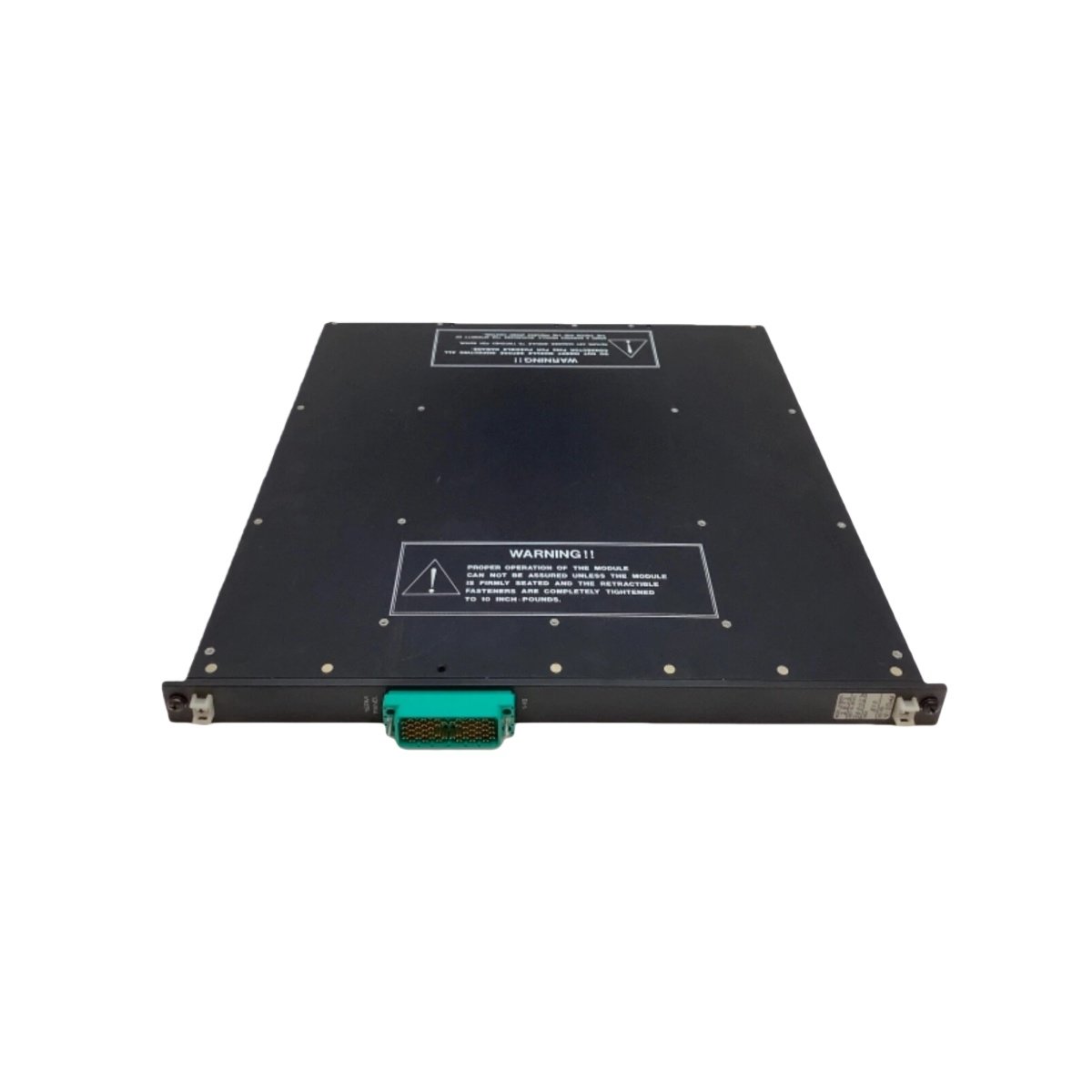

The 2852 analog output module delivers precise control signals for Triconex safety instrumented systems. Triconex engineered this module to drive final control elements with exceptional accuracy. It converts digital commands into continuous analog signals for modulating devices. You can deploy this unit in applications requiring high-integrity output management.

Technical Specifications

The 2852 combines multiple output channels with high-resolution signal generation. The following parameters define its technical capabilities.

Physical Design and Environmental Tolerance

The 2852 withstands operating temperatures from -40°C up to 70°C. It also survives storage conditions ranging from -40°C to 85°C. This module tolerates humidity levels reaching 95% without condensation issues. Such environmental resilience ensures reliable operation in harsh industrial settings.

Output Architecture and Performance

This analog output module features eight independent channels with 4–20 mA signal range. Each channel delivers 14-bit resolution for fine control of field devices. The 2852 achieves accuracy within ±0.1% of span for precise process regulation. You can drive positioners, valve actuators, and variable frequency drives from these outputs.

Isolation and Signal Integrity

The module provides 1500 V AC isolation between field circuits and logic components. This isolation prevents ground loops and protects the control system from surges. Furthermore, the 2852 includes individual channel diagnostics for fault detection. These diagnostics alert operators to open-circuit or short-circuit conditions.

Integration and Power Management

The unit communicates through the Triconex backplane bus for deterministic data transfer. It operates on a 24 V DC supply with typical consumption of 12 watts. The 2852 integrates seamlessly with Triconex main processors and I/O chassis. This moderate power draw supports dense cabinet configurations without excessive heat.

Application Scenarios

Engineers select this module for safety instrumented systems requiring modulating control. It excels in chemical processing, refining, and power generation applications. The 2852 supports critical loop control in emergency shutdown and burner management systems. For similar high-quality automation components, you can explore options like the RMS TSG TZ C static trip unit from the broader industrial ecosystem.
