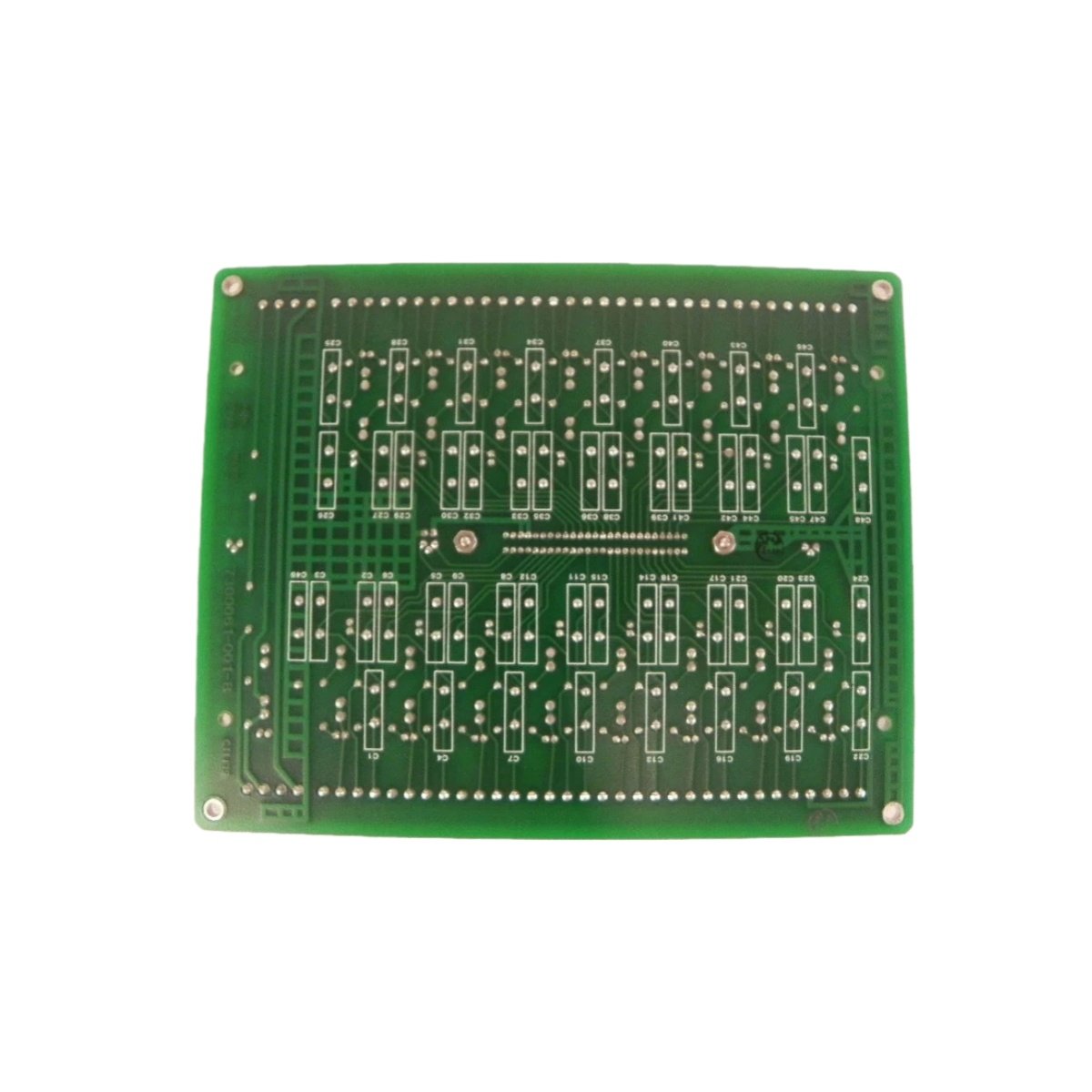

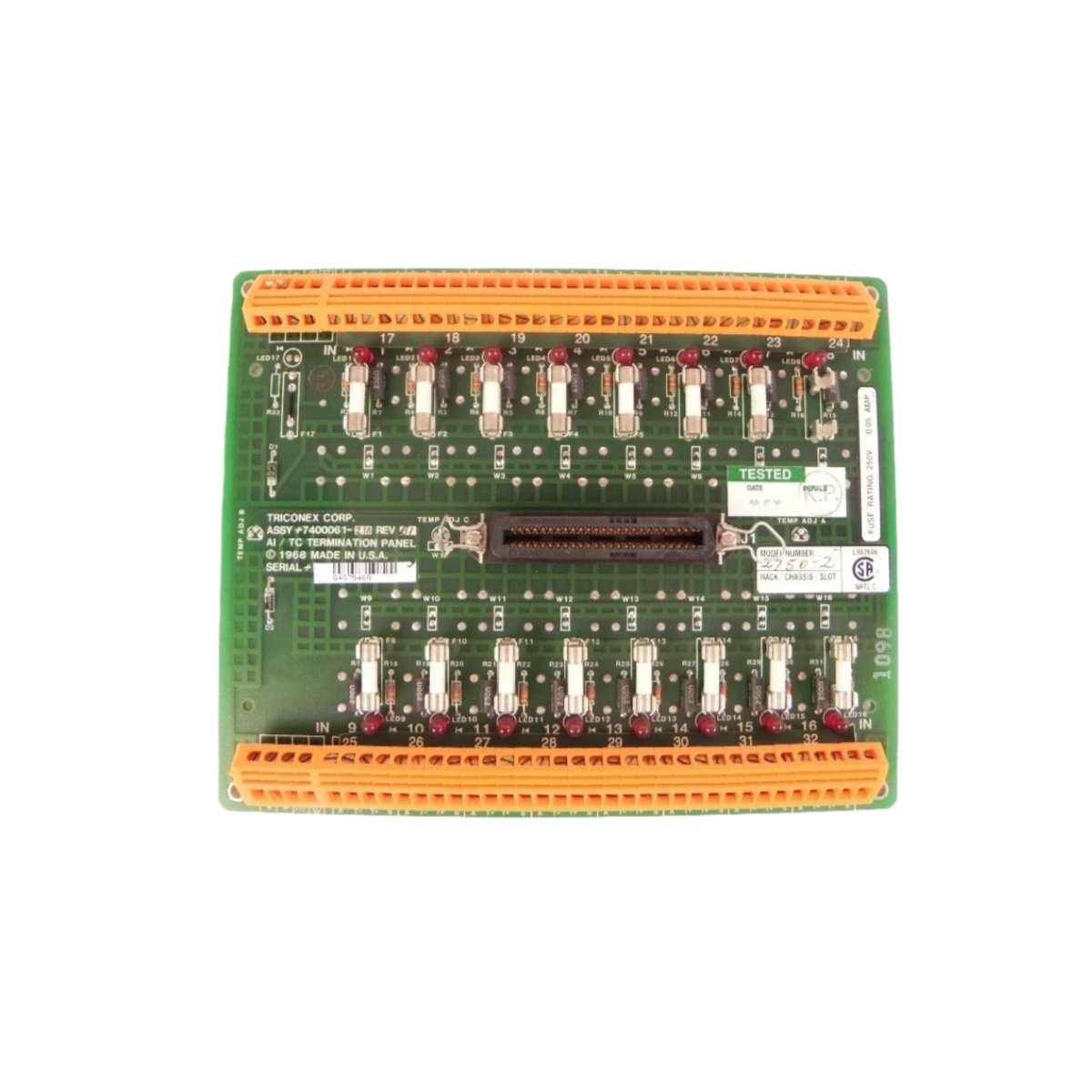

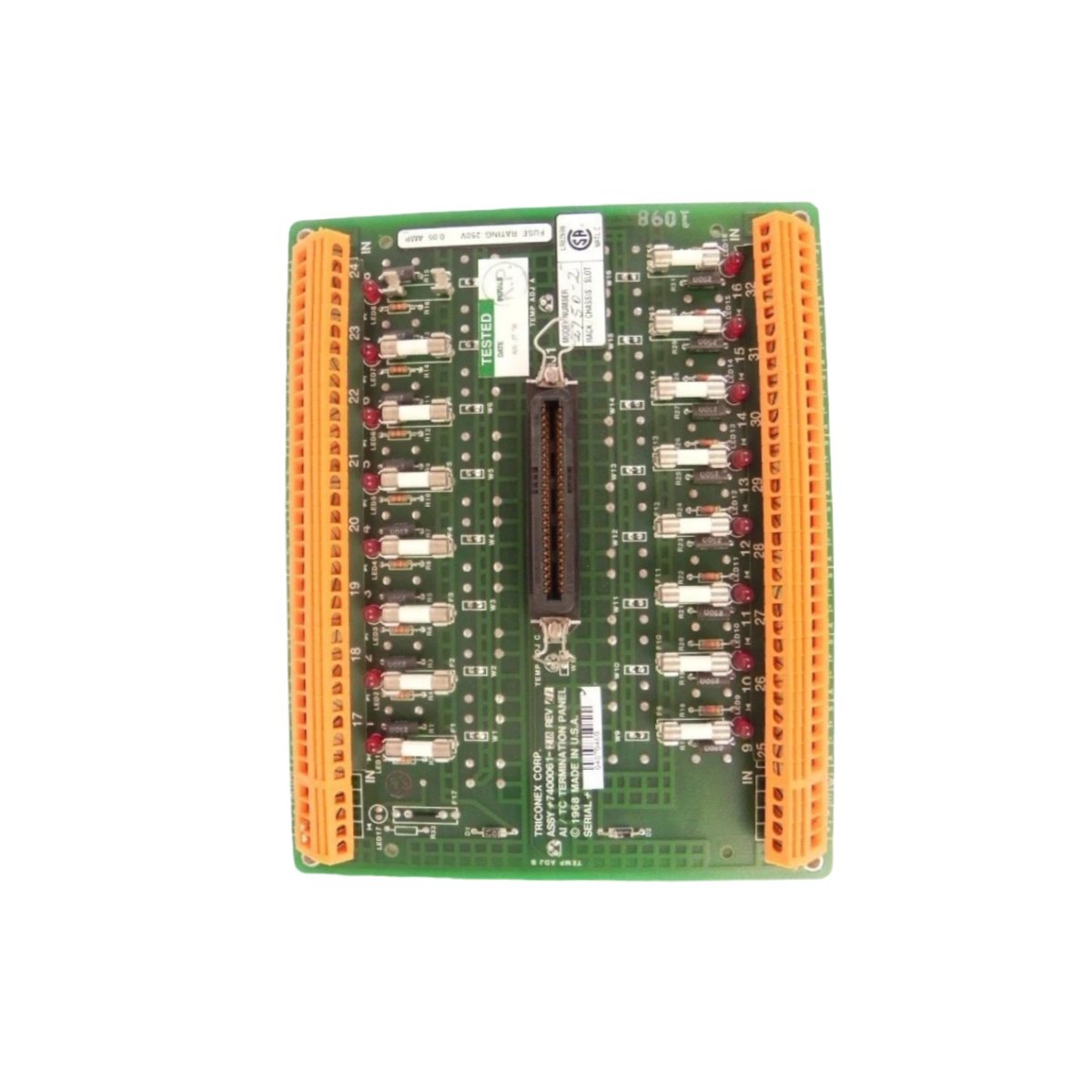

The Triconex 2750-2 300012-220 functions as a high-integrity analog input module within the Tricon safety system, providing accurate process measurements for critical applications. This module accepts standard field signals and delivers them to three independent main processors for voting. Specifically, it supports TMR architecture to achieve fault tolerance without compromising availability.

Technical Architecture and Input Specifications

Engineers require absolute reliability for safety instrumented systems, and the Triconex 2750-2 delivers through triple redundant design philosophy. This module features eight isolated input channels, each accepting 4-20mA or 1-5V DC signals from field transmitters. Additionally, the 300012-220 variant shares identical functionality, providing interchangeability for maintenance flexibility across Tricon installations.

Triple Modular Redundancy and System Integration

Integrating the Triconex 2750-2 300012-220 into existing Tricon safety systems requires simple insertion into any available I/O slot. The module communicates simultaneously with all three main processors, sending digitized values through dedicated backplane paths. Consequently, a single channel failure will not compromise overall system integrity or process availability.

The module performs automatic self-calibration during operation, maintaining accuracy without manual intervention. Therefore, technicians can focus on other maintenance tasks while the safety system continues protecting critical processes. Additionally, the 300012-220 model maintains identical firmware and calibration parameters, ensuring seamless replacement capability.

Operational Reliability and Environmental Durability

The Triconex 2750-2 incorporates optical isolation on every input channel, protecting the module from ground loops and transient surges. Its rugged construction includes conformal coating for resistance against humidity and corrosive atmospheres. Moreover, the operating temperature range of -20 to 60°C suits harsh industrial environments without additional climate control.

For safety-critical applications requiring SIL 3 certification, this module provides comprehensive diagnostic coverage through continuous self-testing. Hence, any fault detection triggers immediate alerts while the redundant channels maintain normal operation. Ultimately, selecting the 2750-2 ensures dependable analog signal acquisition for safety instrumented systems in refining, power generation, and chemical processing applications.
