The Triconex 2652-1 functions as a dedicated digital input terminal block for Triconex safety instrumented systems. This module provides secure field wiring connections for digital sensors and switches in critical applications. Engineers use it to interface limit switches, push buttons, and proximity sensors with safety controllers. The 2652-1 ensures reliable signal termination for demanding safety applications up to SIL 3. Its robust design meets the rigorous requirements of industrial safety systems.

Technical Specifications

Terminal Configuration and Layout

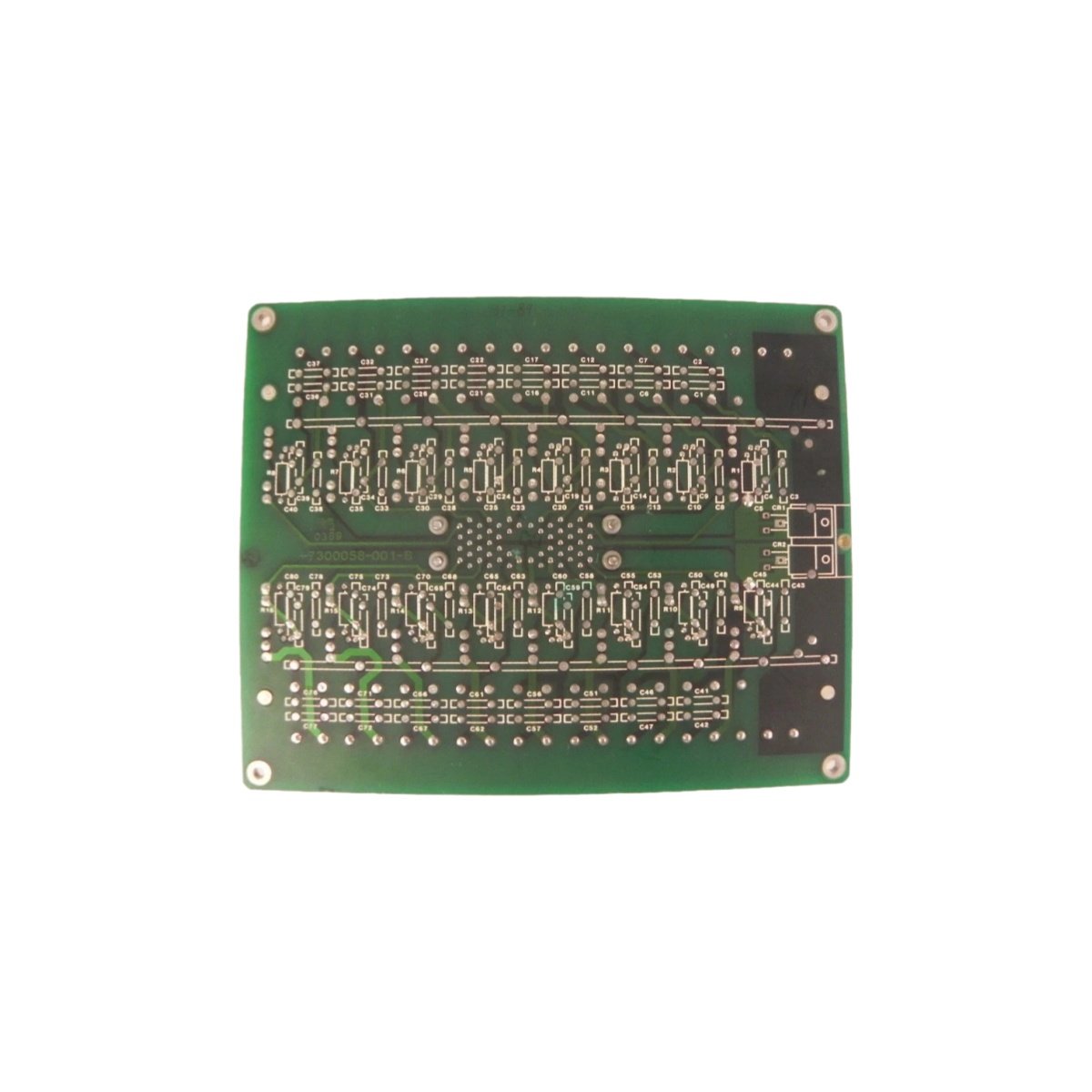

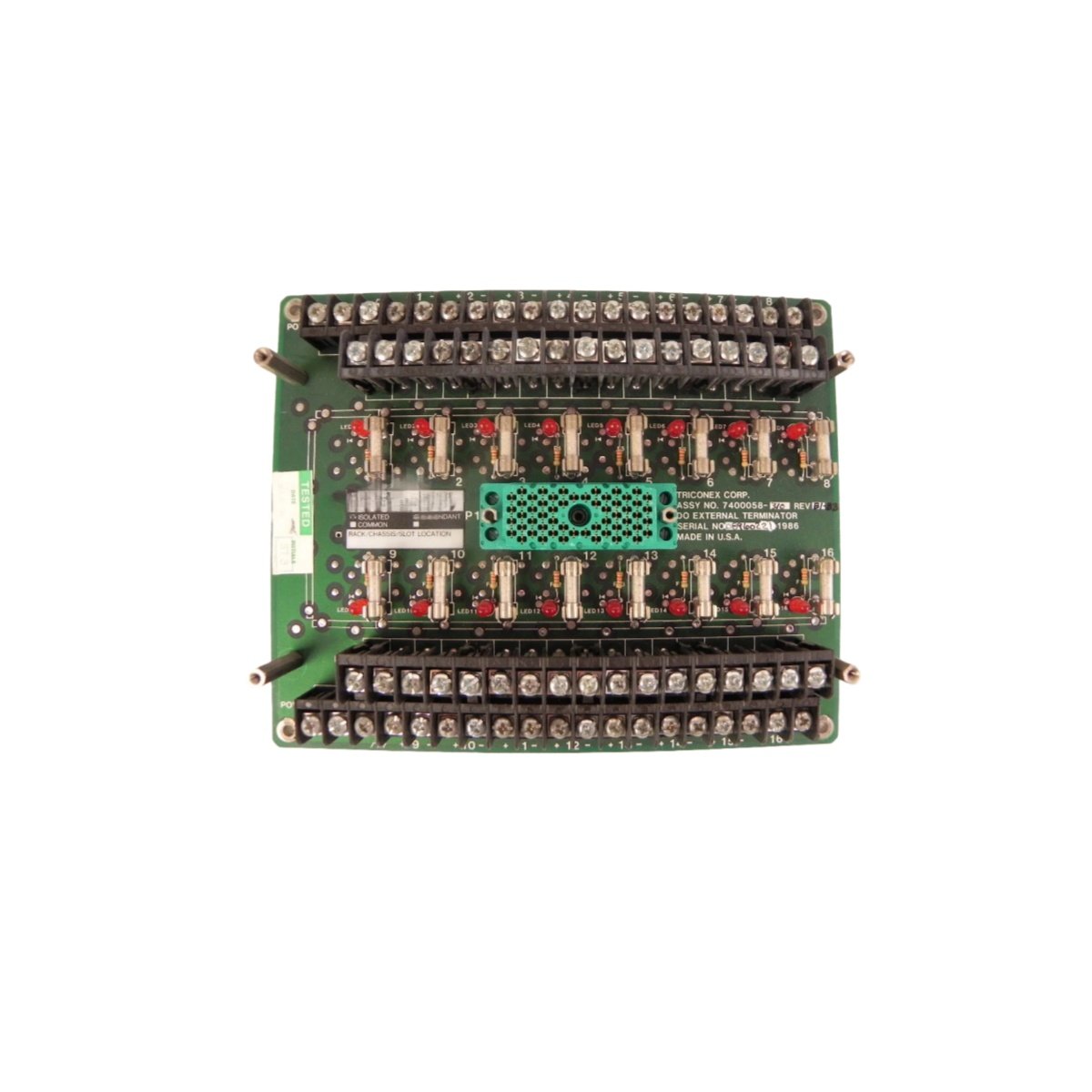

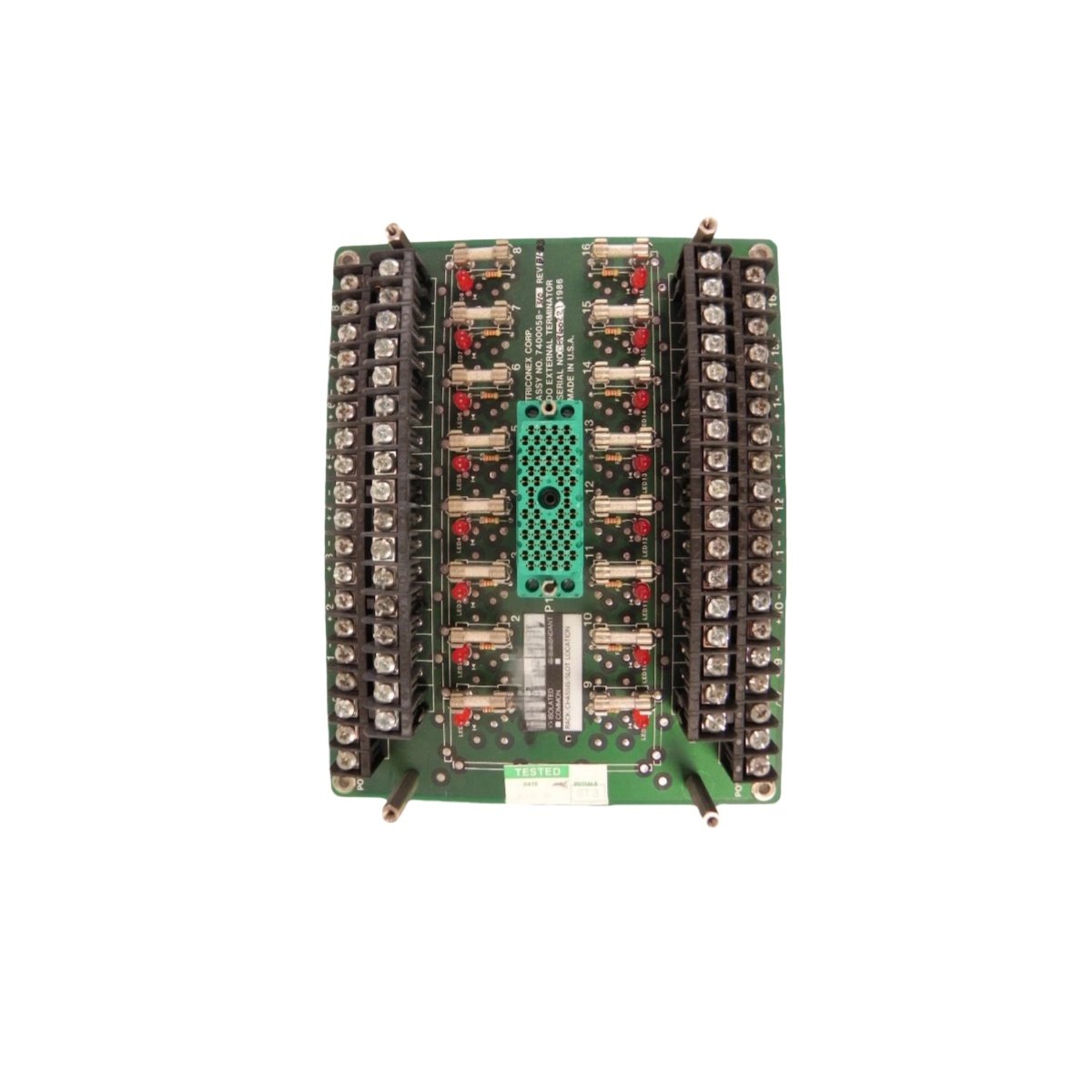

The 2652-1 provides thirty-two individual termination points in a compact assembly. Each terminal accepts solid or stranded wires from 14 to 22 AWG sizes. Screw clamp mechanisms ensure secure connections that resist vibration and loosening. Terminal numbering appears clearly with permanent laser-etched markings. Engineers identify field wiring connections quickly during installation and maintenance. The layout follows Triconex standard pin assignments for consistent system design.

Mechanical Design and Mounting

Triconex 2652-1 mounts on standard 35 mm DIN rails for flexible installation. Its compact footprint saves valuable space within safety system cabinets. The thermoplastic housing meets UL 94V-0 flammability requirements for industrial use. IP20 protection rating provides finger-safe operation while allowing heat dissipation. Jumper bars enable common connections between adjacent terminals efficiently. Label strips accept custom identification for field wiring documentation.

Electrical Ratings and Performance

The digital input terminal block handles 2 Amps continuously at voltages up to 125 Vdc. Contact material of tin-plated brass ensures reliable conductivity and corrosion resistance. Dielectric strength of 1500 Vac guarantees safe isolation between circuits. Insulation resistance exceeds 1000 MΩ for minimal leakage current in safety applications. These ratings support direct connection of field devices without additional interface hardware.

Integration with Triconex Systems

Engineers use the 2652-1 with Triconex digital input modules for complete signal interfaces. Terminal blocks mount adjacent to corresponding electronic modules for short wiring runs. Pre-assembled cables connect terminal blocks to I/O modules for reliable termination. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this assembly ensures signal integrity. Field wiring connects once to the terminal block without disturbing module connections. This architecture simplifies module replacement during maintenance procedures.

Application in Safety Systems

The 2652-1 suits various safety instrumented system applications effectively. Common uses include emergency shutdown, fire and gas monitoring, and critical process control. Field devices connect securely for reliable signal transmission to safety controllers. The terminal block maintains signal integrity essential for SIL-rated applications. Engineers appreciate the combination of mechanical robustness and electrical reliability. This digital input terminal delivers dependable performance throughout the system lifecycle.
