Product Overview

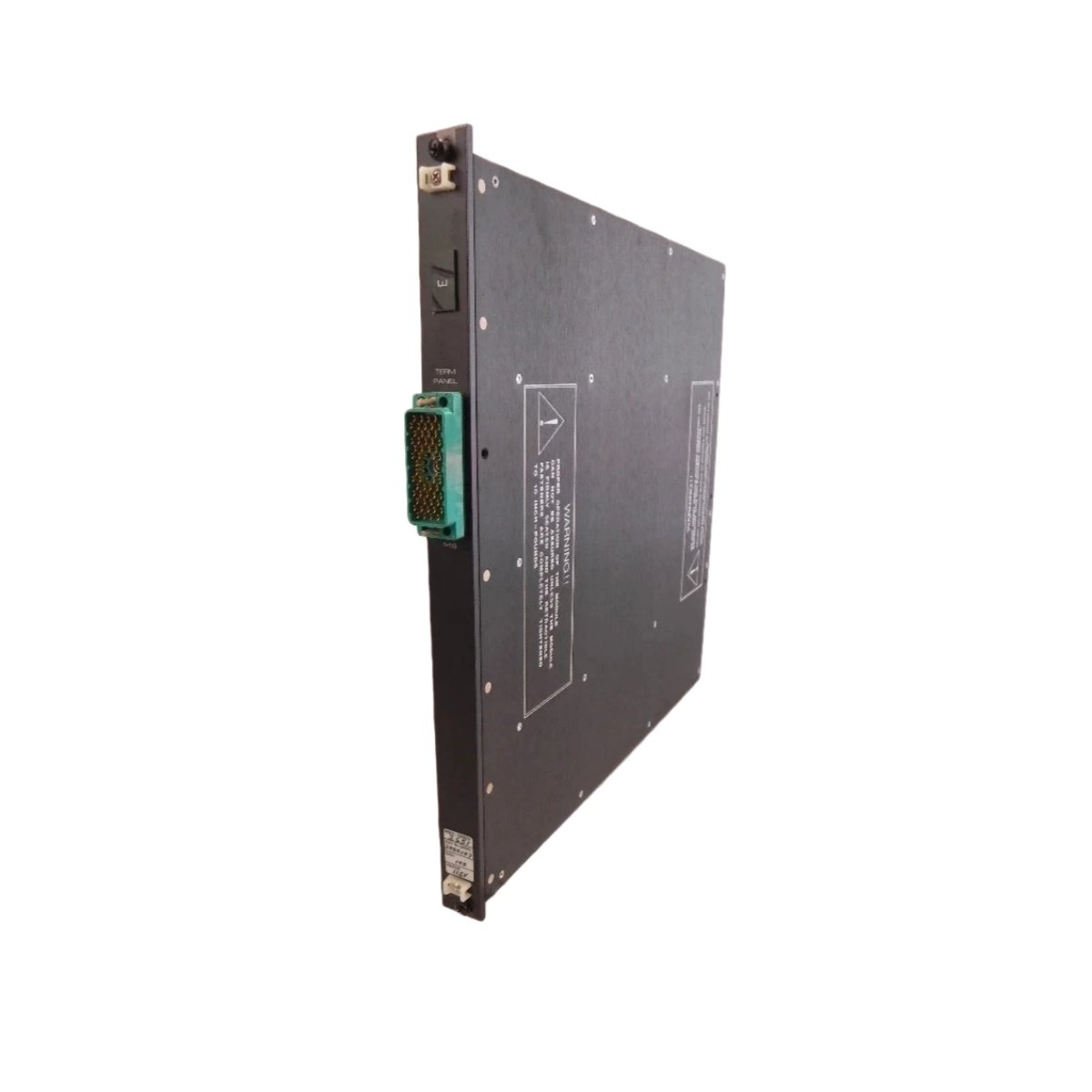

The Triconex 2651 functions as a high-reliability digital output assembly for Triconex Safety Instrumented Systems. It combines a digital output module with an external terminator rack to interface with final control elements. This assembly delivers safe and decisive control of solenoids, contactors, and alarm devices.
Key Technical Specifications
Engineers rely on this assembly for its robust switching capabilities and TMR architecture. Its design ensures fault-tolerant operation for critical safety functions. Below, we detail the core technical parameters.
| Specification | Details |
|---|---|
| Product Type | Triple Modular Redundant (TMR) Digital Output Assembly |
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | Triconex 2651 |
| Assembly Components | Digital Output Module with External Terminator Rack |
| Part Number (Rack) | LB3000107-150 |
| Output Voltage Rating | 115 VAC nominal switching capacity |
| Output Channels | Typically 16 or 32 isolated output points |
| Module Diagnostics | Continuous online monitoring with fault reporting to logic solver |
| Field Termination | External terminator rack provides easy access for field wiring |
| Mounting | Terminator rack mounts securely in standard Triconex cabinet |
| Physical Dimensions (Approx.) | Standard Triconex terminator rack size |
Detailed Features and Benefits
TMR Architecture for Fail-Safe Operation
The Triconex 2651 utilizes Triple Modular Redundant technology for each output channel. It processes every command through three independent circuits that vote on the final output state. Consequently, a single component failure cannot cause an erroneous output or prevent a required safety action.
115 VAC Switching for Industrial Control
This assembly provides reliable 115 VAC output switching for solenoids, motor starters, and alarms. It handles the voltage levels common in North American industrial installations. Therefore, you can directly interface with existing field devices without additional signal conditioning.
Integrated External Terminator Rack for Easy Wiring
The LB3000107-150 external terminator rack simplifies field wiring connections significantly. It provides clearly labeled termination points that match the output module channels. This design reduces installation time and minimizes wiring errors during system integration.
Comprehensive Online Diagnostics for Critical Integrity
The 2651 assembly performs continuous, automated self-testing during normal plant operation. It immediately detects and reports any internal fault to the main safety processor. This feature ensures you always know the health of your output control paths.
Modular Design for Simplified Maintenance
You can replace the digital output module without disturbing field wiring on the terminator rack. This modular approach reduces downtime during maintenance or troubleshooting activities. As a result, you maintain higher system availability for your safety functions.
Details
| Weight | 0.595 kg |
|---|---|
| Dimensions | 18 × 225 × 209.7 mm |
