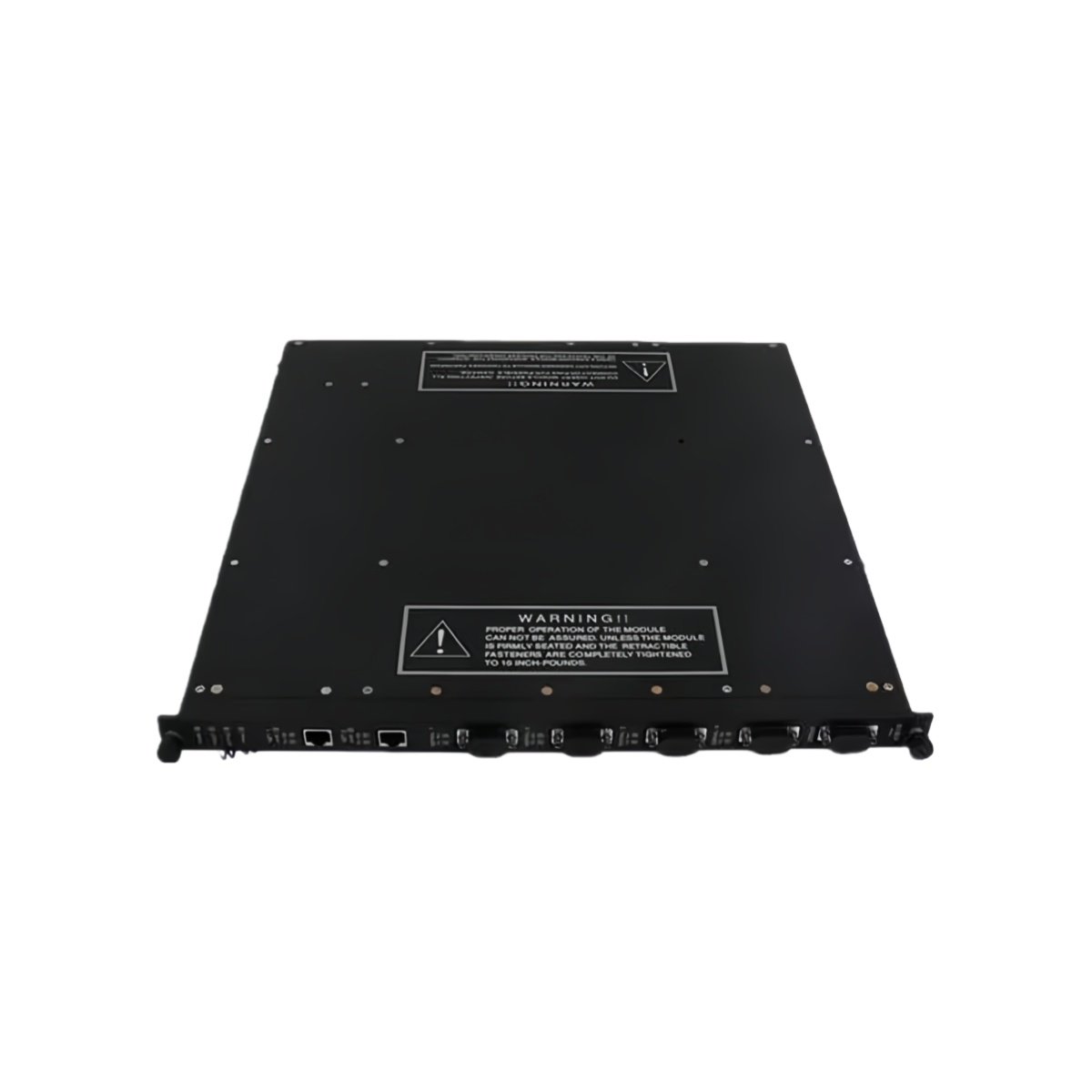

The Triconex 255703 functions as a dedicated communication module for Triconex Triple Modular Redundant (TMR) safety systems. This unit provides a robust interface between the safety controller and external networks or host systems. Consequently, it enables secure data exchange for monitoring, configuration, and integration with distributed control systems.

Core Technical Specifications

We engineered the Triconex 255703 for fault-tolerant communication in demanding safety applications requiring high availability. The table below details its essential physical and electronic parameters:

Dedicated Communication Pathways

This module provides dedicated communication channels for programming, monitoring, and system integration. It supports the TriStation protocol for engineering access and program transfers. Additionally, it handles Modbus communication for connecting to DCS, HMIs, and third-party devices.

Redundant Communication Architecture

The 255703 incorporates a TMR design for its communication paths, ensuring fault tolerance in data exchange. Even with a single point of failure in the communication circuitry, the module maintains its connection. Therefore, it guarantees continuous access to safety system data for operators and engineers.

Multiple Protocol Support for Versatility

You can configure the module to support both Modbus RTU and Modbus ASCII protocols on its serial ports. It acts as a Modbus slave, allowing external masters to read process data and diagnostics. As a result, the Triconex 255703 integrates seamlessly into plants with diverse control system architectures.

Secure Programming and Diagnostics

Engineers use the TriStation port on the 255703 to connect the Triconex engineering workstation directly to the system. This connection enables secure program downloads, online monitoring, and comprehensive diagnostic access. Consequently, it simplifies both initial commissioning and ongoing maintenance activities.

Seamless Tricon Chassis Integration

You install the 255703 communication module into a dedicated slot within the main Tricon chassis. It communicates with the main processors via the TMR backplane, ensuring data integrity. Therefore, it becomes an integral part of the safety system without requiring additional external hardware.

Reliable Operation in Industrial Environments

Triconex designed this communication module for long-term reliability in typical industrial control rooms. It operates within a temperature range of 0°C to +60°C and withstands standard industrial vibration. Its robust construction ensures consistent performance for years of continuous safety system operation.
