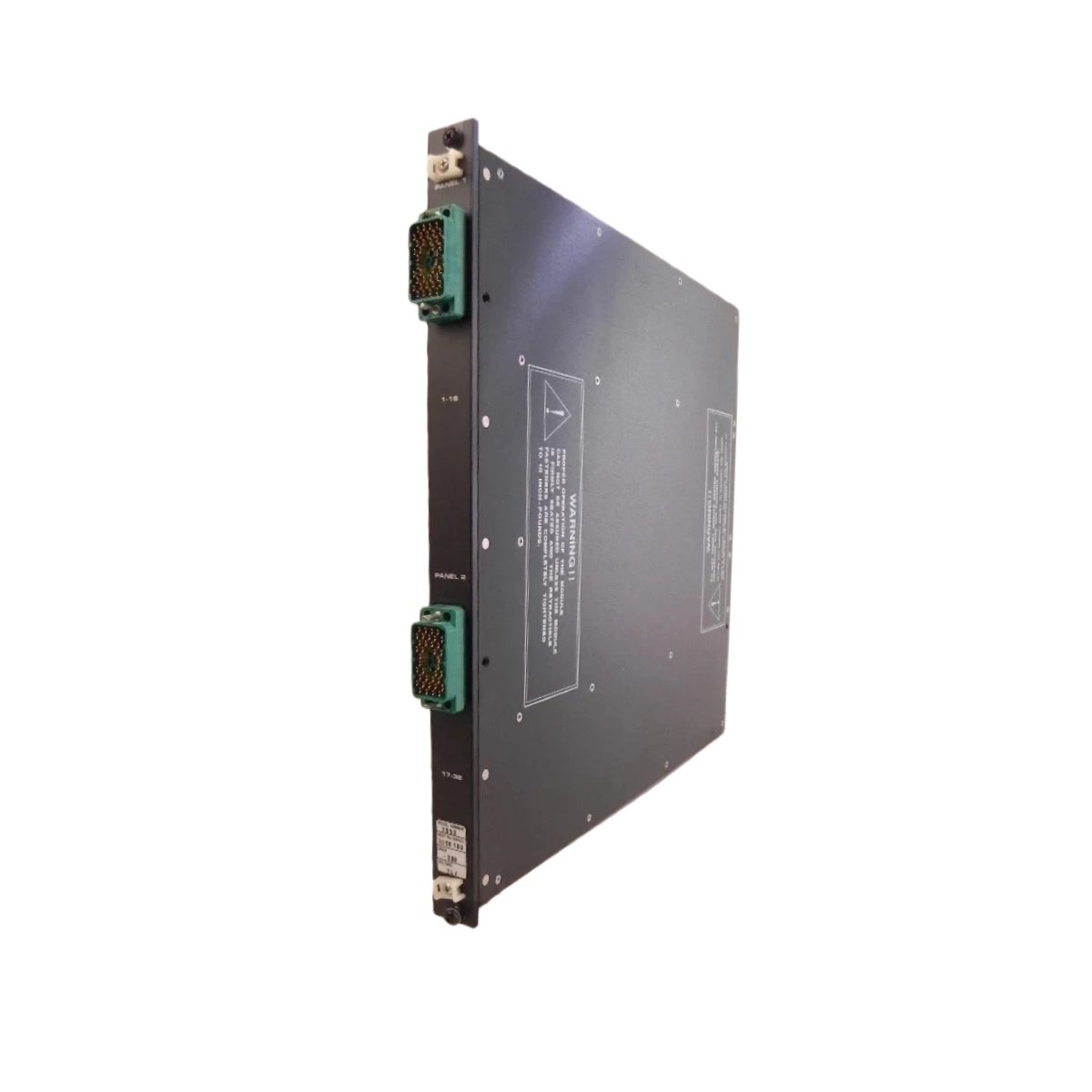

This digital input module provides dependable field contact acquisition for Triconex safety systems. It monitors discrete signals from switches, relays, and proximity sensors with high integrity. Process industries trust this unit for emergency shutdown and fire & gas applications.
Technical Specifications & Hardware Overview
Engineers value this module for its robust electrical isolation and straightforward installation. The design supports both TMR and simplex configurations within standard Triconex chassis.
| Parameter | Specification |
|---|---|
| Model | 2553 |
| Manufacturer | Triconex |
| Category | Digital Input Module |
| Input Channels | 32 points per module |
| Voltage Range | 24 VDC nominal (18–32 VDC) |
| Input Current | 5 mA typical per channel |
| Isolation Voltage | 1500 VDC between field and logic |
| Input Impedance | 4.7 kΩ typical |
| Power Consumption | 12 Watts maximum |
| Physical Size | 10.5 inches (height) x 1.5 inches (width) |
| Weight | Approximately 1.5 lbs (0.68 kg) |
Circuit Architecture and Signal Processing
This module incorporates optical isolation for each individual input channel. It uses filtering circuits to eliminate noise from industrial field environments. The 2553 communicates with the main processor through the Triconex backplane interface. Consequently, it ensures deterministic response times for critical safety logic.
Installation and Mechanical Configuration
The unit slides directly into standard Triconex chassis slots without requiring tools. A single printed circuit board assembly houses all active and passive components. This module features front-panel LED indicators for real-time channel status. Moreover, the compact width allows dense I/O configurations within limited cabinet space.
Energy Management and Operational Stability
This digital input module draws power exclusively from the system backplane connection. It features onboard capacitors for stable operation during brief power fluctuations. The 2553 performs continuous self-diagnostics during normal operation cycles. As a result, it detects open-wire conditions and short-circuit faults immediately.
Field Wiring and System Integration
Field connections terminate through a removable front-accessible terminal block. Each channel accepts both dry contact and three-wire proximity sensor inputs. This 2553 module integrates seamlessly with Triconex main processors and expansion racks. For similar industrial control components, you will find comparable reliability in static trip units like RMS-TSG-TZ-C from various manufacturers. Therefore, this module delivers essential digital input expansion for safety instrumented systems.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
