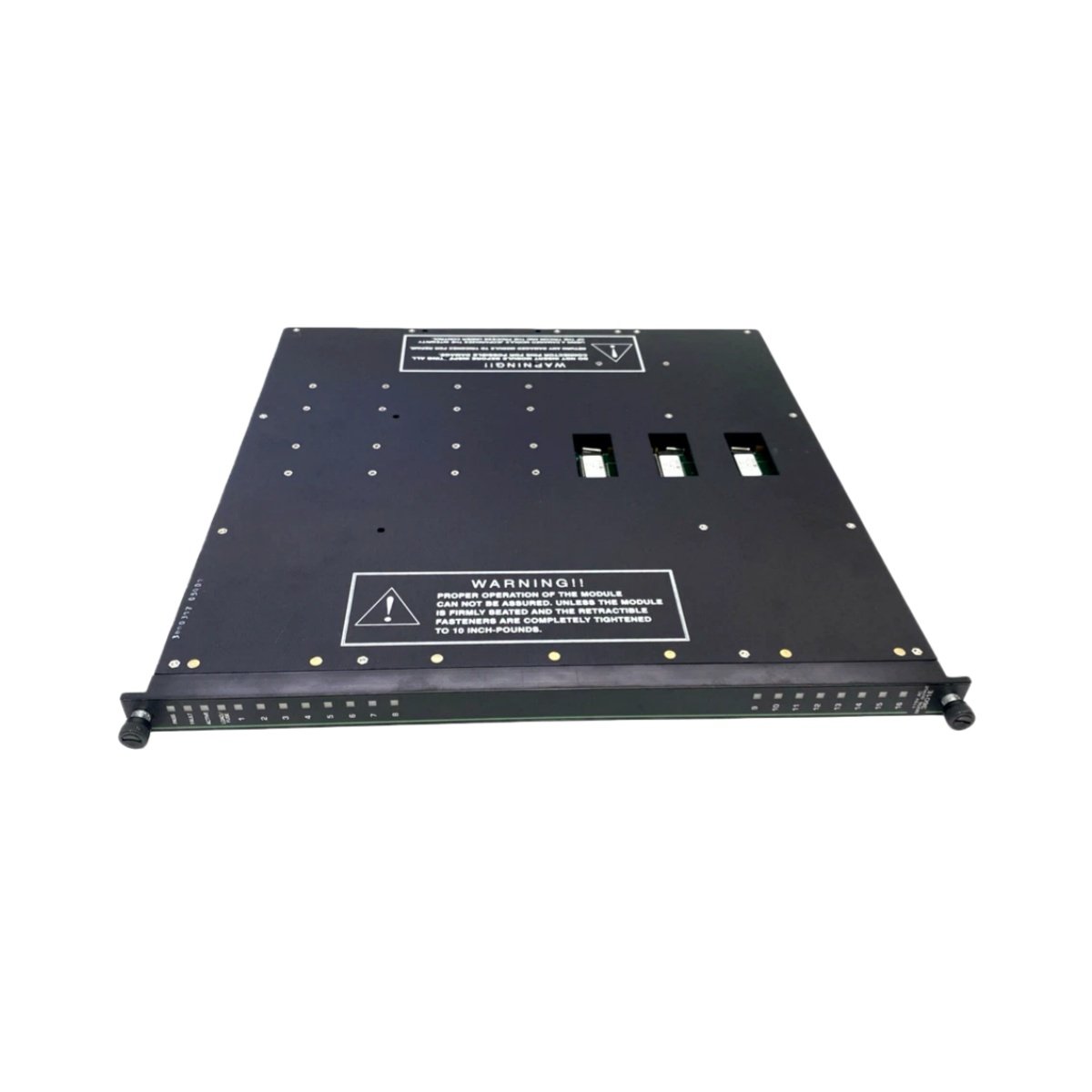

This digital output module delivers robust performance within Triple-Modular Redundant (TMR) architectures. It ensures uninterrupted control for emergency shutdown and fire & gas systems. Industrial facilities depend on this unit for mission-critical automation tasks.Triconex 2401L Output Module. 24 VDC, 2A per point, TMR architecture, energy storage capacitors, and online replacement for safety-critical systems.
Technical Specifications & Hardware Overview
Engineers rely on this module for its precise voltage handling and physical durability. The design prioritizes high-density signal control with a compact footprint.
| Parameter | Specification |
|---|---|
| Model | 2401L |
| Manufacturer | Triconex |
| Category | Digital Output Module |
| Output Channels | 8 points (TMR) or 16 points (Simplex) |
| Voltage Range | 24 VDC nominal (18–32 VDC range) |
| Current per Point | 2.0 Amps maximum |
| Power Dissipation | 12 Watts typical |
| Physical Size | 10.5 inches (height) x 1.5 inches (width) |
| Weight | Approximately 1.5 lbs (0.68 kg) |
Advanced Energy Management & Integration
This module features a significant energy storage capacitor array. Such a design maintains output hold-up during momentary power interruptions. The 2401L integrates seamlessly with the Triconex chassis via a high-speed backplane interface. It utilizes a single connector for both field wiring and logic-level communication.Triconex 2401L Output Module. 24 VDC, 2A per point, TMR architecture, energy storage capacitors, and online replacement for safety-critical systems.
Installation and Mechanical Design
The physical construction supports extreme industrial environments. A single printed circuit board assembly houses all components. This unit fits standard Triconex racks without requiring additional mounting hardware. You will find the dimensions allow for high-density installations, maximizing cabinet space.Triconex 2401L Output Module. 24 VDC, 2A per point, TMR architecture, energy storage capacitors, and online replacement for safety-critical systems.
Reliability and Application
Unlike standard PLC cards, this 2401L module supports online replacement. Field wiring connects through a removable terminal block, simplifying maintenance. It actively performs diagnostic self-tests every cycle. Consequently, system uptime improves significantly in safety-critical applications.Triconex 2401L Output Module | 24 VDC Digital Output for Safety Systems
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
