Overview

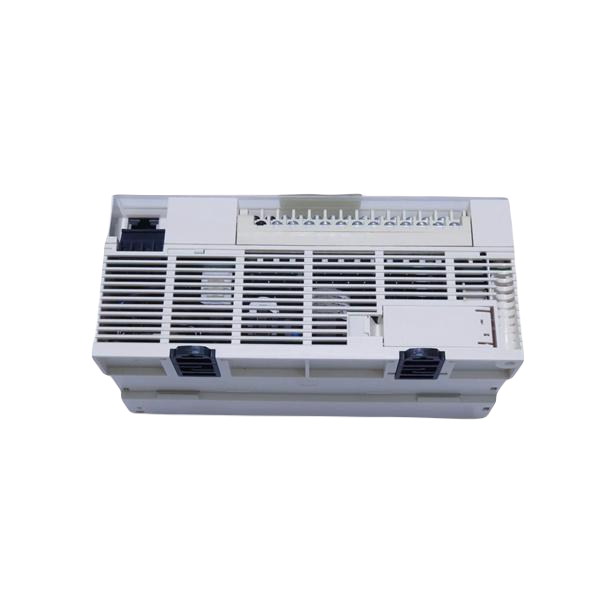

The TM218LDA40DR2HN from Schneider Electric belongs to the Modicon M218 logic controller series. It offers 40 discrete I/O points, including 24 DC inputs and 16 relay outputs. With integrated analog capabilities, it supports precise process control in industrial environments.
Electrical Specifications
This TM218LDA40DR2HN controller operates on 100…240 V AC supply with stable performance. It consumes 34 W and handles a wide supply voltage range from 85 to 264 V. The controller ensures quick response with a 2 ms switching time.
| Parameter | Value |
|---|---|
| Model Number | TM218LDA40DR2HN |
| Series | Modicon M218 |
| Rated Supply Voltage | 100…240 V AC |
| Power Consumption | 34 W |
| Supply Voltage Limits | 85…264 V |
| Input Current | 300 mA at 22…27 V |
| Discrete Input Voltage | 24 V DC |
| Discrete Output Voltage | 19.2…28.8 V DC |
| Maximum Voltage Drop | <1.5 V |
| Response Time | 2 ms (turn-on and turn-off) |
I/O and Analog Capabilities
The TM218LDA40DR2HN logic controller integrates versatile input and output options. It supports both analog voltage and current signals while ensuring efficient digital performance.
- Total Discrete I/O: 40
- Discrete Inputs: 24 (24 V DC)
- Discrete Outputs: 16 (Relay type)
- Analog Inputs: 24 channels
- Analog Outputs: 2 channels (voltage: -10…10 V, current: 0…20 mA or 4…20 mA)
- Input Impedance: 4700 Ohm (standard), 2800 Ohm (high-speed)
Environmental and Mechanical Design
The TM218LDA40DR2HN controller withstands demanding conditions with CE certification. It offers IP20 protection, vibration resistance, and reliable operation at up to 2000 m altitude.
| Specification | Value |
|---|---|
| Degree of Protection | IP20 |
| Shock Resistance | 15 gn for 11 ms |
| Vibration Resistance | 3.5 mm at 5…150 Hz |
| Operating Temperature | 0…55 °C |
| Storage Temperature | -25…70 °C |
| Relative Humidity | 95%, non-condensing |
| Pollution Degree | 2 |
| Operating Altitude | 0…2000 m |
| Storage Altitude | 0…3000 m |
Packaging and Logistics
Schneider Electric provides the TM218LDA40DR2HN with durable packaging options for global shipping. Each package ensures protection during transportation and storage.
- Package 1: PCE, single unit, 9.5 × 23.2 × 12.8 cm, 910 g
- Package 2: S03, 9 units, 30 × 29.9 × 39.8 cm, 8.69 kg
- Package 3: P12, 216 units, 95 × 80 × 120 cm, 217.56 kg
Compliance and Sustainability
The TM218LDA40DR2HN Modicon M218 controller meets global sustainability standards. It is mercury-free, RoHS compliant, and requires proper disposal under WEEE regulations.
- REACh: Declaration available
- EU RoHS: Pro-active compliance
- China RoHS: Declaration provided
- WEEE: Disposal in regulated collection systems
Details
| Weight | 0.91 kg |
|---|
