Overview

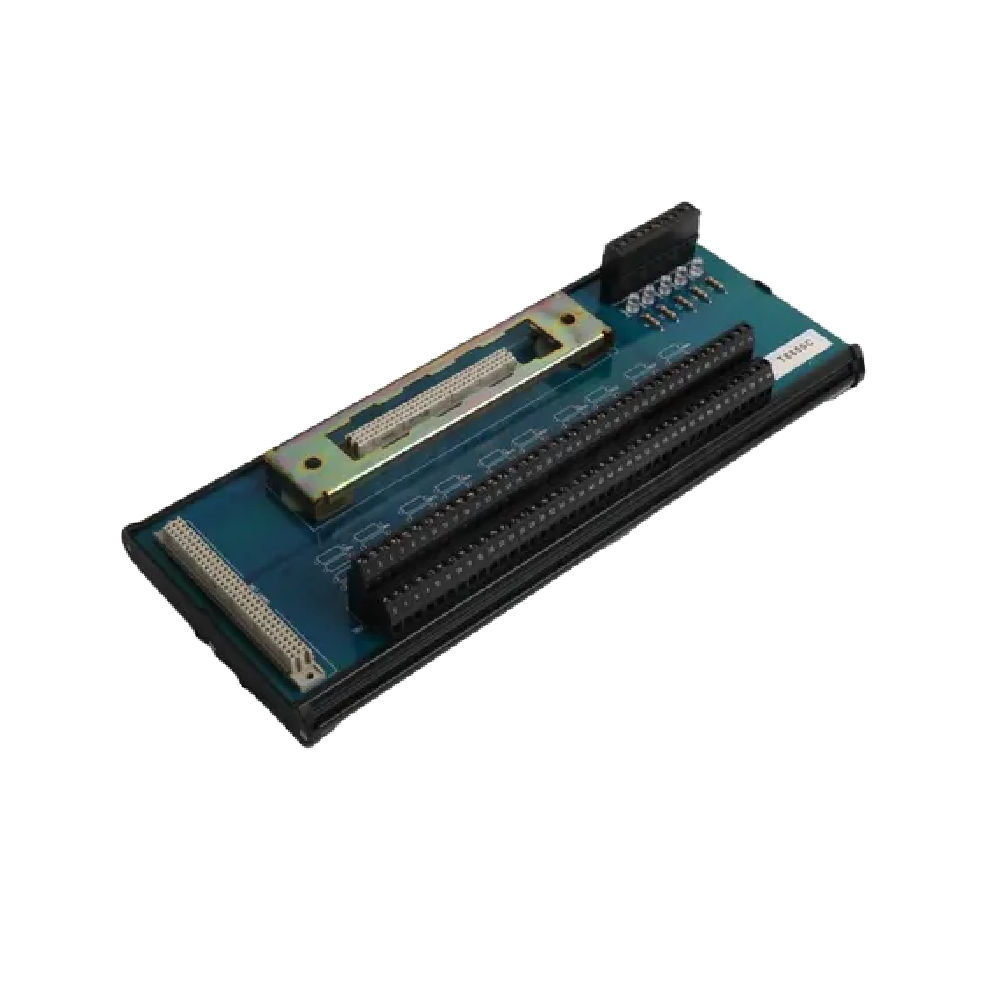

The T8850 Trusted® 40 Channel Output Field Termination Assembly (FTA) interfaces Triple Modular Redundant (TMR) output modules with field devices. It handles both analogue and digital outputs, providing fault tolerance, redundancy, and reliable operation. Its robust design simplifies integration into industrial control systems while ensuring secure and continuous operation.
Key Features
- 40 Output Channels: Supports 40 independent outputs for analogue and digital signals.
- Industry Standard Connections: 2-wire field connections for broad device compatibility.
- DIN Rail Compatible: Fits standard DIN rails for simple installation.
- Screw Clamp Terminals: Ensures secure connections for field devices and power supplies.
- SmartSlot Connection: Allows hot replacement of output modules without system downtime.
- Isolated Groups: Five isolated groups of eight channels each reduce noise and improve protection.
- Field Power LED Indicators: Monitors field power supply integrity.
- Wire Size Range: Supports 12 AWG to 28 AWG terminals.
Electrical Specifications
| Parameter | Specification |
|---|---|
| Field Supply | 60 Vdc maximum (via Trusted T8290) |
| Power Dissipation | 0.5 W per power group |
| Isolation: Power Group to Power Group | 50 V Reinforced (continuous) |
| Isolation: Field Common | 50 V Reinforced (continuous) |
| Channel to Channel Isolation | None within Power Group |
| Basic Fault Isolation | 250 V Basic (tested at 2436 Vdc, 60 s) |
| Fusing | None (requires external protection) |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Non-Operating Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Relative Humidity | 10% to 95%, non-condensing |
| Vibration | IEC 60068-2-6, 5–8.4 Hz at 3.5 mm, 8.4–150 Hz at 1g |
| Shock | IEC 60068-2-27, 15 g, 11 ms |
| Radiated & Conducted Emissions | CISPR 11, Class A (up to 6 GHz) |
| ESD Immunity | ±6 kV contact, IEC 61000-4-2:2009 |
| Surge Immunity | IEC 61000-4-5, ±4 kV line-earth, ±2 kV line-line |
| Conducted RF Immunity | IEC 61000-4-6, 10 V rms, 150 kHz–100 MHz |
| Magnetic Immunity | IEC 61000-4-8, 30 A/m |
Physical Specifications
| Parameter | Specification |
|---|---|
| Height | 110 mm (4.33 in) |
| Width | 360 mm (14.17 in) |
| Depth | 68 mm (2.67 in) |
| Weight | 950 g (2.1 lb) |
Important Notes
- For field voltages above 32 Vdc, do not connect field supply to P1 pins 1, 3, 5, 7, 9.
- Positive output connections must be routed through the Trusted Output Power Distribution Unit (OPDU), Part Number T8290.
FAQ
Q1: Is the ICS Triplex T8850 brand new and original?
A1: Yes, the T8850 is fully original, brand new, and ready for industrial use.
Q2: How many channels does this FTA support?
A2: The T8850 supports 40 output channels for both analogue and digital signals.
Q3: Can it be installed on a DIN rail?
A3: Yes, the module is DIN rail compatible for simple installation.
Q4: Does the T8850 provide isolation between channels?
A4: It has five isolated groups of eight channels, enhancing protection and noise reduction.
Q5: What if my module has a quality issue?
A5: We support returns within 30 days for any quality problems.
