Product Overview

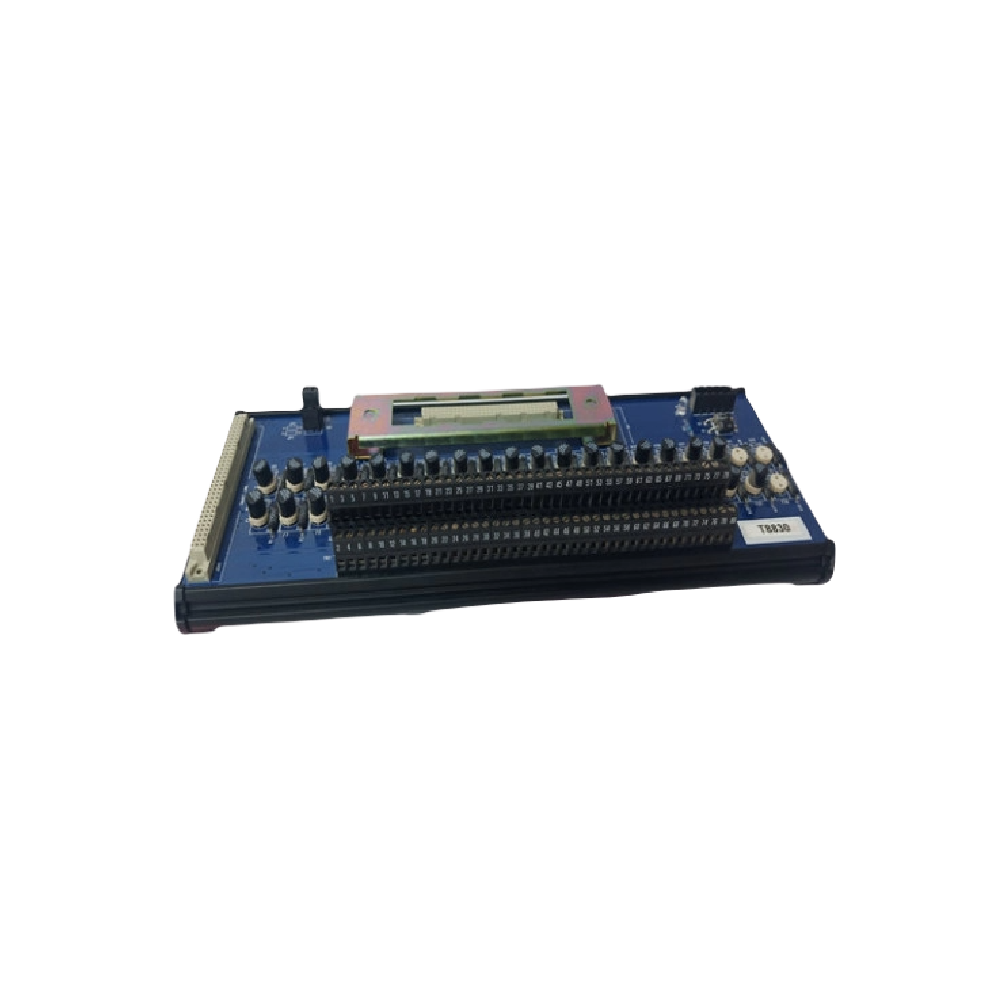

The ICS Triplex T8830 Field Termination Assembly (FTA) interfaces field devices generating analogue signals with the Trusted TMR Analog Input Module T8431. Moreover, it provides compact and robust connectivity, enabling efficient operation and ease of maintenance. In addition, the FTA ensures high reliability for industrial control applications without disrupting system performance.
Functional Highlights
- 40 Input Channels: Supports multiple field devices with standard 2-wire connections.
- DIN Rail Compatibility: Enables convenient installation and optimal space utilization.
- SmartSlot Hot Replacement: Allows one-to-many hot module swaps without system interruption.
- Fused Field Power Supply: Each channel includes an individual fuse for additional safety.
- Field Power LED Indicators: Provides clear visual confirmation of channel power integrity.
- 24 Vdc Operation: Ensures seamless compatibility with standard industrial power sources.
Technical Data
| Parameter | Specification |
|---|---|
| Module Type | T8830 FTA |
| Number of Input Channels | 40 Channels |
| Field Supply Voltage | 18–32 Vdc |
| Maximum Current per Loop | 50 mA (fused) |
| Power Consumption | 0.25 W (includes LED indicators) |
| Operating Temperature | 0–60 °C (+32–140 °F) |
| Non-Operating Temperature | -25–70 °C (-13–158 °F) |
| Relative Humidity | 10–95%, non-condensing |
| Mounting | DIN Rail |
| Dimensions (HxWxD) | 111 x 335 x 51 mm (4.4 x 13.2 x 2 in) |
| Weight | 900 g (2 lb) |
System Integration
The T8830 FTA seamlessly connects field sensors to T8431 Trusted TMR analog input modules, ensuring high-fidelity signal acquisition. Therefore, it is widely deployed in power plants, industrial automation, and petrochemical facilities, supporting critical monitoring and control tasks. In addition, hot-swap capability and fused inputs provide enhanced reliability and safety during maintenance operations.
Details
| Weight | 0.9 kg |
|---|
