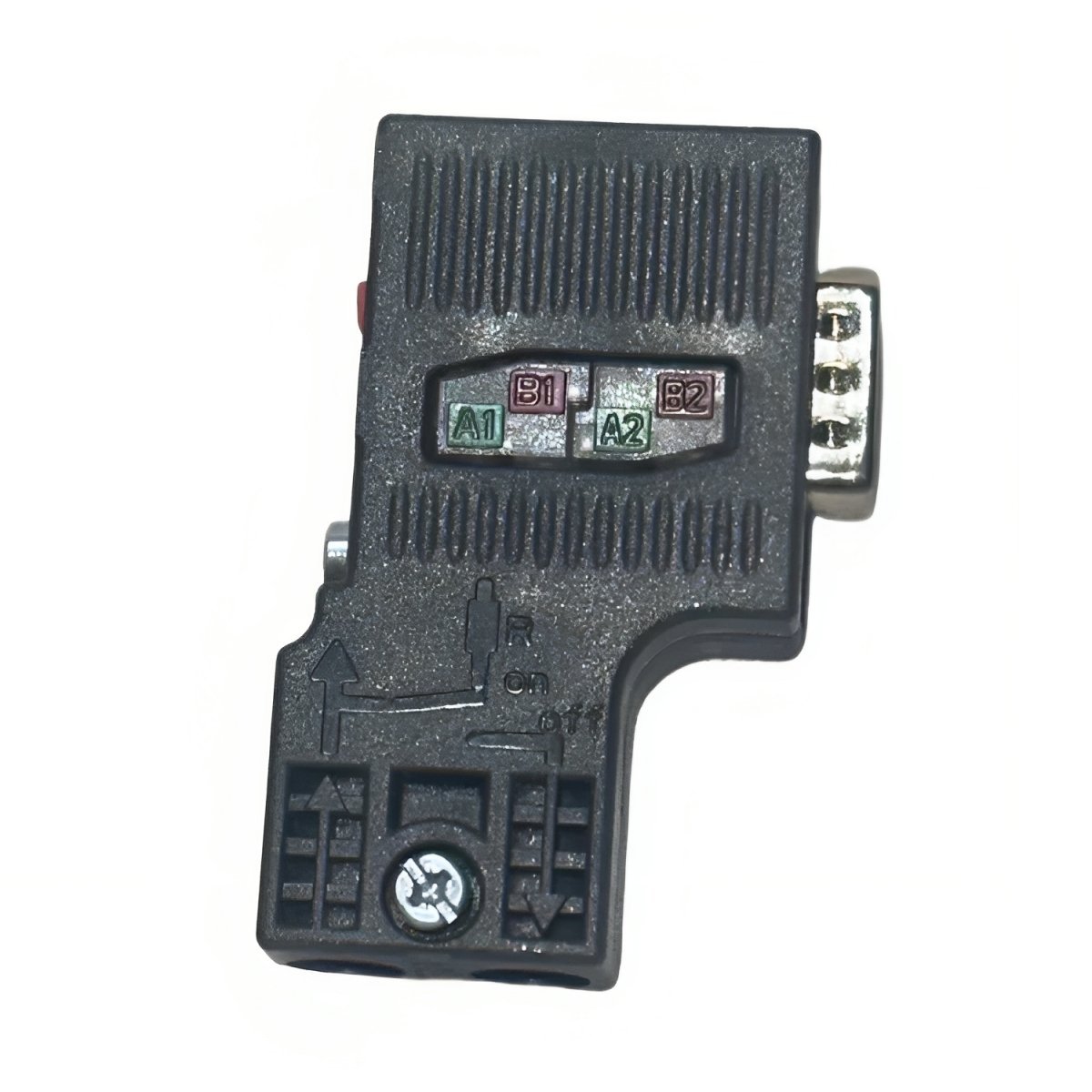

The Siemens 6ES7972-0BA52-0XA0 is a compact RS485 PROFIBUS bus connector designed for industrial automation systems. Featuring a 90° cable outlet and FastConnect technology, it enables quick, secure, and high-speed data transmission up to 12 Mbit/s. Ideal for tight spaces and reliable PROFIBUS connectivity.
Key Specifications
- Model: 6ES7972-0BA52-0XA0
- Type: RS485 PROFIBUS bus connector
- Connection Method: Insulation displacement
- Cable Outlet: 90° angled
- PG Socket: Not included
- FastConnect Technology: Yes
- Data Rate Support: Up to 12 Mbit/s
- Dimensions (W x H x D): 15.8 x 59 x 35.6 mm
- Weight: 0.040 kg
- Packaging Size: 6.80 x 7.70 x 3.20 cm
- Packaging Quantity: 1 piece
- Country of Origin: Germany
- RoHS Compliance: Yes (since 15/09/2011)
- WEEE Obligation: Yes
- REACH Compliance: Meets current candidate list
- EAN: 4025515077299
- UPC: 662643406160
- HS Code / Commodity Code: 85366990
Details
| Weight | 0.04 kg |
|---|---|
| Dimensions | 173 × 196 × 81 mm |
