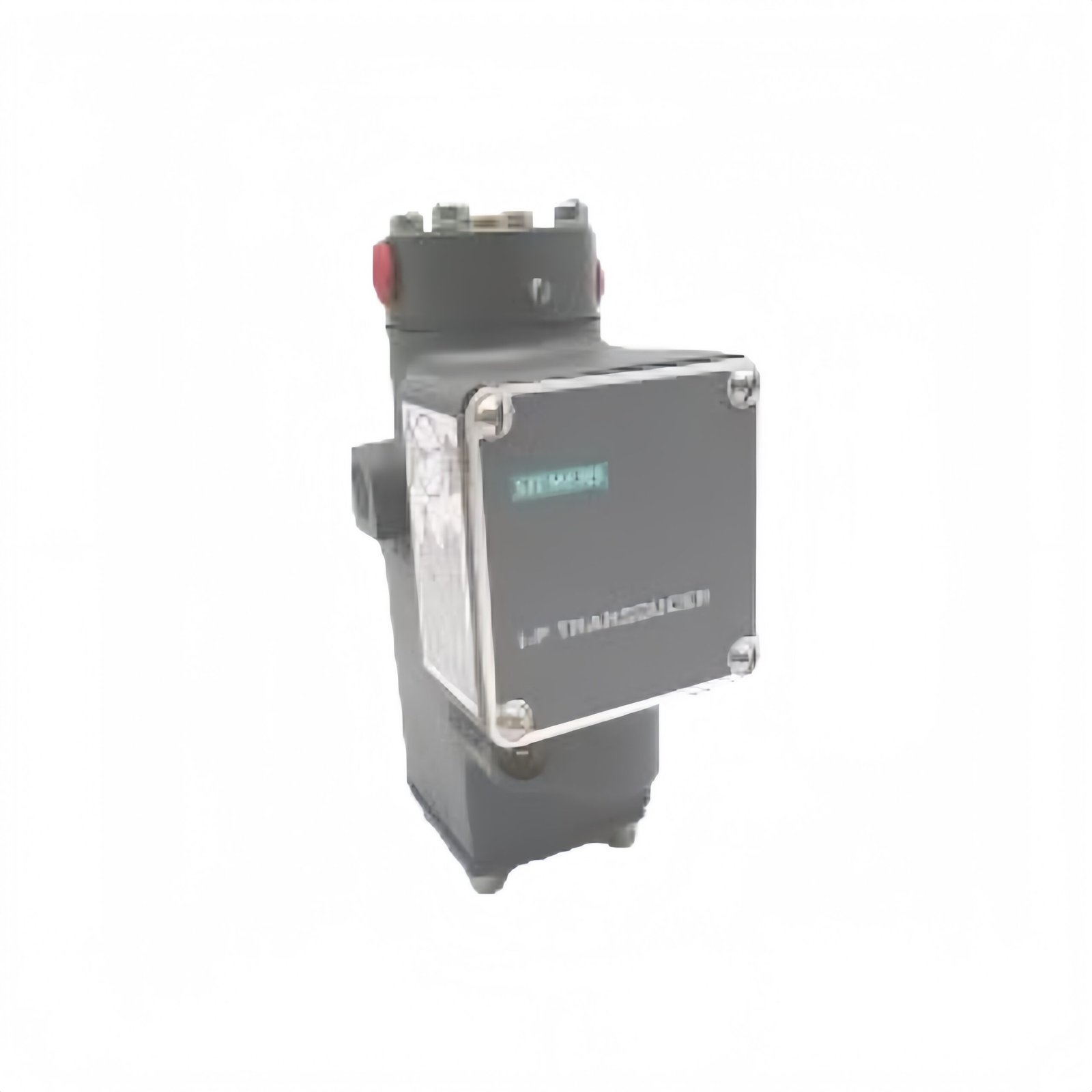

The Siemens 771-3STF2 functions as a precision current-to-pressure transducer for industrial pneumatic systems. This module converts a standard 1–5 mA electrical signal into a proportional 3–15 psig pneumatic output. Engineers select this unit when they need accurate control of pneumatic actuators, valves, and positioners. Consequently, it bridges the gap between electronic controllers and pneumatic field devices seamlessly.
Technical Specifications for the Siemens 771-3STF2
This I/P transducer features robust construction suitable for industrial environments with vibration and temperature variations. It incorporates internal feedback mechanisms that ensure accurate and repeatable output pressure. The module’s compact design simplifies installation in control panels or near field devices.
| Specification | Details |
|---|---|
| Model Number | Siemens 771-3STF2 |
| Product Type | I/P Transducer (Current-to-Pressure) |
| Dimensions (H x W x D) | 120 mm x 70 mm x 95 mm |
| Weight | 0.85 kg (1.87 lbs) |
| Input Signal | 1–5 mA DC |
| Input Impedance | 250 Ω typical |
| Output Pressure | 3–15 psig (0.2–1.0 bar) |
| Supply Pressure | 18–30 psig (1.2–2.1 bar) |
| Air Consumption | 0.15 SCFM steady state |
| Flow Capacity | 8 SCFM at 25 psig supply |
| Accuracy | ±0.5% full scale typical |
| Repeatability | ±0.2% full scale |
| Hysteresis | ±0.3% full scale |
| Response Time | 0.3 seconds typical |
| Temperature Effect | ±0.02% per °C |
| Vibration Effect | <1% up to 10g at 80 Hz |
| Mounting Position | Any orientation |
| Port Connections | 1/8″ NPT (supply and output) |
| Electrical Connection | Screw terminals, 14–22 AWG |
| Enclosure Material | Die-cast aluminum with epoxy coating |
| Protection Rating | NEMA 4X / IP65 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0–100% condensing |
| Certifications | CE, UL, CSA, FM, ATEX (hazardous locations) |
Advanced Conversion Technology
The Siemens 771-3STF2 employs a balanced force feedback system that ensures exceptional linearity. This design compensates for supply pressure variations and ambient temperature changes automatically. Additionally, the unit includes an internal volume booster that provides high flow capacity for rapid actuator response. The low steady-state air consumption minimizes operating costs in continuous-duty applications. You can mount the transducer in any orientation without recalibrating the output. This flexibility simplifies installation in tight spaces or retrofitting existing panels. The NEMA 4X enclosure protects internal components from washdown environments and corrosive atmospheres. Therefore, the module performs reliably in food processing, chemical plants, and outdoor installations.
System Integration and Manufacturer Context
Siemens engineered the 771-3STF2 as part of their comprehensive industrial instrumentation portfolio. This I/P transducer integrates seamlessly with electronic controllers, PLCs, and DCS systems requiring pneumatic interface. It works exceptionally well with control valves, damper actuators, and pneumatic positioners in process industries. The 1–5 mA input signal matches many older analog control systems and some modern controllers. You can mount the 771-3STF2 directly on valve actuators using the optional mounting bracket. For detailed installation guidelines, consult the Siemens manual under the 771-3STF2 product documentation. This transducer exemplifies Siemens’ expertise in precision measurement and control components for industrial automation applications.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
