Product Overview

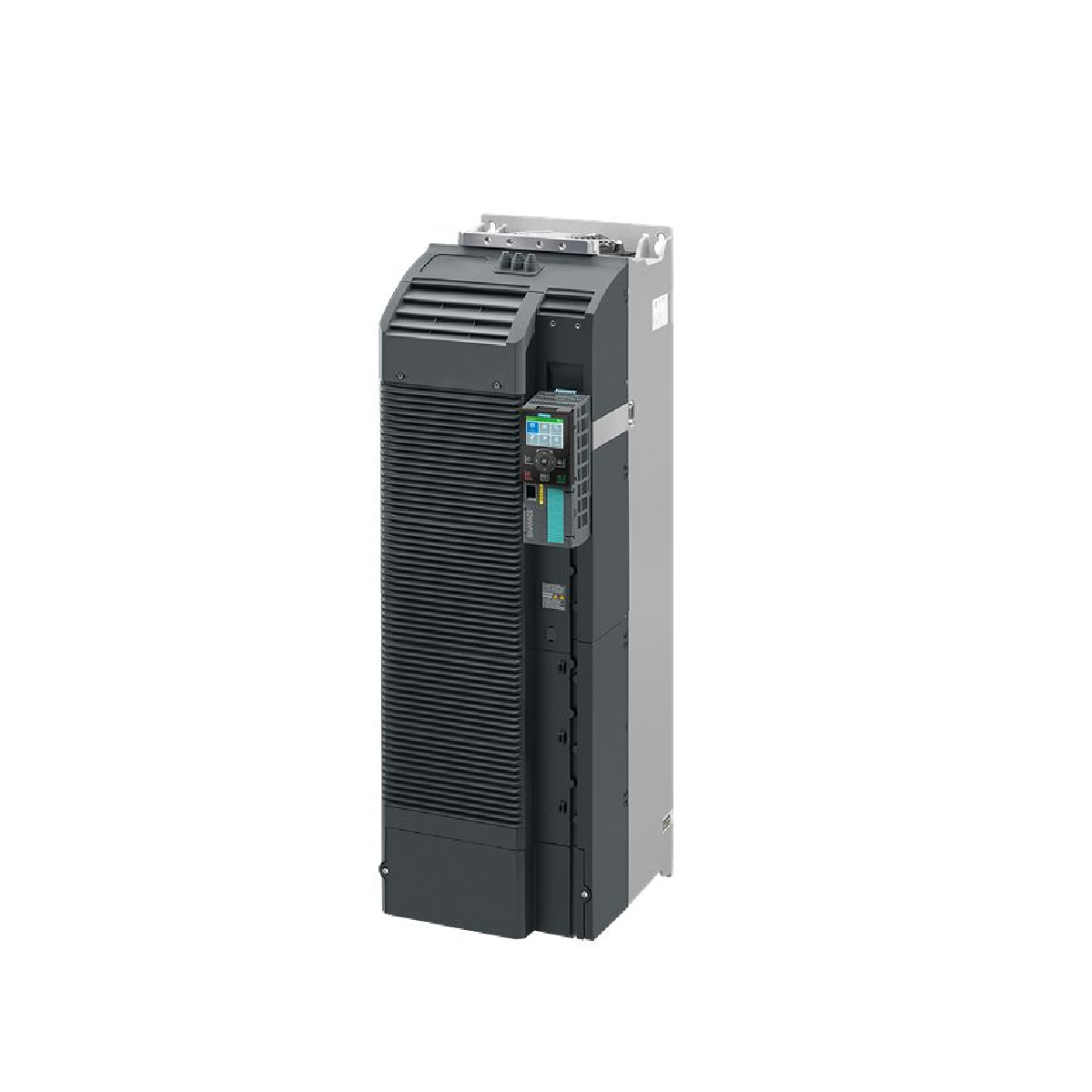

The Siemens 6SL32101PE330AL0 PM240-2 FSG Power Module is engineered for high-performance industrial applications. It integrates an EMC filter (Class C2) and a built-in braking chopper, offering superior reliability and efficiency. This module is designed to work with SINAMICS G120 and SINAMICS S120 drive systems, making it ideal for environments requiring stable and powerful performance.

The power module operates with a 3AC 380-480V input voltage and a frequency of 47-63 Hz, delivering consistent results across various industrial applications.

Key Features

• Integrated EMC Filter: Class C2 for improved electromagnetic compatibility
• Braking Chopper: Built-in for efficient energy dissipation
• Voltage Range: 3AC 380-480V (+10/-10%)
• Frequency Range: 47-63 Hz
• Overload Capacity (High):
  • 132 kW for 200% (3s), 150% (57s), 100% (240s)
• Overload Capacity (Low):
  • 160 kW for 150% (3s), 110% (57s), 100% (240s)
• Ambient Temperature:
  • High Output: -20 to +50°C
  • Low Output: -20 to +40°C
• Protection Class: IP20
• Dimensions: 1000 x 305 x 357 mm (HxWxD)

Product Specifications

• Net Weight: 235.9 lb
• Packaging Dimensions: 46.85 x 15.551 x 23.268 inches
• Country of Origin: Germany
• Compliance: RoHS Compliant (since 01/01/2018)

Product Lifecycle

• Product Status: Active
• Firmware: Compatible with CU Firmware versions V4.7 SP9 and V5.1

Delivery & Dispatch

• Export Control: ECCN: 9N9999 / AL: N
• Estimated Dispatch Time: 15 Working Days
• Packaging Quantity: 1 Piece

FAQ

Q1: What is the input voltage range for the Siemens PM240-2 FSG Power Module?
A1: The power module supports a voltage range of 3AC 380-480V (+10/-10%).

Q2: How is the Siemens PM240-2 FSG Power Module protected?
A2: The module has a protection class of IP20, ensuring durability in various industrial settings.

Q3: Can the PM240-2 FSG be used in extreme temperatures?
A3: Yes, the module operates in ambient temperatures ranging from -20°C to +50°C (high output) and -20°C to +40°C (low output).

Q4: Is the Siemens PM240-2 FSG Power Module RoHS compliant?
A4: Yes, this power module is RoHS Compliant since 01/01/2018.

Q5: What is the warranty policy for the Siemens PM240-2 FSG?
A5: We support a 30-day return policy for quality-related issues.
