Product Overview

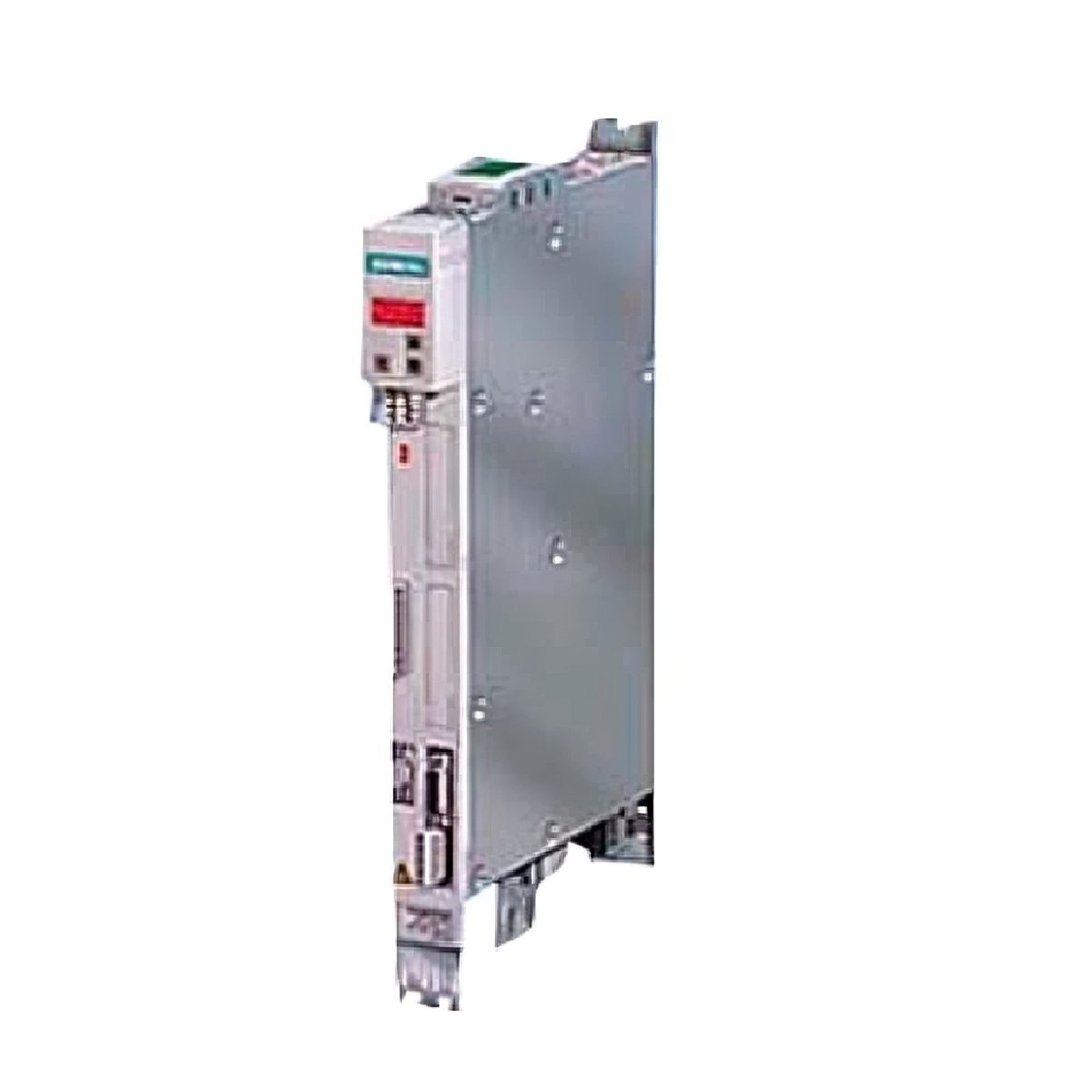

The Siemens 6SE7023-4EP70 is part of the renowned SIMOVERT Masterdrives Motion Control series, designed for high-precision industrial motion applications.
This compact plus converter supports 380–480 V three-phase AC input at 50/60 Hz, delivering a rated power of 15 kW.
It is engineered for performance-critical environments where accuracy, torque control, and operational stability are essential.
Moreover, its IP20-rated enclosure ensures safe installation in controlled cabinet environments.
The converter is fully compatible with Siemens automation ecosystems, providing seamless integration into multi-axis motion systems.
Functional Highlights
- High Power Efficiency: Rated at 15 kW output for robust and continuous motion control.
- Precision Motion Control: Ideal for demanding servo and vector control applications.
- Compact Design: Slim, space-saving structure simplifies installation and wiring.
- Reliable Performance: Built for 24/7 industrial use, ensuring minimal downtime.
- German Engineering Quality: Manufactured with Siemens’ industry-leading reliability standards.
- Flexible Voltage Range: Operates efficiently within 380–480 V AC systems.
- Comprehensive Protection: Features overload, short-circuit, and thermal protection.
In addition, its modular structure allows easy integration into existing drive systems, supporting scalable automation setups.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Number | 6SE7023-4EP70 |
| Series | SIMOVERT Masterdrives Motion Control |
| Input Voltage | 380 V – 480 V 3 AC, 50/60 Hz |
| Rated Power Output | 15 kW |
| Output Current | 34 A |
| Output Frequency (V/f Control) | 0 – 400 Hz |
| Protection Rating | IP20 |
| Cooling Type | Forced air cooling |
| Control Type | Vector or servo drive |
| Weight | 14.9 kg |
| Mounting Style | Panel-mounted |
| Warranty | 1 year |
| Country of Origin | Germany |
Therefore, the 6SE7023-4EP70 provides a durable, efficient, and technically advanced solution for motion control applications across multiple industries.
System Integration
The 6SE7023-4EP70 integrates smoothly into Siemens automation platforms such as SIMATIC and SINAMICS environments.
For instance, it supports synchronized multi-axis motion, coordinated speed control, and precise positioning through digital interfaces.
Moreover, its compatibility with standard fieldbus systems simplifies system upgrades and retrofits.
Typical applications include:
- CNC machinery and metal forming systems
- Packaging, printing, and textile machines
- Conveyor and handling automation
- Robotics and servo-controlled manufacturing lines
This flexibility makes it a preferred choice for both OEMs and plant integrators seeking scalable and efficient motion solutions.
Details
| Weight | 14.9 kg |
|---|---|
| Dimensions | 4572 × 9144 × 6604 mm |
