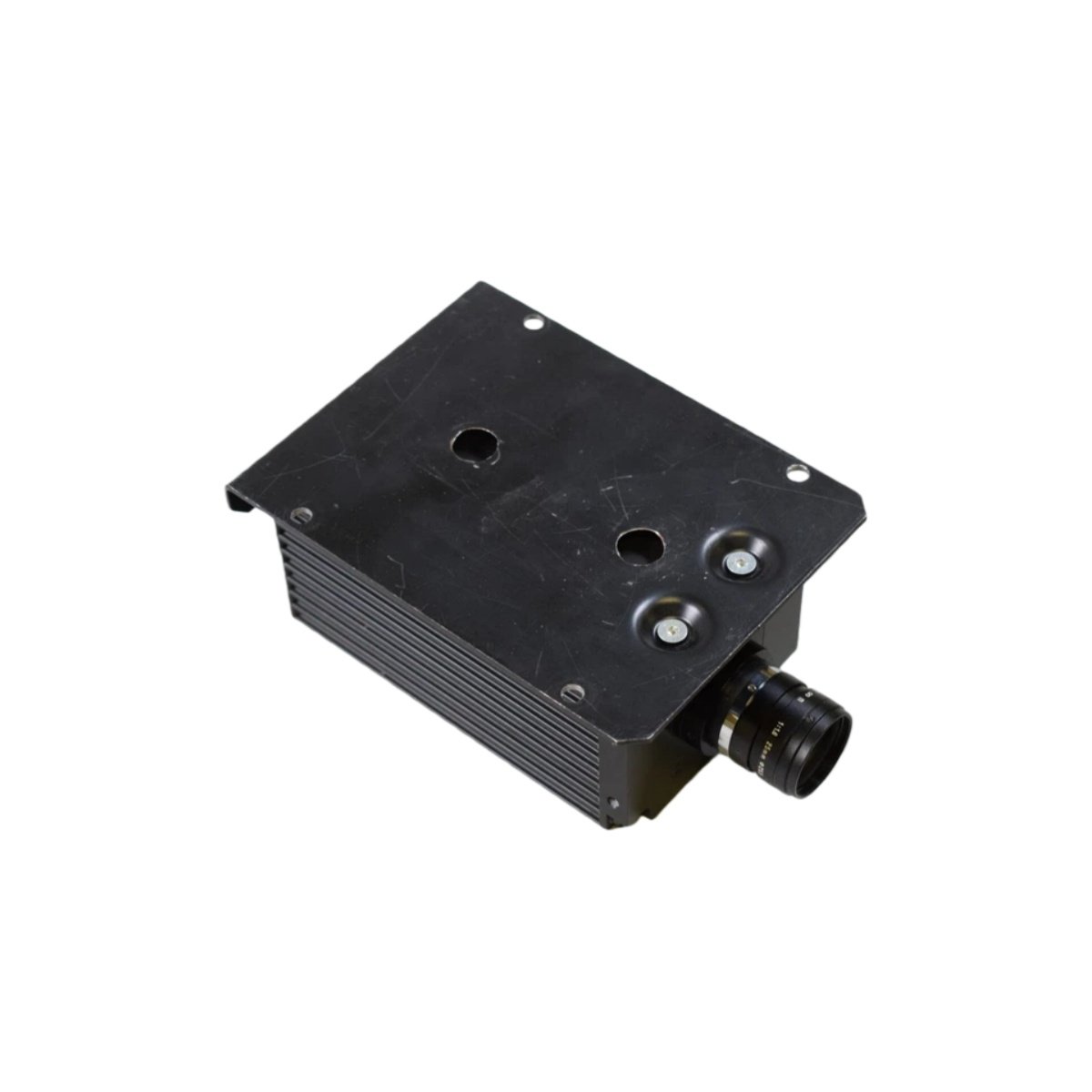

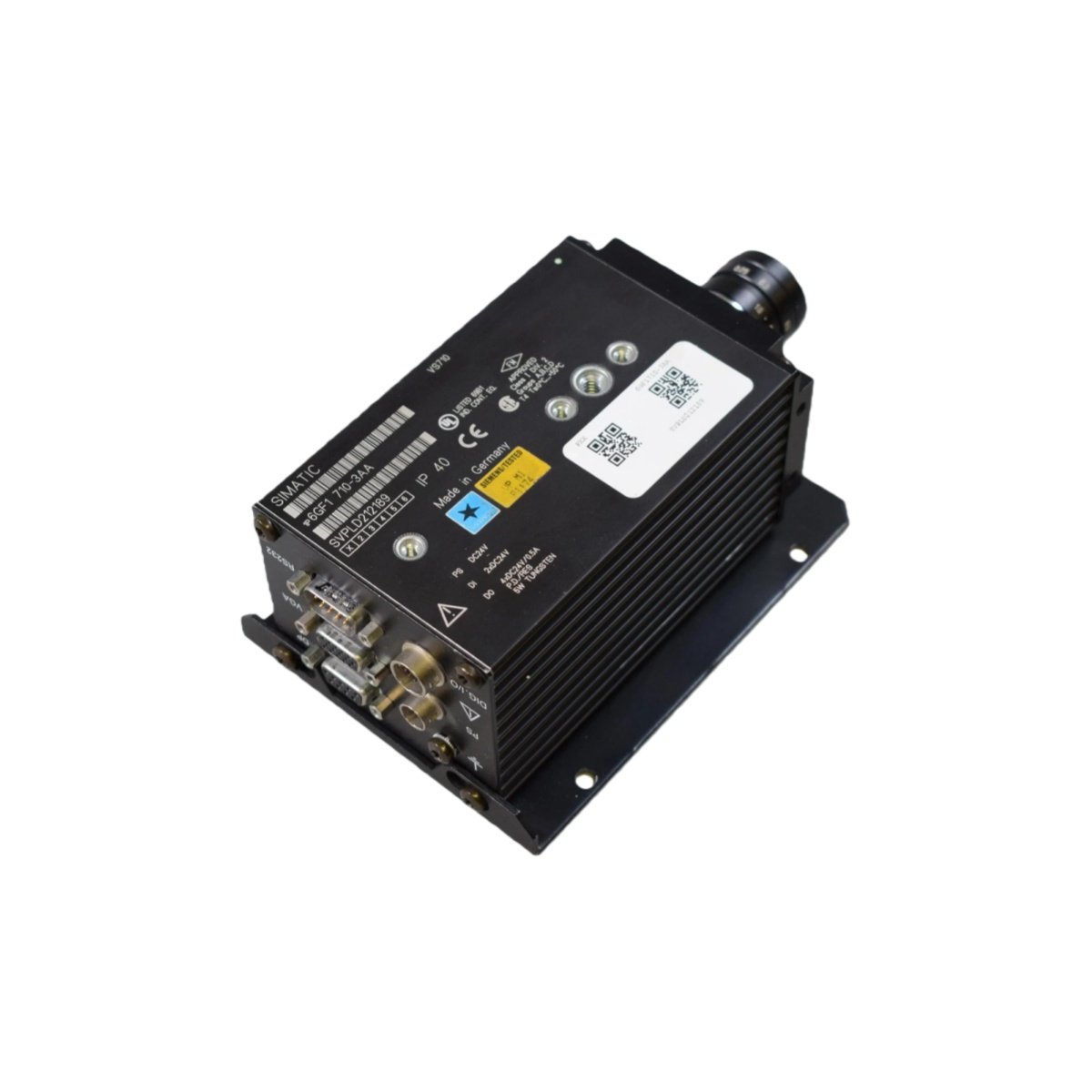

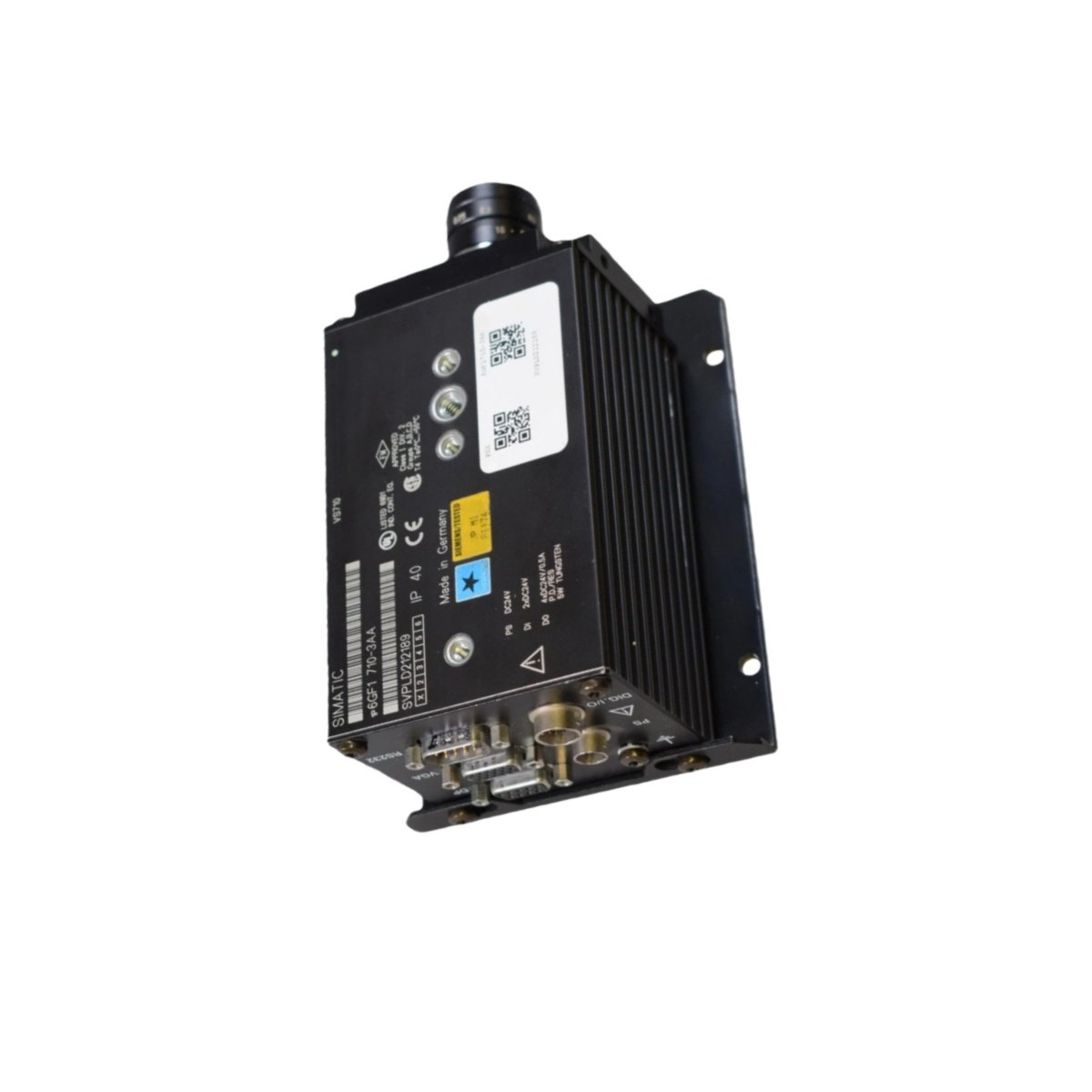

The Siemens 6GF1710-3AA functions as a vision sensor for industrial inspection and identification tasks. Siemens designed this device for capturing high-resolution images within automated production environments. This component integrates seamlessly with PROFIBUS DP networks for real-time data transmission.

Imaging Capabilities and Resolution

This vision sensor captures picture formats up to 768 x 512 pixels for detailed inspection. It processes images locally using its onboard memory architecture. Therefore, operators can perform quality control tasks without external computing resources.

Technical Specifications

Memory Architecture and Data Handling

The Siemens 6GF1710-3AA features 16 MB of expanded main memory for image processing. It also includes 16 MB of flash disk storage for firmware and configuration data. Consequently, users can store multiple inspection programs directly on the device.

Interface and Connectivity

This vision sensor incorporates a PROFIBUS DP interface for industrial network integration. It communicates directly with PLC systems for coordinated automation workflows. Moreover, the configurable design allows operators to adapt settings through provision software tools.

Power Requirements and Efficiency

The device draws only 0.5 AMP at 24 VDC for efficient operation. It consumes just 5 WATTS of power during normal use. Therefore, facilities can integrate this sensor without significant power budget considerations.

Environmental Specifications

This vision sensor operates reliably within a temperature range of +5°C to +50°C. It suits indoor industrial environments with controlled ambient conditions. The robust construction ensures consistent performance across various production settings.

Physical Characteristics

Measuring approximately 4.7 inches in length, this compact sensor fits easily into tight installation spaces. It weighs only 0.85 lbs, making it simple to mount in various orientations. The integrated housing protects optical components from dust and debris.

System Integration

This vision sensor belongs to the Siemens industrial vision product family. It works alongside TI505 PLC systems and other Siemens automation components. Consequently, manufacturers can add vision capabilities to existing control architectures. The Siemens 6GF1710-3AA provides reliable inspection functionality for facilities requiring high-resolution image capture with PROFIBUS connectivity.
