Overview

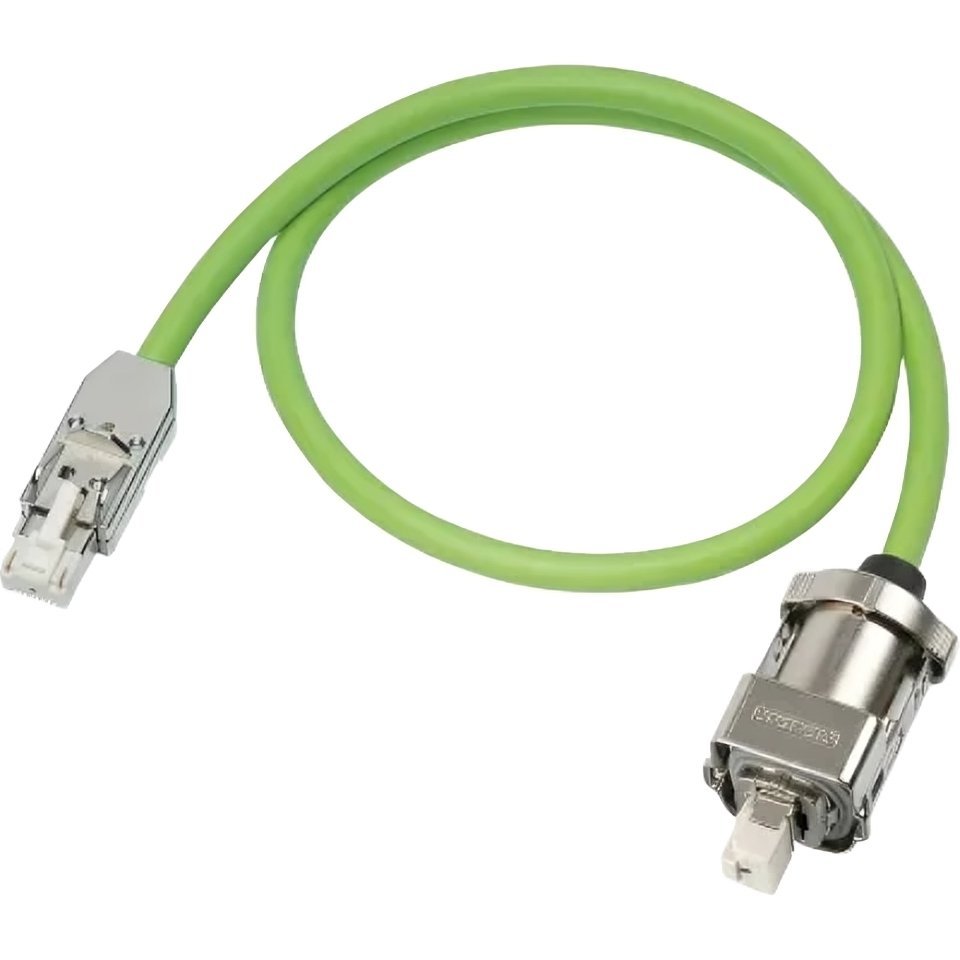

The Siemens 6FX8002-2EQ20-1BA0 is a high-quality signal cable specifically designed for absolute encoders (EnDat) in motor AH20. It features a durable M17 connector with full threading and a MOTION-CONNECT 800PLUS trailable design. This cable ensures reliable signal transmission and long-term performance in demanding industrial automation environments.
Key Features
- Pre-assembled signal cable for absolute encoders (EnDat)
- Compatible with motor AH20 systems
- M17 full-thread connector for secure and stable connection
- MOTION-CONNECT 800PLUS design for durability and flexibility
- Multiple cable structures for different signal requirements (3x 2×0.14 mm² C, 4x 0.14 mm², 2x 0.5 mm², 4x 0.22 mm² C)
- Cable diameter: 9.8 mm
- Cable length: 10 meters
- Certified to UL/CSA DESINA standards
- RoHS compliant since 31.12.2006
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Signal Cable for Absolute Encoder (EnDat) |
| Article Number | 6FX8002-2EQ20-1BA0 |
| Product Type | Pre-assembled signal cable |
| Compatible With | Absolute encoder EnDat in motor AH20 |
| Connector Type | M17 full-thread |
| Cable Structure | 3x 2x 0.14 mm² C, 4x 0.14 mm², 2x 0.5 mm², 4x 0.22 mm² C |
| Cable Diameter | 9.8 mm |
| Cable Length | 10 meters |
| Certification | UL/CSA DESINA |
| Product Lifecycle | PM300 – Active Product |
| Net Weight | 2.648 lb (≈ 1.2 kg) |
| Packaging Quantity | 1 unit |
| Country of Origin | Slovakia |
| RoHS Compliance | Since 31.12.2006 |
| WEEE Take-Back Obligation | Yes |
| Commodity Code | 85444290 |
| UPC | 040892972290 |
| Catalog ID | NCZ-M |
| Product Group | 9300 |
| Group Code | R220 |
| Classification Standards | eClass 27-06-18-01 (v6-14), ETIM EC003249 (v7-9), UNSPSC 26-12-16-09 |
Applications in Industrial Automation
The 6FX8002-2EQ20-1BA0 cable is ideal for connecting absolute encoders in AH20 motors, ensuring precise and stable signal transmission. Its robust construction allows it to withstand mechanical stress, while its certification guarantees compliance with industrial standards. Engineers can rely on this cable for continuous operation in factories, automation systems, and process control environments.
Details
| Weight | 1.2 kg |
|---|
