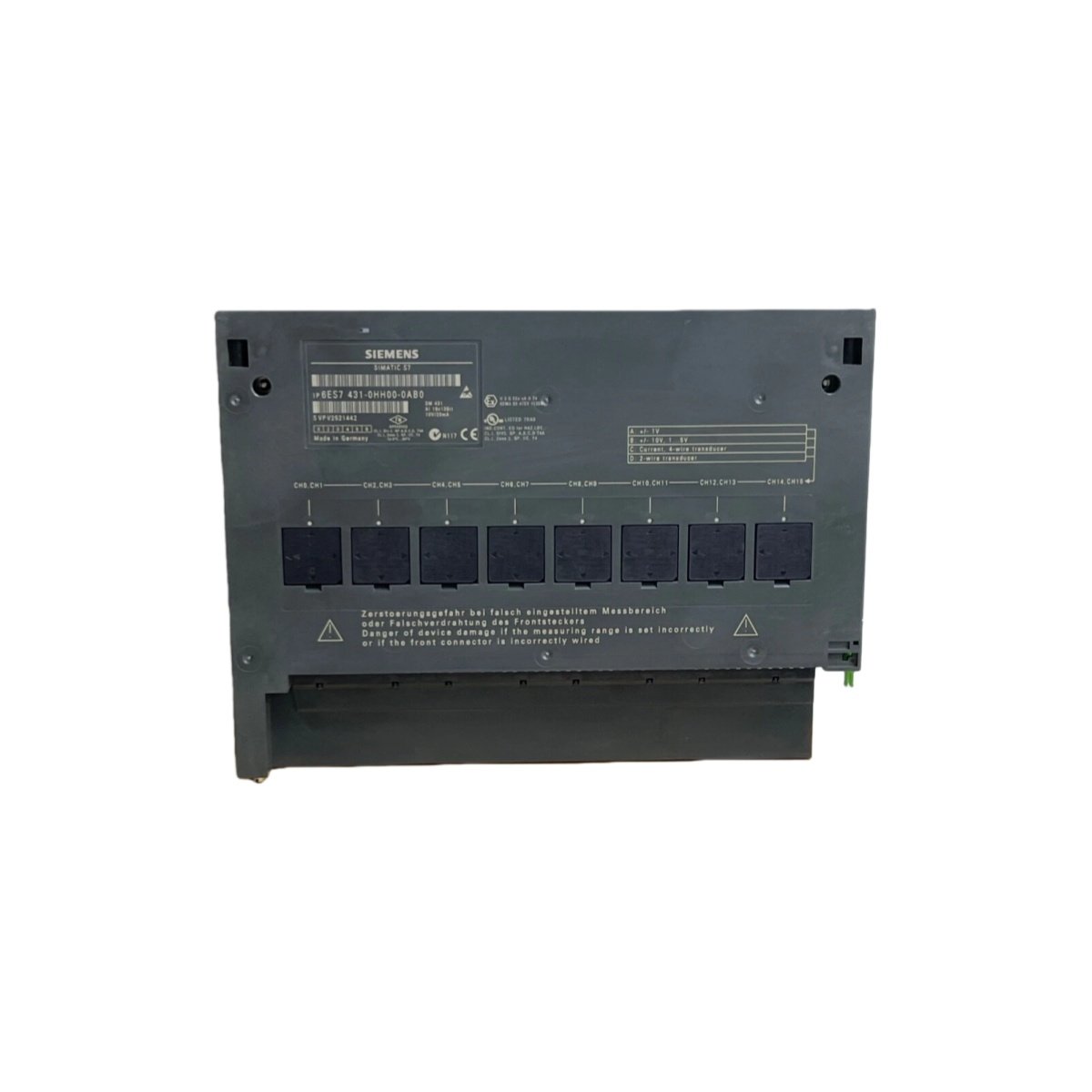

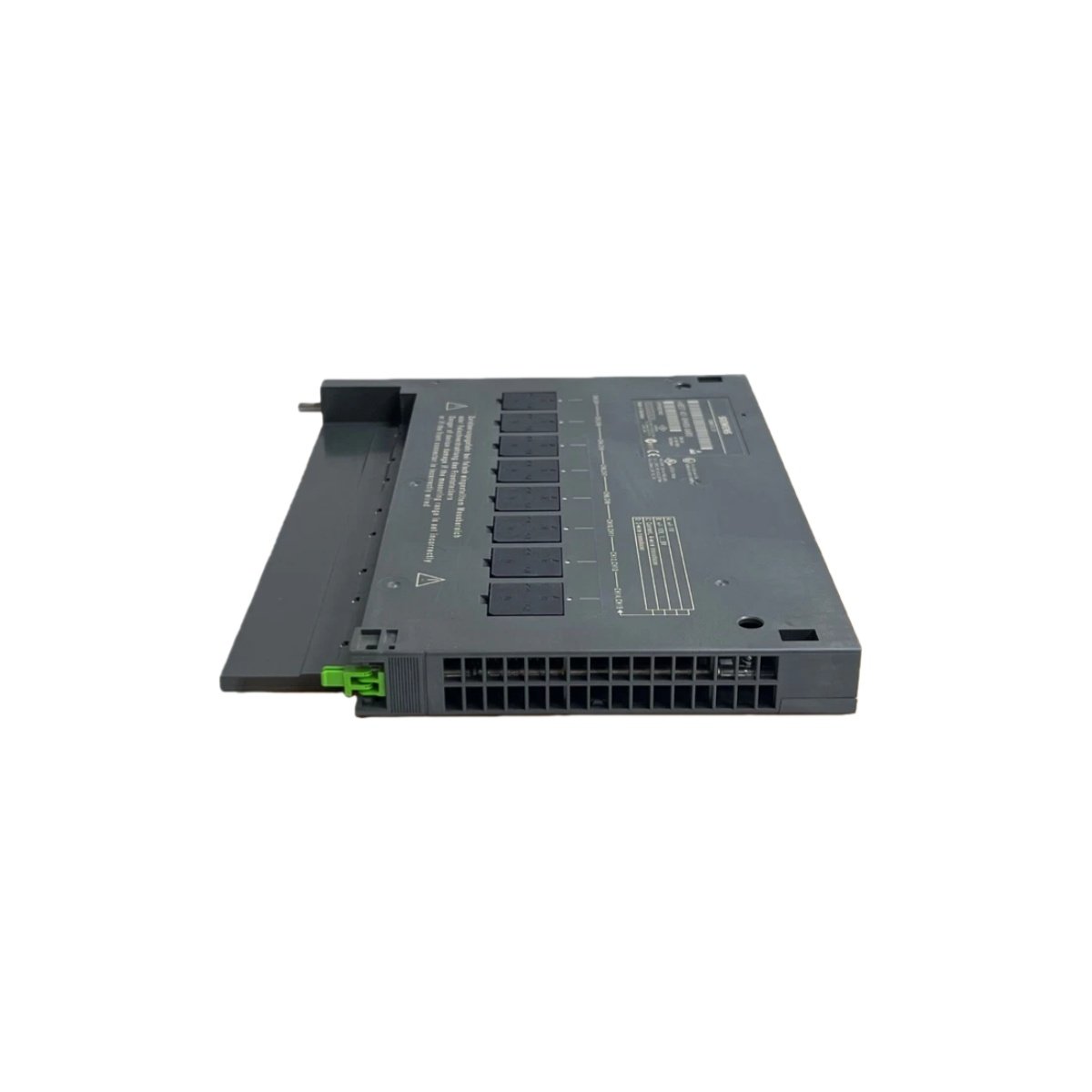

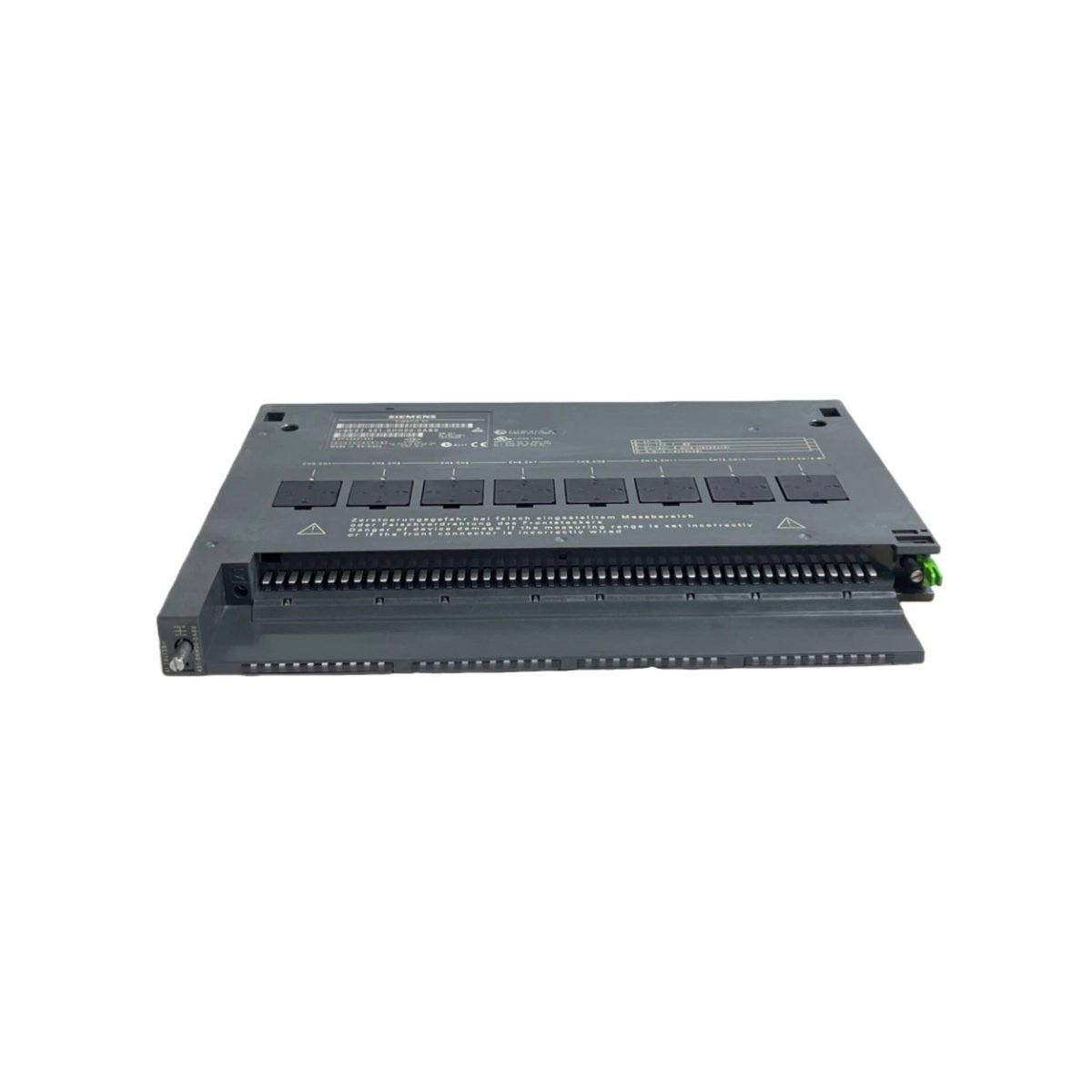

The Siemens 6ES7431-0HH00-0AB0 functions as a high-resolution analog input module for SIMATIC S7-400 automation systems. This module converts continuous process signals into digital values for controller processing. Engineers select this unit when they require accurate measurement of temperature, pressure, or flow parameters. Consequently, it provides reliable data acquisition for critical industrial processes and regulatory compliance.
Technical Specifications for the Siemens 6ES7431-0HH00-0AB0
This analog input module features robust isolation and high-resolution conversion for demanding applications. It accepts various signal types without requiring external signal conditioners. The module incorporates diagnostic functions that simplify troubleshooting and reduce system downtime.
| Specification | Details |
|---|---|
| Model Number | Siemens 6ES7431-0HH00-0AB0 |
| Product Type | Analog Input Module |
| Dimensions (H x W x D) | 290 mm x 25 mm x 210 mm |
| Weight | 0.6 kg (1.32 lbs) |
| Input Channels | 8 analog inputs, differential |
| Resolution | 13 bits plus sign |
| Input Signal Types | ±10 V, ±20 mA, 4–20 mA, 0–10 V |
| Input Impedance | 100 kΩ for voltage / 250 Ω for current |
| Measurement Principle | Integrating conversion |
| Conversion Time | 65 µs per channel typical |
| Cycle Time | 520 µs for all channels |
| Basic Error Limit | ±0.1% full scale |
| Noise Suppression | 40 dB at 50/60 Hz |
| Common Mode Rejection | >80 dB |
| Isolation Voltage | 500 V AC (channel to backplane) |
| Backplane Current | 400 mA typical |
| Power Dissipation | 4.5 W typical |
| Diagnostic Functions | Wire break, overload, parameter error |
| Diagnostic LED | SF (group error) per module |
| Mounting Style | S7-400 rack mounting |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5–95% non-condensing |
| Certifications | CE, UL, CSA, FM, ATEX |
Advanced Measurement Capabilities
The Siemens 6ES7431-0HH00-0AB0 employs integrating conversion technology that rejects noise effectively. This design ensures accurate readings even in electrically noisy industrial environments. Additionally, the module supports both voltage and current signals without hardware configuration changes. You simply configure the input type through software parameterization. The integrated diagnostics continuously monitor field wiring for open circuits and overload conditions. Therefore, operators receive immediate alerts when sensor problems occur. The fast conversion time of 65 microseconds per channel supports high-speed control applications. This performance proves essential in processes requiring rapid response to changing conditions.
System Integration and Manufacturer Context
Siemens engineered the 6ES7431-0HH00-0AB0 as part of their comprehensive SIMATIC S7-400 product family. This analog input module integrates seamlessly with Siemens controllers for centralized and distributed architectures. It works exceptionally well in process industries, power generation, and water treatment facilities. The module connects directly to standard transmitters, thermocouples, and resistance temperature detectors. You can combine multiple 6ES7431-0HH00-0AB0 modules in a single rack for high channel counts. For detailed configuration guidelines, consult the Siemens manual under the 6ES7431-0HH00-0AB0 product documentation. This module exemplifies Siemens’ commitment to precision measurement technology for industrial automation.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
