Overview

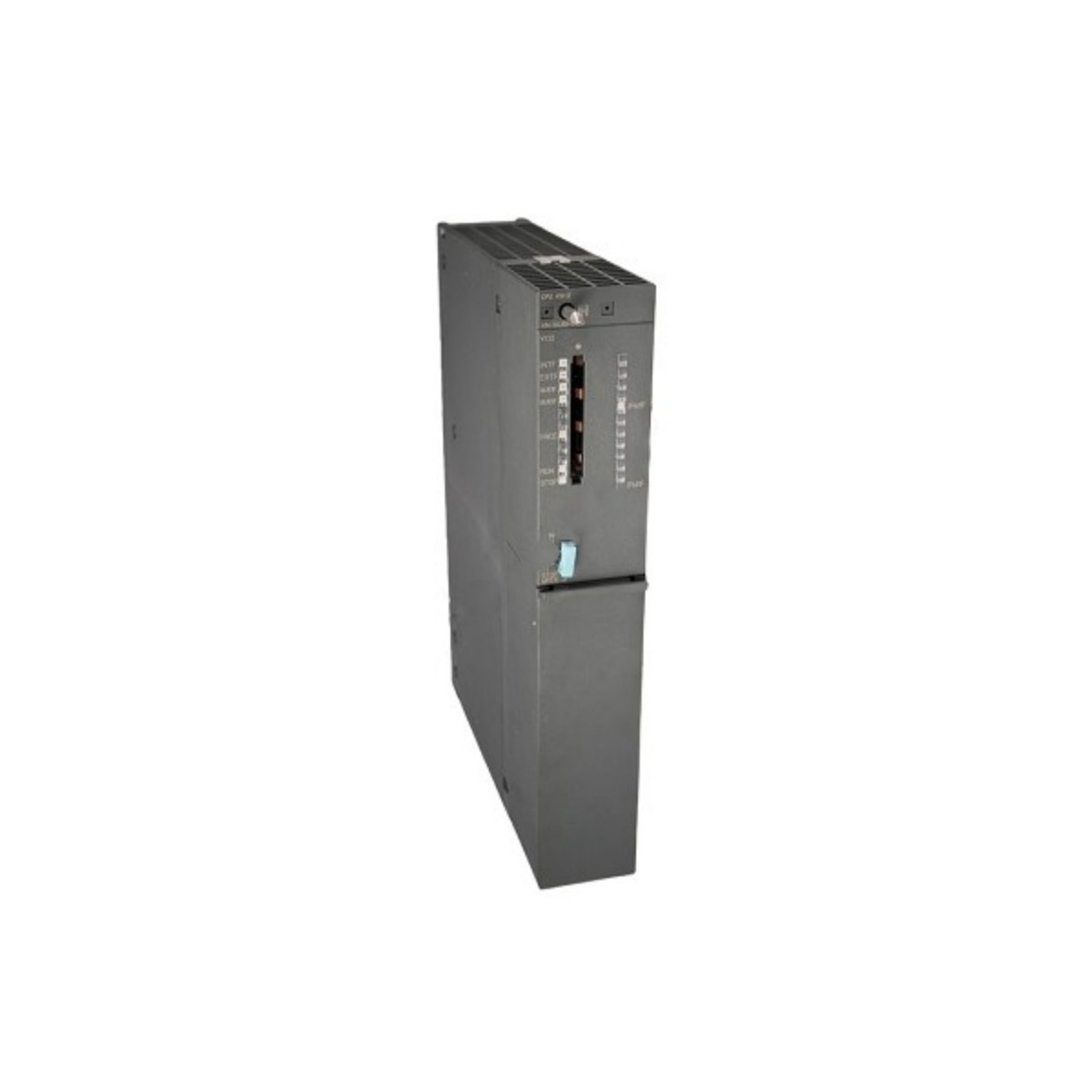

The Siemens 6ES7414-4HJ00-0AB0 CPU414H delivers robust processing for S7-400H and S7-400F/FH automation systems. Engineers can execute medium-scale programs efficiently, coordinating distributed I/O and redundant architectures seamlessly.
Performance Features
This processor module features high-speed MPI/DP interfaces and two synchronization ports, enabling scalable network integration. Its 768 KB memory allocates equally between code and process data, ensuring fast response times for industrial control applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 6ES7414-4HJ00-0AB0 |
| Series | SIMATIC S7-400H |
| CPU Type | CPU414H |
| Work Memory | 768 KB total (384 KB code + 384 KB data) |
| Communication Interfaces | 1 MPI/DP, 1 DP, 2 sync module ports |
| Supported Systems | S7-400H, S7-400F/FH |
| DB Blocks (Max) | 4,095 (DB0 reserved), 64 KB per block |
| FB Blocks (Max) | 2,048, 64 KB per block |
| FC Blocks (Max) | 2,048, 64 KB per block |
| OB Blocks (Max Size) | 64 KB |
| Nesting Depth (Per Priority) | 24 |
| Battery Backup Current | Typical 75 µA, Max 860 µA |
| External Backup Voltage | 5–15 V DC |
| Instruction Performance | Optimized for medium-scale automation tasks |
Connectivity & Integration
The 6ES7414-4HJ00-0AB0 CPU414H integrates MPI/DP, DP, and sync modules, allowing seamless connection of multiple CPUs and distributed I/O in industrial networks.
Memory & Data Management
With 768 KB memory, this CPU stores program code and process data reliably. Engineers can utilize DB, FB, FC, and OB blocks efficiently for structured and modular programming.
Battery & Backup
This CPU maintains memory using a battery backup with typical current of 75 µA and maximum 860 µA. External backup supports 5–15 V DC to preserve critical process data.
Origin, Dimensions, and Weight
- Country of Origin: Germany
- Dimensions: 23.3 × 30.4 × 6.5 cm
- Weight: 1.398 kg
Details
| Weight | 1.398 kg |
|---|---|
| Dimensions | 233 × 30.4 × 65 mm |
